Mesh9#

Meshing of a perforated plate with a structured mesh.

Mesh9
Mesh9
============= Init GMSH interface =============
Meshing with gmsh (4.989 ms)
Construct mesh object (33.966 ms)

Element type: QUAD4
Ne = 200, Nn = 240


 12 import numpy as np
 13
 14 from EasyFEA import Display, Mesher, ElemType, PyVista
 15 from EasyFEA.Geoms import Point, Circle, Points, Line, CircleArc, Contour
 16
 17 if __name__ == "__main__":
 18     dim = 2
 19
 20     if dim == 2:
 21         elemType = ElemType.QUAD4
 22     else:
 23         elemType = ElemType.HEXA8
 24
 25     Display.Clear()
 26
 27     # ----------------------------------------------
 28     # Geom
 29     # ----------------------------------------------
 30     H = 90
 31     L = 45
 32     D = 10
 33     e = 20
 34
 35     N = 5
 36     mS = (np.pi / 4 * D / 2) / N
 37
 38     # PI for Points
 39     # pi for gmsh points
 40     PC = Point(L / 2, H / 2, 0)
 41     circle = Circle(PC, D, mS)
 42
 43     P1 = Point()
 44     P2 = Point(L, 0)
 45     P3 = Point(L, H)
 46     P4 = Point(0, H)
 47     contour1 = Points(
 48         [
 49             (P3 + P2) / 2,
 50             P3,
 51             (P3 + P4) / 2,
 52             P4,
 53             (P4 + P1) / 2,
 54             P1,
 55             (P1 + P2) / 2,
 56             P2,
 57             (P3 + P2) / 2,
 58         ],
 59         mS,
 60     )
 61
 62     # ----------------------------------------------
 63     # Mesh
 64     # ----------------------------------------------
 65     mesher = Mesher(False, True, True)
 66     factory = mesher._factory
 67
 68     contours1: list[Contour] = []
 69
 70     for c in range(4):
 71         pc = circle.center
 72         contour = circle.Get_Contour()
 73         pc1 = contour.geoms[c].pt1
 74         pc2 = contour.geoms[c].pt2
 75         pc3 = contour.geoms[c].pt3
 76
 77         p1, p2, p3 = contour1.points[c * 2 : c * 2 + 3]
 78
 79         cont1 = Contour(
 80             [Line(pc1, p1), Line(p1, p2), Line(p2, pc3), CircleArc(pc3, pc1, pc)]
 81         )
 82         loop1, lines1, points1 = mesher._Loop_From_Geom(cont1)
 83
 84         cont2 = Contour(
 85             [Line(pc3, p2), Line(p2, p3), Line(p3, pc2), CircleArc(pc2, pc3, pc)]
 86         )
 87         loop2, lines2, points2 = mesher._Loop_From_Geom(cont2)
 88
 89         surf1 = factory.addSurfaceFilling(loop1)
 90         surf2 = factory.addSurfaceFilling(loop2)
 91
 92         mesher._Surfaces_Organize([surf1, surf2], elemType, True, [N] * 4)
 93
 94         contours1.extend([cont1, cont2])
 95

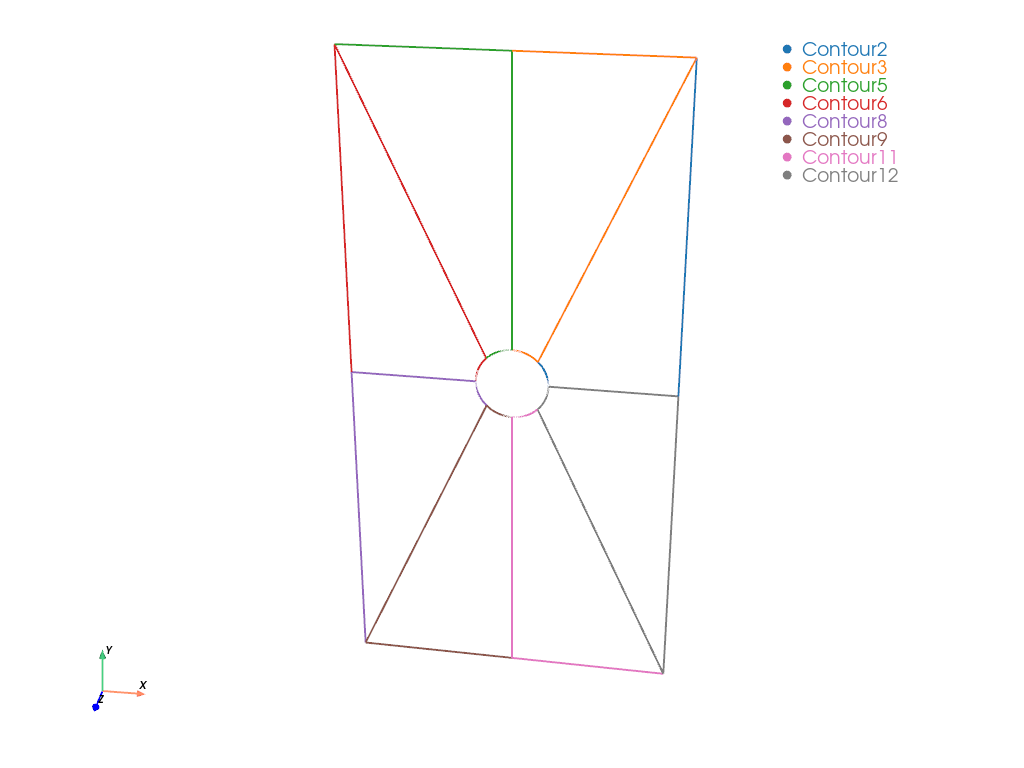

 96     PyVista.Plot_Geoms(contours1).show()
 97
 98     if dim == 3:
 99         for cont1 in contours1:
100             cont2 = cont1.copy()
101             cont2.Translate(dz=e)
102             # cont2.rotate(np.pi/8, PC.coord)
103             mesher._Link_Contours(cont1, cont2, elemType, 3, [N] * 4)
104
105     mesher._Set_PhysicalGroups()
106
107     mesher._Mesh_Generate(dim, elemType)
108
109     mesh = mesher._Mesh_Get_Mesh()
110
111     if len(mesh.orphanNodes) > 0:
112         plotter = PyVista.Plot_Nodes(mesh, mesh.orphanNodes)
113         plotter.add_title("Orphan nodes detected")
114         plotter.show()
115

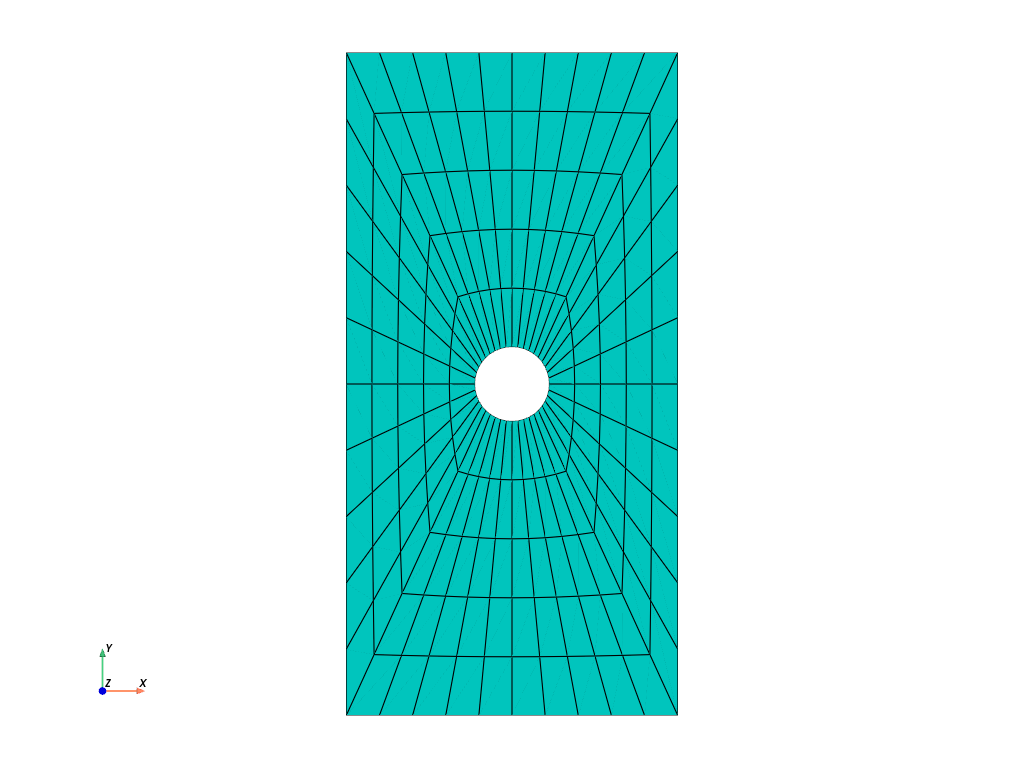

116     PyVista.Plot_Mesh(mesh).show()

Total running time of the script: (0 minutes 1.302 seconds)
