Mesh5_3D#
Mesh of a 3D cracked part.
12 import matplotlib.pyplot as plt
13
14 from EasyFEA import Display, ElemType, Models, Simulations, PyVista
15 from EasyFEA.Geoms import Point, Line, Points, Domain, Contour
16
17 if __name__ == "__main__":
18 Display.Clear()
19
20 L = 1
21 openCrack = True
22
23 contour = Domain(Point(), Point(L, L))
24
25 # ----------------------------------------------
26 # CRACK
27 # ----------------------------------------------
28
29 line1 = Line(Point(L / 4, L / 2), Point(3 * L / 4, L / 2), isOpen=openCrack)
30 line2 = Line(line1.pt2, line1.pt2 + [0, 0.25, L])
31 line3 = Line(line2.pt2, line1.pt1 + [0, 0.25, L], isOpen=openCrack)
32 line4 = Line(line3.pt2, line1.pt1)
33 crack1 = Points(
34 [
35 Point(L / 2, L / 5, L),
36 Point(2 * L / 3, L / 5, L),
37 Point(L, L / 2, L, isOpen=True),
38 ],
39 isOpen=True,
40 )
41
42 cracks = [Contour([line1, line2, line3, line4], isOpen=openCrack), crack1]
43

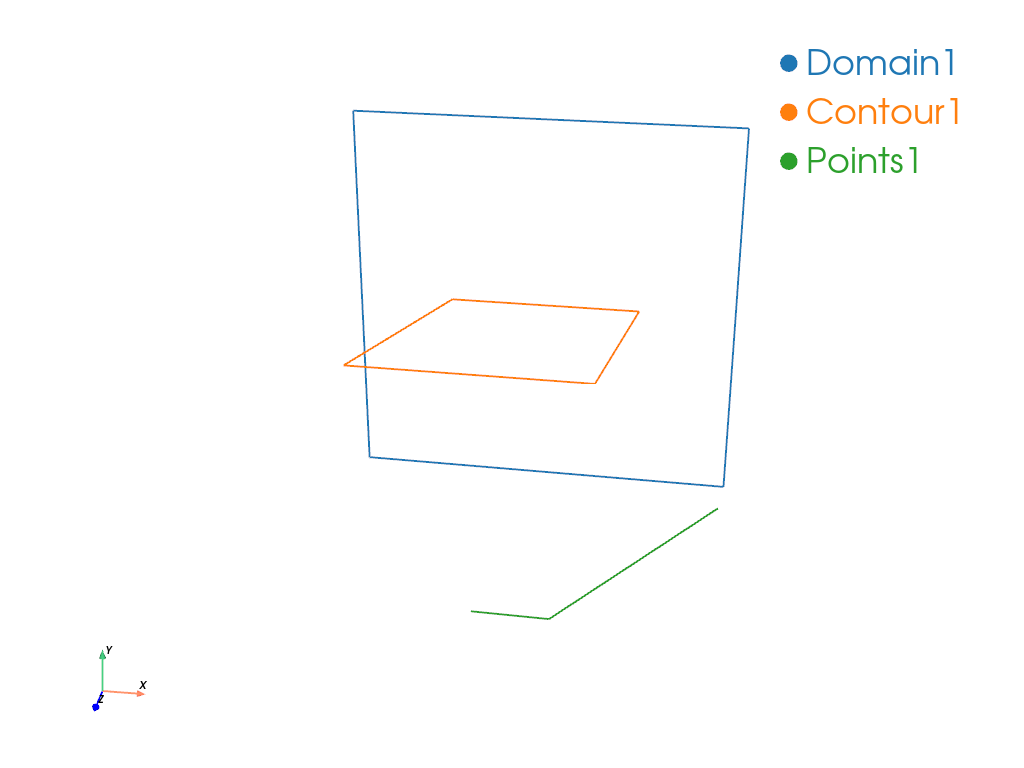

44 PyVista.Plot_Geoms([contour, *cracks]).show()
45
46 # WARNING:
47 # only works with TETRA4 and TETRA10
48 # only works with nLayers = []
49 mesh = contour.Mesh_Extrude([], [0, 0, L], [], ElemType.TETRA4, cracks)
50

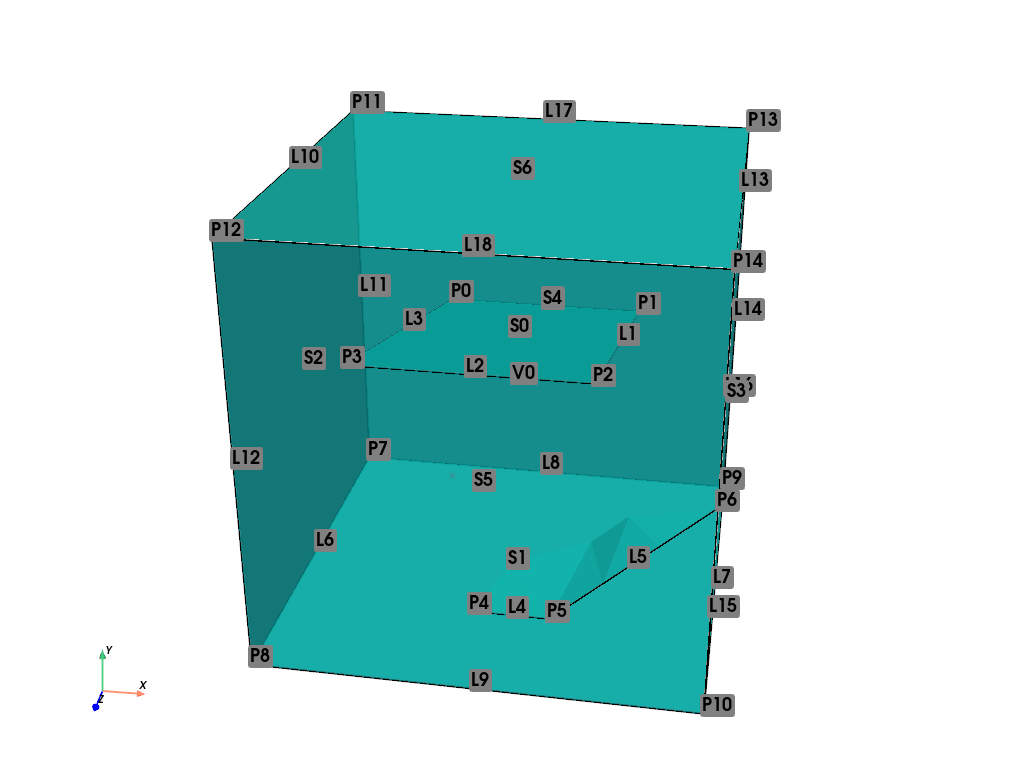

51 PyVista.Plot_Tags(mesh).show()
52
53 # ----------------------------------------------
54 # SIMU
55 # ----------------------------------------------
56
57 material = Models.Elastic.Isotropic(3)
58 simu = Simulations.Elastic(mesh, material)
59
60 simu.add_dirichlet(
61 mesh.Nodes_Conditions(lambda x, y, z: y == 0), [0] * 3, simu.Get_unknowns()
62 )
63 simu.add_dirichlet(mesh.Nodes_Conditions(lambda x, y, z: y == L), [L * 0.05], ["y"])
64 simu.Solve()

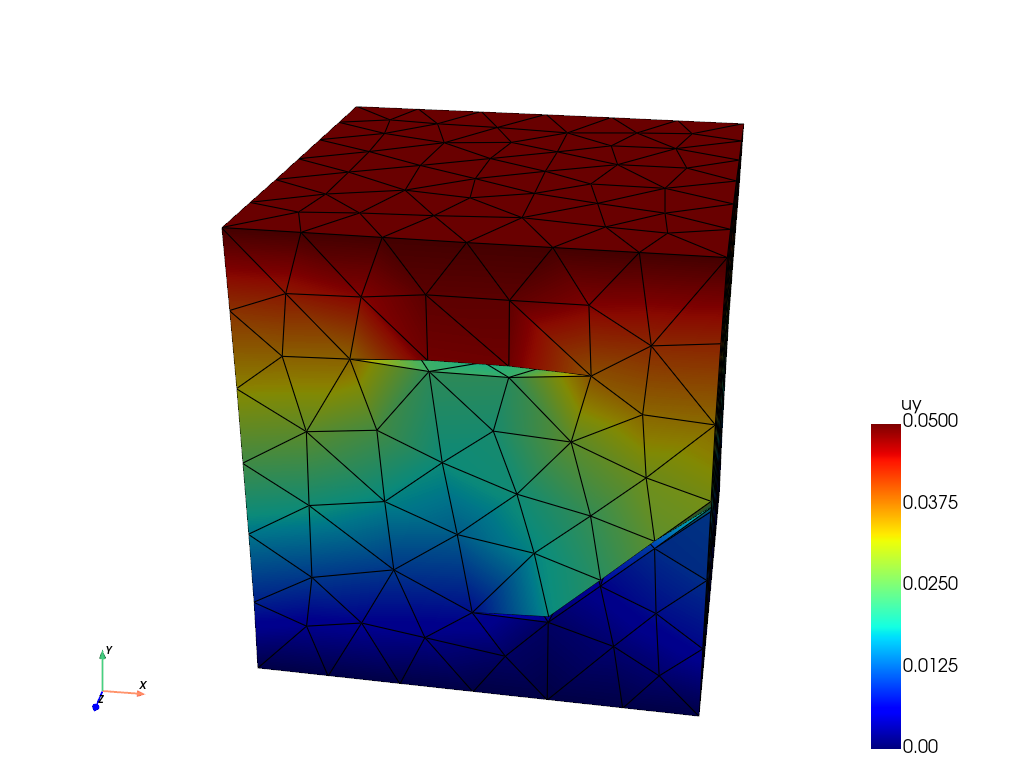

65 PyVista.Plot(simu, "uy", 1, plotMesh=True).show()
66
67 plt.show()
Total running time of the script: (0 minutes 3.418 seconds)
