Performing a ‘Hertz contact problem’ with the assumption of frictionless contact The master mesh is considered non-deformable.
WARNING#
The assumption of small displacements is highly questionable for this simulation.
Eps max = 0.38 %
Eps max = 0.76 %
Eps max = 1.15 %
Eps max = 1.76 %
Eps max = 2.20 %
Eps max = 2.63 %
Eps max = 3.58 %
Eps max = 3.79 %
Eps max = 3.99 %
Eps max = 4.19 %
Eps max = 4.38 %
Eps max = 4.58 %
Eps max = 5.03 %
Eps max = 5.53 %
Eps max = 6.02 %
Eps max = 7.10 %
Eps max = 7.49 %
Eps max = 7.92 %
Eps max = 8.36 %
Eps max = 8.98 %
Eps max = 9.61 %
Eps max = 10.24 %
Eps max = 10.87 %
Eps max = 11.50 %
Eps max = 12.12 %
Eps max = 12.75 %
Eps max = 13.38 %
Eps max = 14.01 %
Eps max = 14.64 %
Eps max = 15.26 %
==================== Mesh ====================
Element type: QUAD4
Ne = 400, Nn = 441
==================== Model ====================
Isotropic:
E = 2.10e+05, v = 0.3
planeStress = True
thickness = 3.33e+00
solver : scipy
============= Boundary Conditions =============
Unspecified.

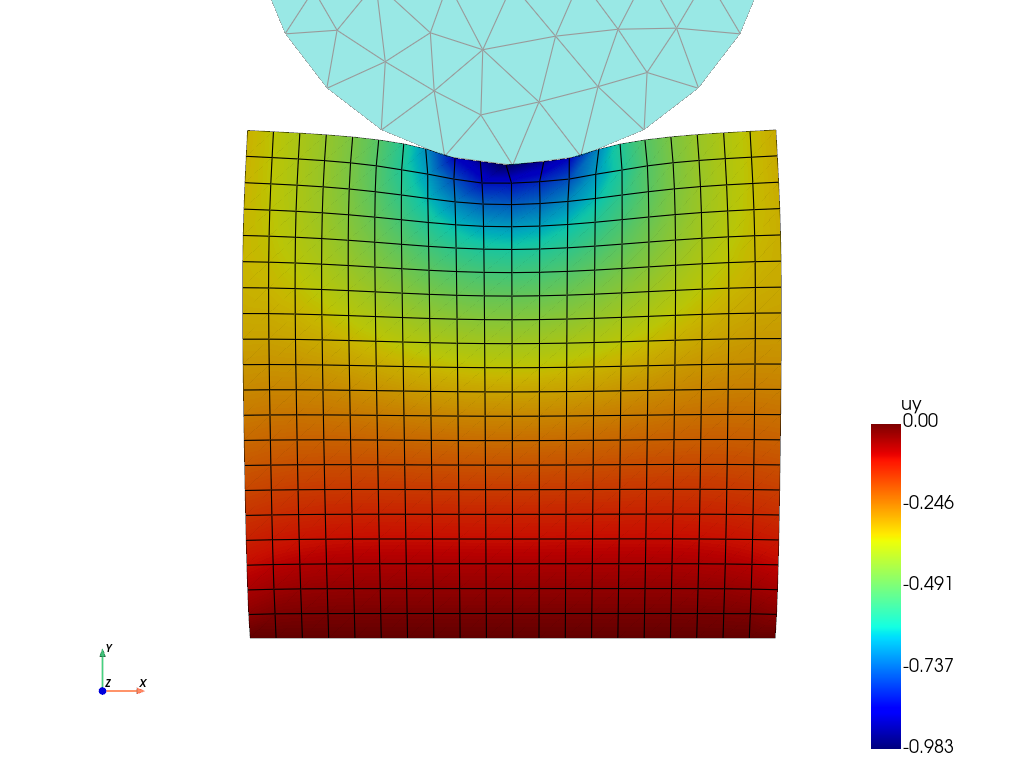

=================== Results ===================
W def = 202448.77
Svm max = 75667.12
Evm max = 46.01 %
Ux max = 1.39e-01
Ux min = -1.56e-01
Uy max = 0.00e+00
Uy min = -9.83e-01
=================== TicTac ===================
Mesh : 29.615 ms
Boundary Conditions : 562.429 µs
PostProcessing : 450.500 ms
Matrix : 27.971 ms
Solver : 346.947 ms

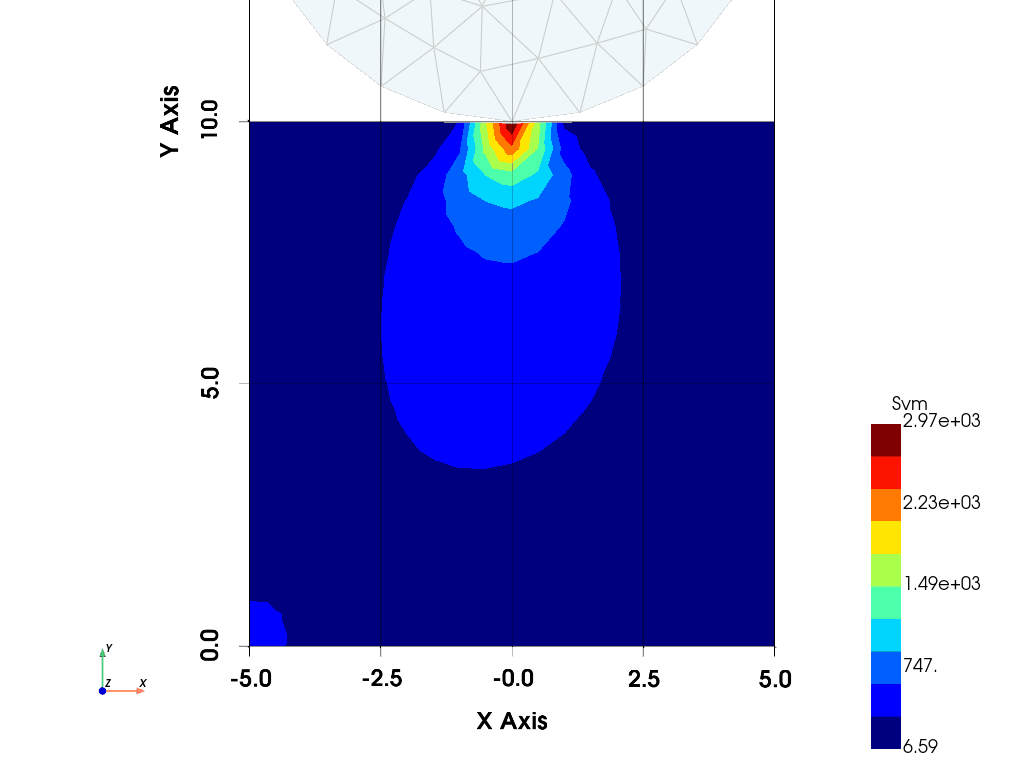

Generate movie 01/30 (3.33 %) 24.84 s
Generate movie 02/30 (6.67 %) 13.47 s
Generate movie 03/30 (10.00 %) 10.45 s
Generate movie 04/30 (13.33 %) 10.23 s
Generate movie 05/30 (16.67 %) 9.76 s
Generate movie 06/30 (20.00 %) 9.47 s
Generate movie 07/30 (23.33 %) 9.01 s
Generate movie 08/30 (26.67 %) 8.70 s
Generate movie 09/30 (30.00 %) 8.31 s
Generate movie 10/30 (33.33 %) 7.94 s
Generate movie 11/30 (36.67 %) 7.51 s
Generate movie 12/30 (40.00 %) 7.16 s
Generate movie 13/30 (43.33 %) 6.71 s
Generate movie 14/30 (46.67 %) 6.34 s
Generate movie 15/30 (50.00 %) 5.95 s
Generate movie 16/30 (53.33 %) 5.56 s
Generate movie 17/30 (56.67 %) 5.21 s
Generate movie 18/30 (60.00 %) 4.75 s
Generate movie 19/30 (63.33 %) 4.40 s
Generate movie 20/30 (66.67 %) 3.99 s
Generate movie 21/30 (70.00 %) 3.60 s
Generate movie 22/30 (73.33 %) 3.19 s
Generate movie 23/30 (76.67 %) 2.81 s
Generate movie 24/30 (80.00 %) 2.39 s
Generate movie 25/30 (83.33 %) 2.00 s
Generate movie 26/30 (86.67 %) 1.61 s
Generate movie 27/30 (90.00 %) 1.20 s
Generate movie 28/30 (93.33 %) 803.38 ms
Generate movie 29/30 (96.67 %) 406.16 ms
Generate movie 30/30 (100.00 %) 0.00 µs
16 # TODO: Compare results with analytical values ?
