Elas8#

A cantilever beam undergoing dynamic bending deformation.

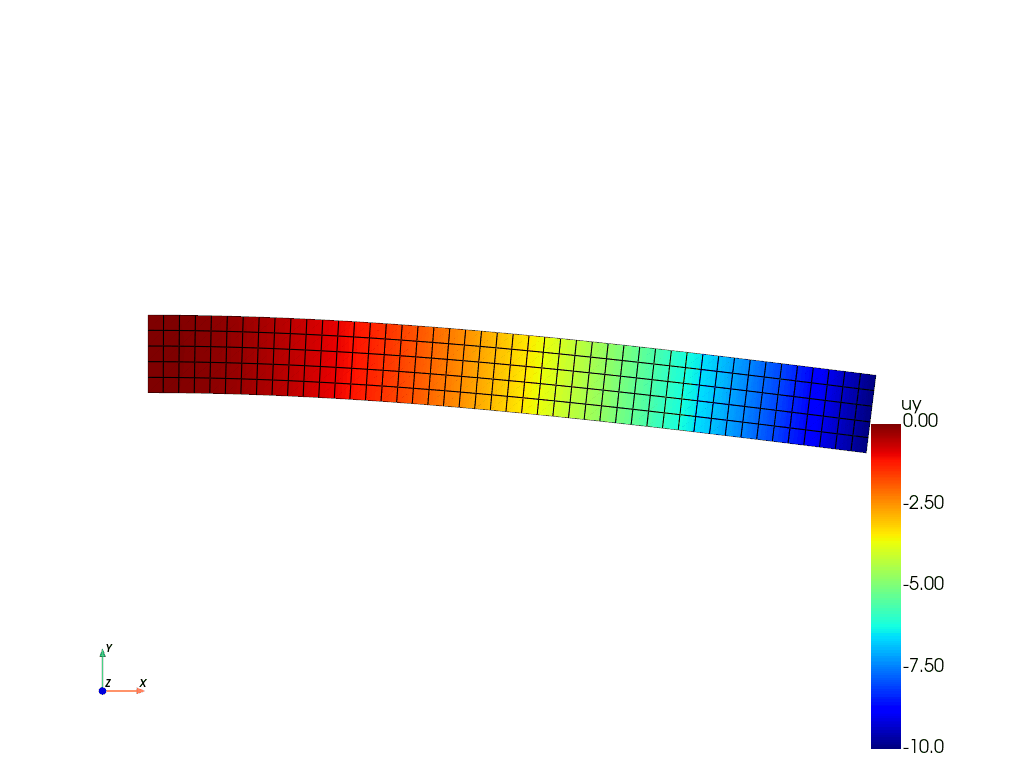

Elas8

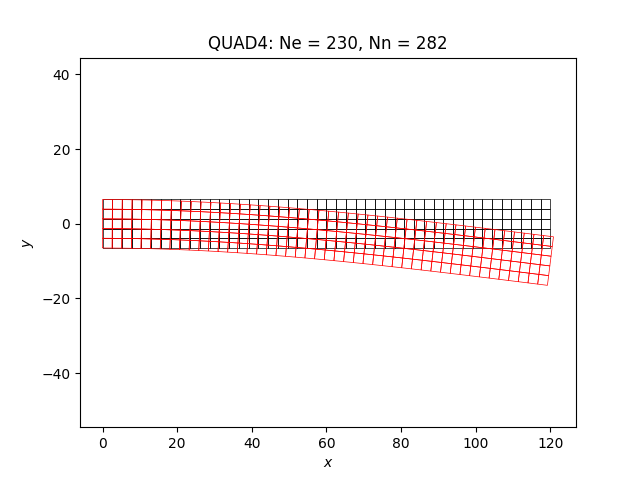

  • QUAD4: Ne = 230, Nn = 282

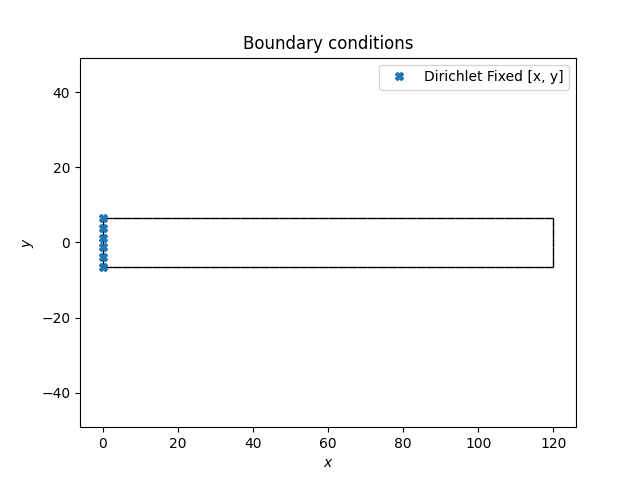

  • Boundary conditions

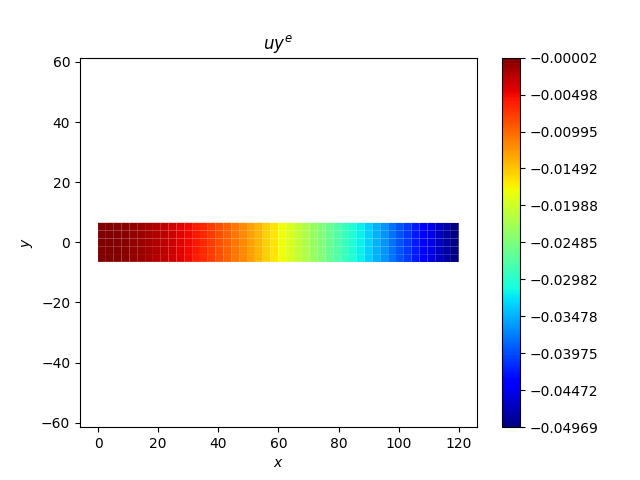

  • $uy^{e}$

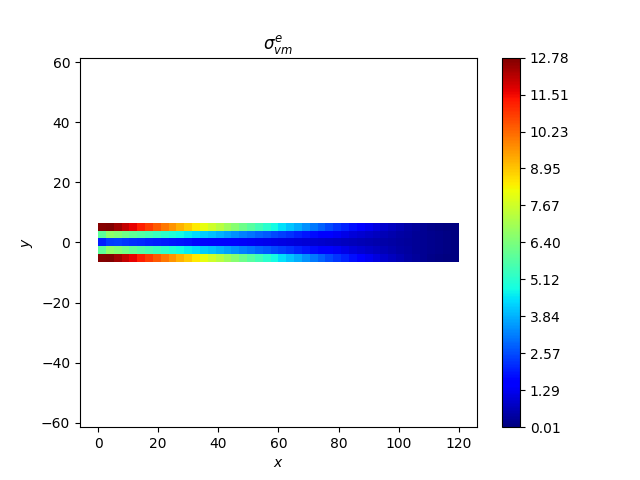

  • $\sigma_{vm}^{e}$
0.000 s
0.010 s
0.020 s
0.030 s
0.040 s
0.050 s
0.060 s
0.070 s
0.080 s
0.090 s
0.100 s
0.110 s
0.120 s
0.130 s
0.140 s
0.150 s
0.160 s
0.170 s
0.180 s
0.190 s
0.200 s
0.210 s
0.220 s
0.230 s
0.240 s
0.250 s
0.260 s
0.270 s
0.280 s
0.290 s
0.300 s
0.310 s
0.320 s
0.330 s
0.340 s
0.350 s
0.360 s
0.370 s
0.380 s
0.390 s
0.400 s
0.410 s
0.420 s
0.430 s
0.440 s
0.450 s
0.460 s
0.470 s
0.480 s
0.490 s
0.500 s
Generate movie 01/52 (1.92 %) 10.17 s
Generate movie 02/52 (3.85 %) 7.90 s
Generate movie 03/52 (5.77 %) 7.70 s
Generate movie 04/52 (7.69 %) 7.54 s
Generate movie 05/52 (9.62 %) 7.35 s
Generate movie 06/52 (11.54 %) 7.16 s
Generate movie 07/52 (13.46 %) 7.05 s
Generate movie 08/52 (15.38 %) 6.90 s
Generate movie 09/52 (17.31 %) 6.69 s
Generate movie 10/52 (19.23 %) 6.61 s
Generate movie 11/52 (21.15 %) 6.41 s
Generate movie 12/52 (23.08 %) 6.26 s
Generate movie 13/52 (25.00 %) 5.93 s
Generate movie 14/52 (26.92 %) 6.05 s
Generate movie 15/52 (28.85 %) 5.84 s
Generate movie 16/52 (30.77 %) 5.71 s
Generate movie 17/52 (32.69 %) 5.54 s
Generate movie 18/52 (34.62 %) 5.39 s
Generate movie 19/52 (36.54 %) 5.24 s
Generate movie 20/52 (38.46 %) 5.10 s
Generate movie 21/52 (40.38 %) 4.93 s
Generate movie 22/52 (42.31 %) 4.75 s
Generate movie 23/52 (44.23 %) 4.63 s
Generate movie 24/52 (46.15 %) 4.45 s
Generate movie 25/52 (48.08 %) 4.33 s
Generate movie 26/52 (50.00 %) 4.13 s
Generate movie 27/52 (51.92 %) 3.97 s
Generate movie 28/52 (53.85 %) 3.81 s
Generate movie 29/52 (55.77 %) 3.64 s
Generate movie 30/52 (57.69 %) 3.48 s
Generate movie 31/52 (59.62 %) 3.31 s
Generate movie 32/52 (61.54 %) 3.18 s
Generate movie 33/52 (63.46 %) 2.99 s
Generate movie 34/52 (65.38 %) 2.83 s
Generate movie 35/52 (67.31 %) 2.73 s
Generate movie 36/52 (69.23 %) 2.55 s
Generate movie 37/52 (71.15 %) 2.38 s
Generate movie 38/52 (73.08 %) 2.23 s
Generate movie 39/52 (75.00 %) 2.07 s
Generate movie 40/52 (76.92 %) 1.91 s
Generate movie 41/52 (78.85 %) 1.75 s
Generate movie 42/52 (80.77 %) 1.60 s
Generate movie 43/52 (82.69 %) 1.43 s
Generate movie 44/52 (84.62 %) 1.28 s
Generate movie 45/52 (86.54 %) 1.13 s
Generate movie 46/52 (88.46 %) 963.43 ms
Generate movie 47/52 (90.38 %) 802.66 ms
Generate movie 48/52 (92.31 %) 641.17 ms
Generate movie 49/52 (94.23 %) 478.02 ms
Generate movie 50/52 (96.15 %) 319.54 ms
Generate movie 51/52 (98.08 %) 157.74 ms
Generate movie 52/52 (100.00 %) 0.00 µs


==================== Mesh ====================

Element type: QUAD4
Ne = 230, Nn = 282

==================== Model ====================

Isotropic:
E = 2.10e+05, v = 0.3
planeStress = True
thickness = 1.30e+01

solver : scipy

============= Boundary Conditions =============

Unspecified.

=================== Results ===================


W def = 1.15

Svm max = 12.78

Evm max = 0.01 %

Ux max = 3.73e-03
Ux min = -3.73e-03

Uy max = 0.00e+00
Uy min = -5.04e-02

=================== TicTac ===================

Mesh : 9.973 ms
Boundary Conditions : 25.749 µs
Matrix : 9.570 ms
Solver : 247.986 ms
Display : 35.676 ms
PyVista_Interface : 13.381 s
PostProcessing : 924.826 µs


 12 import matplotlib.pyplot as plt
 13
 14 from EasyFEA import Display, Folder, Models, ElemType, Simulations, PyVista, Paraview
 15 from EasyFEA.Geoms import Domain
 16
 17 if __name__ == "__main__":
 18     Display.Clear()
 19
 20     # ----------------------------------------------
 21     # Configuration
 22     # ----------------------------------------------
 23     dim = 2
 24
 25     # outputs
 26     folder = Folder.Results_Dir()
 27     makeParaview = False
 28     makeMovie = True
 29     result = "uy"
 30
 31     # geom
 32     L = 120  # mm
 33     h = 13
 34     b = 13
 35
 36     # time
 37     Tmax = 0.5
 38     N = 50
 39     dt = Tmax / N
 40     time = -dt
 41
 42     # Dumping
 43     coefM = 1e-3
 44     coefK = 1e-3
 45
 46     # ----------------------------------------------
 47     # Mesh
 48     # ----------------------------------------------
 49     meshSize = h / 5
 50
 51     if dim == 2:
 52         domain = Domain((0, -h / 2), (L, h / 2), meshSize)
 53         mesh = domain.Mesh_2D([], ElemType.QUAD4, isOrganised=True)
 54
 55         area = mesh.area - L * h
 56
 57     elif dim == 3:
 58         domain = Domain((0, -h / 2, -b / 2), (L, h / 2, -b / 2), meshSize=meshSize)
 59         mesh = domain.Mesh_Extrude([], [0, 0, b], [3], ElemType.HEXA8, isOrganised=True)
 60
 61         volume = mesh.volume - L * b * h
 62         area = mesh.area - (L * h * 4 + 2 * b * h)
 63
 64     nodes_0 = mesh.Nodes_Conditions(lambda x, y, z: x == 0)
 65     nodes_L = mesh.Nodes_Conditions(lambda x, y, z: x == L)
 66     nodes_h = mesh.Nodes_Conditions(lambda x, y, z: y == h / 2)
 67
 68     # ----------------------------------------------
 69     # Simulation
 70     # ----------------------------------------------
 71
 72     material = Models.Elastic.Isotropic(dim, thickness=b)
 73     simu = Simulations.Elastic(mesh, material)
 74     simu.rho = 8100 * 1e-9
 75
 76     # static simulation
 77     simu.Bc_Init()
 78     simu.add_dirichlet(nodes_0, [0] * dim, simu.Get_unknowns(), description="Fixed")
 79     simu.add_dirichlet(nodes_L, [-10], ["y"], description="dep")
 80     simu.Solve()
 81     simu.Save_Iter()
 82     Display.Plot_Mesh(simu, deformFactor=1)
 83
 84     # dynamic simulation
 85     simu.Solver_Set_Hyperbolic_Algorithm(dt)
 86     simu.Set_Rayleigh_Damping_Coefs(coefM=coefM, coefK=coefK)
 87
 88     simu.Bc_Init()
 89     simu.add_dirichlet(nodes_0, [0] * dim, simu.Get_unknowns(), description="Fixed")
 90
 91     while time <= Tmax:
 92         time += dt
 93
 94         simu.Solve()
 95         simu.Save_Iter()
 96
 97         print(f"{time:.3f} s", end="\r")
 98
 99     # ----------------------------------------------
100     # Results
101     # ----------------------------------------------
102
103     Display.Plot_BoundaryConditions(simu)
104
105     if makeParaview:
106         Paraview.Save_simu(simu, folder)
107
108     if makeMovie:
109         PyVista.Movie_simu(
110             simu,
111             f"{result}",
112             folder,
113             f"{result}.gif",
114             deformFactor=1,
115             plotMesh=True,
116         )
117
118     print(simu)
119     Display.Plot_Result(simu, f"{result}", deformFactor=1, nodeValues=False)
120     Display.Plot_Result(simu, "Svm", plotMesh=False, nodeValues=False)
121
122     plt.show()

Total running time of the script: (0 minutes 14.010 seconds)
