Mesh1_3D

Meshing a 3D domain.

Static Scene

Interactive Scene

Static Scene

Interactive Scene

from EasyFEA import Display, ElemType, PyVista
from EasyFEA.Geoms import Point, Domain

if __name__ == "__main__":
    Display.Clear()

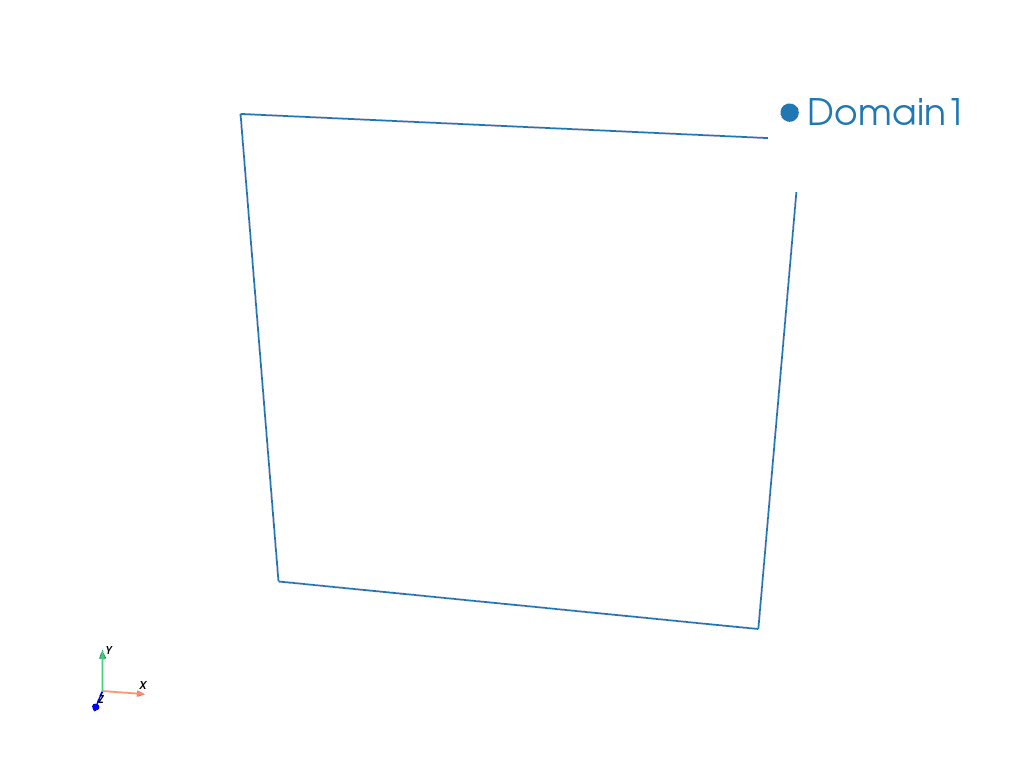

    contour = Domain((0, 0), Point(1, 1))
    PyVista.Plot_Geoms(contour).show()

    # "TETRA4", "TETRA10", "HEXA8", "HEXA20", "HEXA27", "PRISM6", "PRISM15", "PRISM18"
    elemType = ElemType.HEXA8

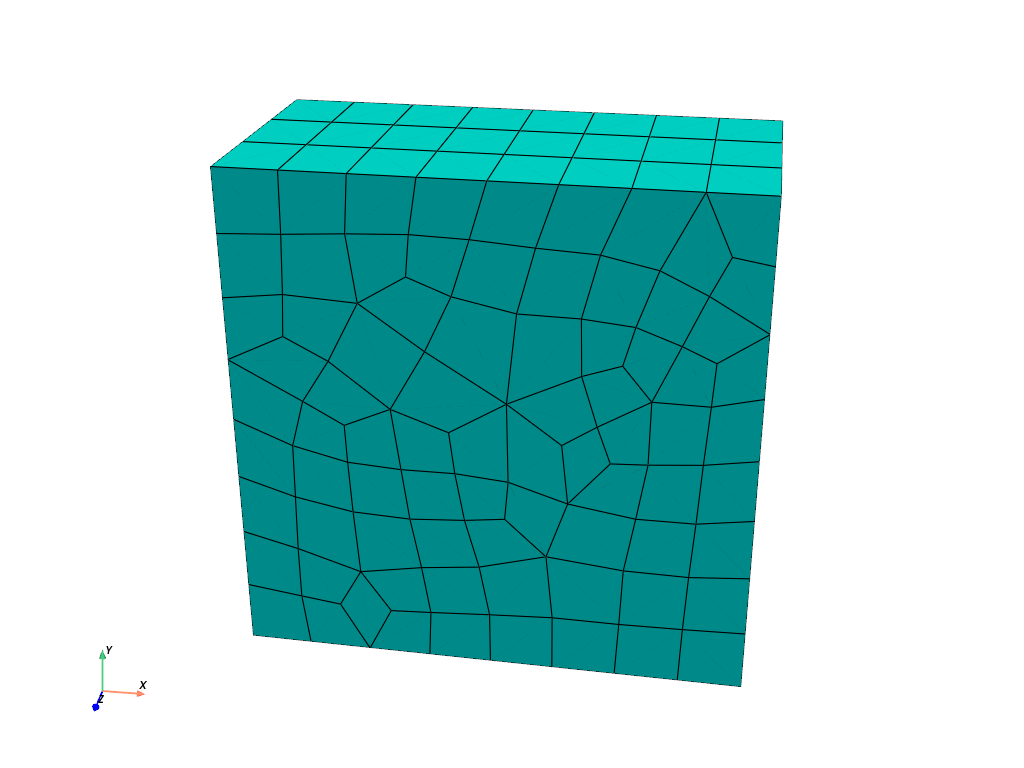

    mesh = contour.Mesh_Extrude([], [0, 0, 0.5], [3], elemType)
    PyVista.Plot_Mesh(mesh).show()
