Hyperelas1

A cantilever beam undergoing bending deformation.

Static Scene

Interactive Scene

Static Scene

Interactive Scene

===== hyperelastic problem at iteration 0 =====
At Newton iteration 1 norm is 2.411781112751e+02
At Newton iteration 2 norm is 4.820799085387e+03
At Newton iteration 3 norm is 3.705632240162e-01
At Newton iteration 4 norm is 1.403280055455e-08

from EasyFEA import Display, ElemType, Models, Simulations, PyVista
from EasyFEA.Geoms import Domain

if __name__ == "__main__":
    Display.Clear()

    # ----------------------------------------------
    # Configuration
    # ----------------------------------------------

    # geom
    L = 120
    h = 13

    # model
    lmbda = 121153.84615384616  # Mpa
    mu = 80769.23076923077
    rho = 7850 * 1e-9  # kg/mm3

    # ----------------------------------------------
    # Mesh
    # ----------------------------------------------
    meshSize = h / 3

    contour = Domain((0, 0), (L, h), meshSize)

    mesh = contour.Mesh_Extrude(
        [], [0, 0, h], [h / meshSize], ElemType.HEXA20, isOrganised=True
    )
    nodesX0 = mesh.Nodes_Conditions(lambda x, y, z: x == 0)
    nodesXL = mesh.Nodes_Conditions(lambda x, y, z: x == L)

    # ----------------------------------------------
    # Simulation
    # ----------------------------------------------

    mat = Models.HyperElastic.SaintVenantKirchhoff(3, lmbda, mu)

    simu = Simulations.HyperElastic(mesh, mat)

    simu.add_dirichlet(nodesX0, [0, 0, 0], simu.Get_unknowns())
    simu.add_volumeLoad(mesh.nodes, [-rho * 9.81], ["y"])
    simu.add_surfLoad(nodesXL, [-800 / h / h], ["y"])

    simu.Solve()

    # ----------------------------------------------
    # Results
    # ----------------------------------------------

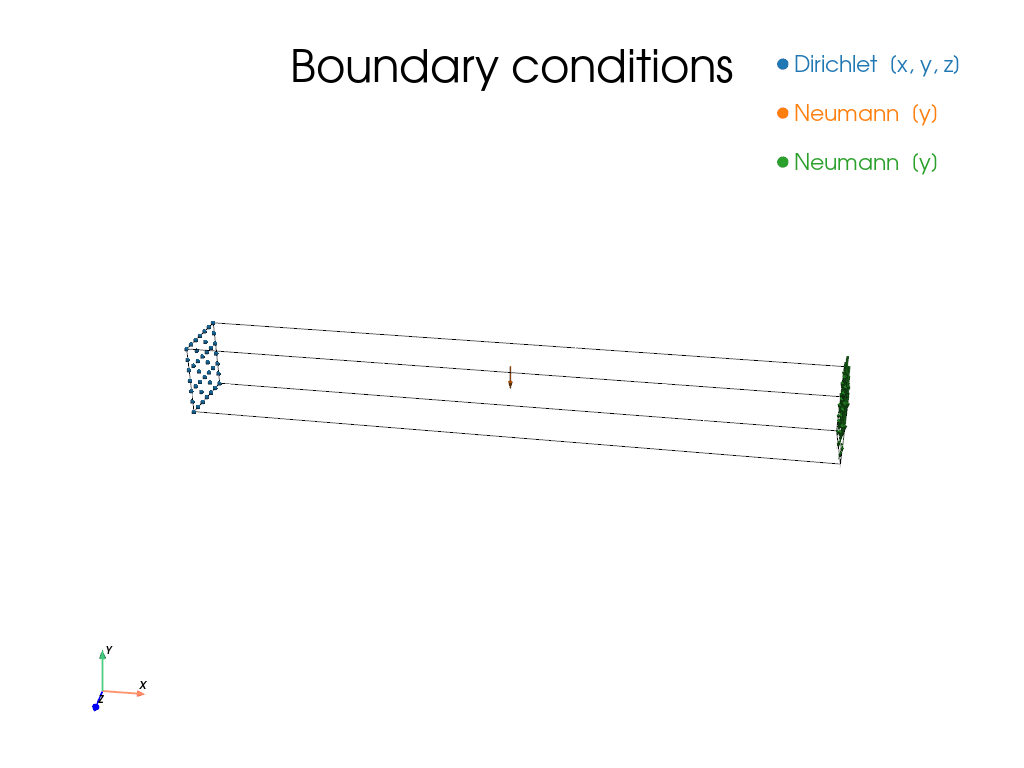

    PyVista.Plot_BoundaryConditions(simu).show()

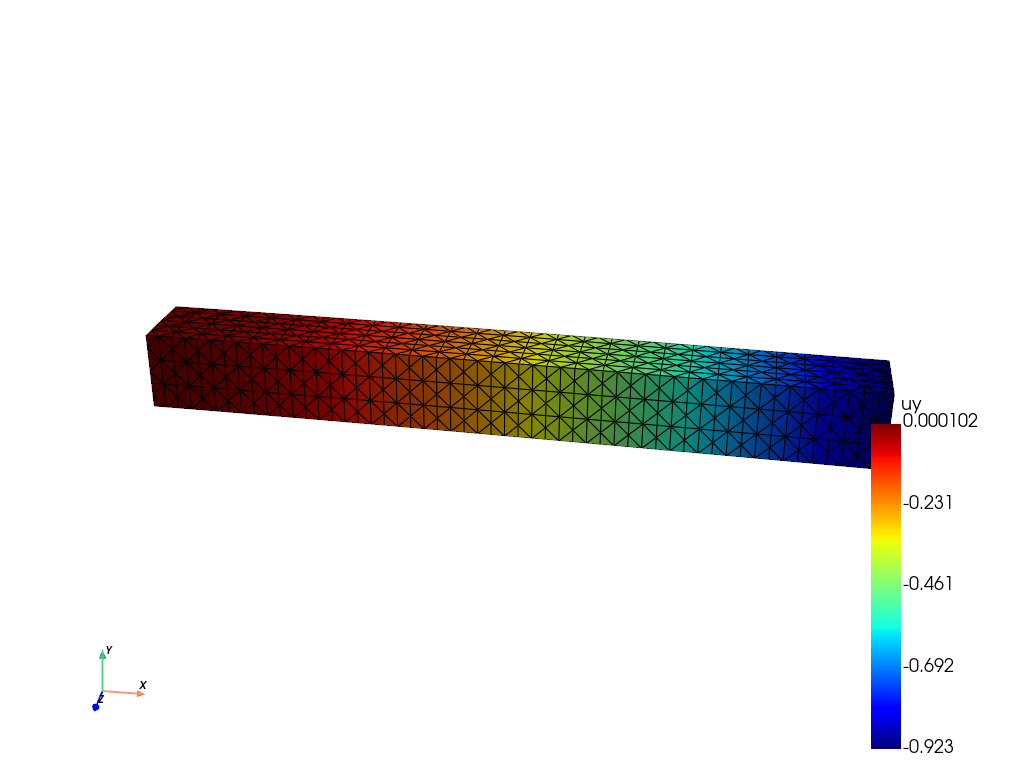

    PyVista.Plot(simu, "uy", 1, plotMesh=True).show()
