Hyperelas4

A cantilever beam undergoing bending deformation in dynamic.

Static Scene

Interactive Scene

Static Scene

Interactive Scene

===== hyperelastic problem at iteration 0 =====
At Newton iteration 1 norm is 1.356606783020e+07
At Newton iteration 2 norm is 8.948257279341e+05
At Newton iteration 3 norm is 1.407693457908e+04
At Newton iteration 4 norm is 1.478558937274e+02
At Newton iteration 5 norm is 1.269510032835e-01
At Newton iteration 6 norm is 1.979168689955e-08


===== hyperelastic problem at iteration 1 =====
At Newton iteration 1 norm is 4.990598608386e+04
At Newton iteration 2 norm is 5.914349401053e+03
At Newton iteration 3 norm is 1.785050985512e+01
At Newton iteration 4 norm is 3.982566134905e-03
At Newton iteration 5 norm is 1.309176479979e-08


===== hyperelastic problem at iteration 2 =====
At Newton iteration 1 norm is 4.880150591255e+03
At Newton iteration 2 norm is 3.617888922672e+04
At Newton iteration 3 norm is 2.402653919204e+01
At Newton iteration 4 norm is 8.577990689806e-05
At Newton iteration 5 norm is 1.281955262370e-08


===== hyperelastic problem at iteration 3 =====
At Newton iteration 1 norm is 8.757766699363e+03
At Newton iteration 2 norm is 6.853710531265e+04
At Newton iteration 3 norm is 7.071966685157e+01
At Newton iteration 4 norm is 1.164578294936e-03
At Newton iteration 5 norm is 1.077751593398e-08


===== hyperelastic problem at iteration 4 =====
At Newton iteration 1 norm is 1.114866961567e+04
At Newton iteration 2 norm is 1.094117410401e+05
At Newton iteration 3 norm is 1.802443784399e+02
At Newton iteration 4 norm is 2.611953537989e-02
At Newton iteration 5 norm is 1.325490296439e-08


===== hyperelastic problem at iteration 5 =====
At Newton iteration 1 norm is 1.150207613286e+04
At Newton iteration 2 norm is 1.565449382839e+05
At Newton iteration 3 norm is 4.079575010993e+02
At Newton iteration 4 norm is 1.065486415489e-02
At Newton iteration 5 norm is 1.323487867599e-08


===== hyperelastic problem at iteration 6 =====
At Newton iteration 1 norm is 9.850216205020e+03
At Newton iteration 2 norm is 1.056572558409e+05
At Newton iteration 3 norm is 1.831136646683e+02
At Newton iteration 4 norm is 5.726681423849e-02
At Newton iteration 5 norm is 2.584015871309e-08


===== hyperelastic problem at iteration 7 =====
At Newton iteration 1 norm is 6.622311650215e+03
At Newton iteration 2 norm is 3.177721060201e+04
At Newton iteration 3 norm is 1.440548018725e+01
At Newton iteration 4 norm is 1.096748749916e-04
At Newton iteration 5 norm is 1.311524173363e-08

Generate movie 1/8 (12.50 %) 898.68 ms
Generate movie 2/8 (25.00 %) 678.67 ms
Generate movie 3/8 (37.50 %) 543.04 ms
Generate movie 4/8 (50.00 %) 433.42 ms
Generate movie 5/8 (62.50 %) 326.99 ms
Generate movie 6/8 (75.00 %) 224.64 ms
Generate movie 7/8 (87.50 %) 110.51 ms
Generate movie 8/8 (100.00 %) 0.00 µs

from EasyFEA import Terminal, Folder, ElemType, Models, Simulations, PyVista
from EasyFEA.Geoms import Domain

if __name__ == "__main__":
    Terminal.Clear()

    # ----------------------------------------------
    # Configuration
    # ----------------------------------------------

    # outputs
    folder = Folder.Results_Dir()
    makeMovie = True
    result = "uy"

    # geom
    L = 120
    h = 13

    # model
    lmbda = 121153.84615384616  # Mpa
    mu = 80769.23076923077

    # ----------------------------------------------
    # Mesh
    # ----------------------------------------------
    meshSize = h / 3

    contour = Domain((0, 0), (L, h), meshSize)

    mesh = contour.Mesh_Extrude(
        [], [0, 0, h], [h / meshSize], ElemType.HEXA8, isOrganised=True
    )
    nodesX0 = mesh.Nodes_Conditions(lambda x, y, z: x == 0)
    nodesXL = mesh.Nodes_Conditions(lambda x, y, z: x == L)

    # ----------------------------------------------
    # Simulation
    # ----------------------------------------------

    mat = Models.HyperElastic.SaintVenantKirchhoff(3, lmbda, mu)

    simu = Simulations.HyperElastic(mesh, mat)

    simu.add_dirichlet(nodesX0, [0, 0, 0], simu.Get_unknowns())
    simu.add_dirichlet(nodesXL, [-h], ["y"])

    # static
    simu.Solve()
    simu.Save_Iter()

    # dynamic
    T = 7
    dt = T / 7
    simu.Bc_Init()
    simu.Solver_Set_Hyperbolic_Algorithm(dt)
    simu.add_dirichlet(nodesX0, [0, 0, 0], simu.Get_unknowns())

    for _ in range(int(T / dt)):
        simu.Solve()
        simu.Save_Iter()

    # ----------------------------------------------
    # Results
    # ----------------------------------------------

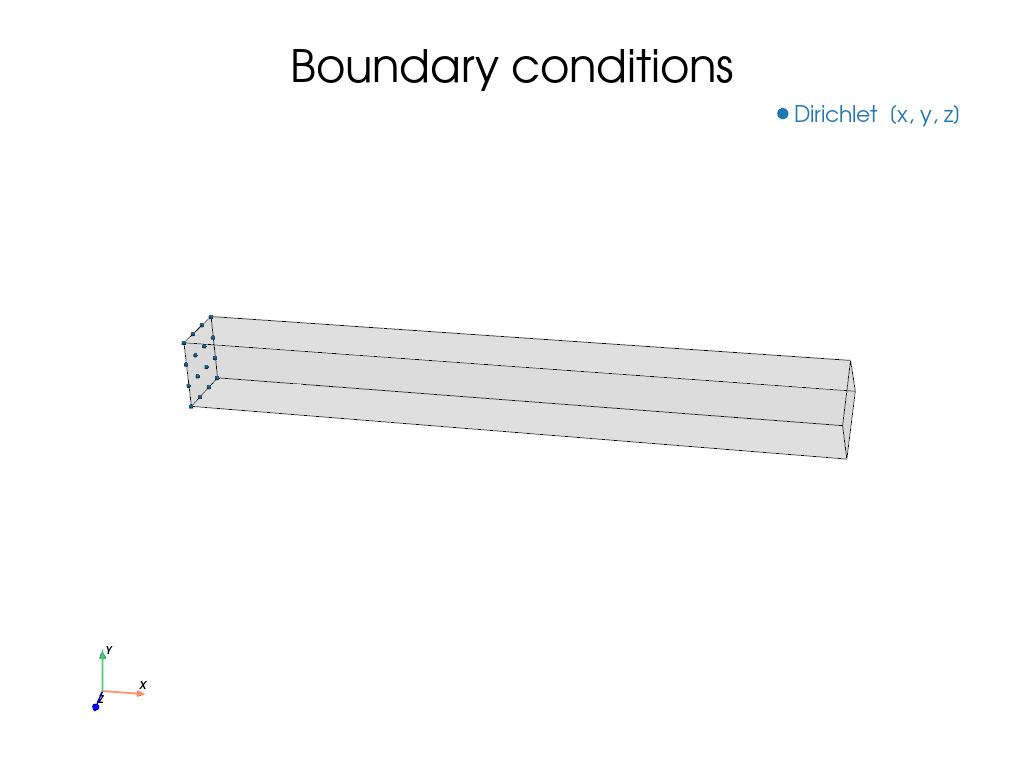

    PyVista.Plot_BoundaryConditions(simu).show()

    if makeMovie:
        PyVista.Movie_simu(
            simu, "uy", folder, "Hyperelas4.gif", deformFactor=1, plotMesh=True
        )

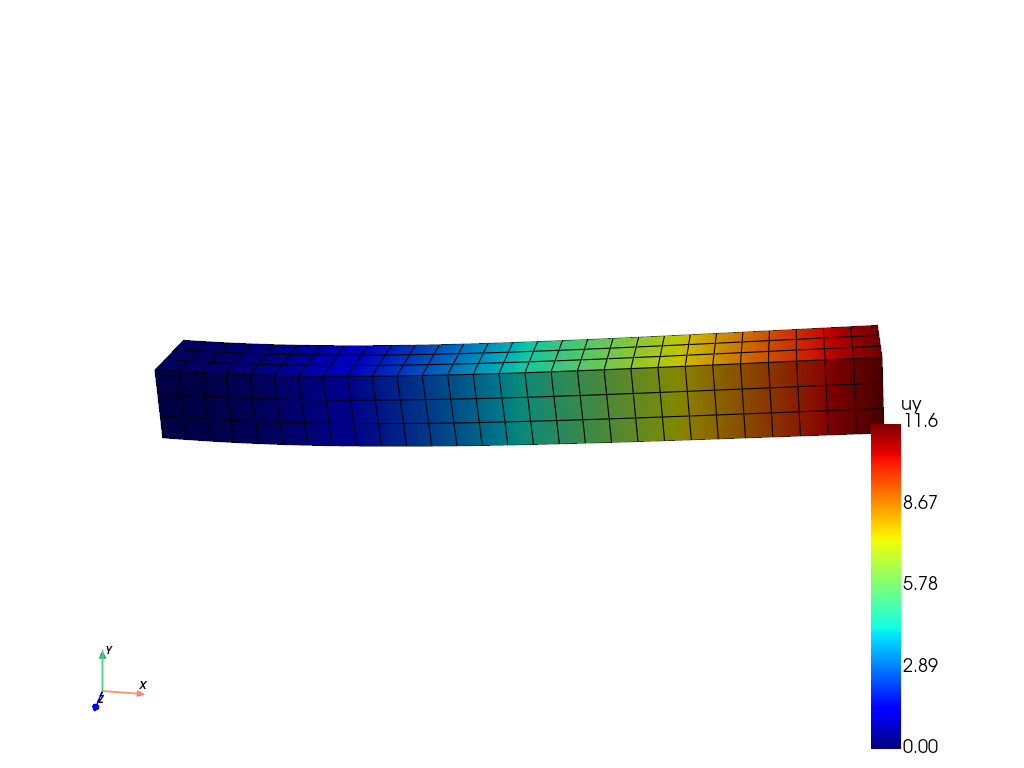

    PyVista.Plot(simu, "uy", 1, plotMesh=True).show()
