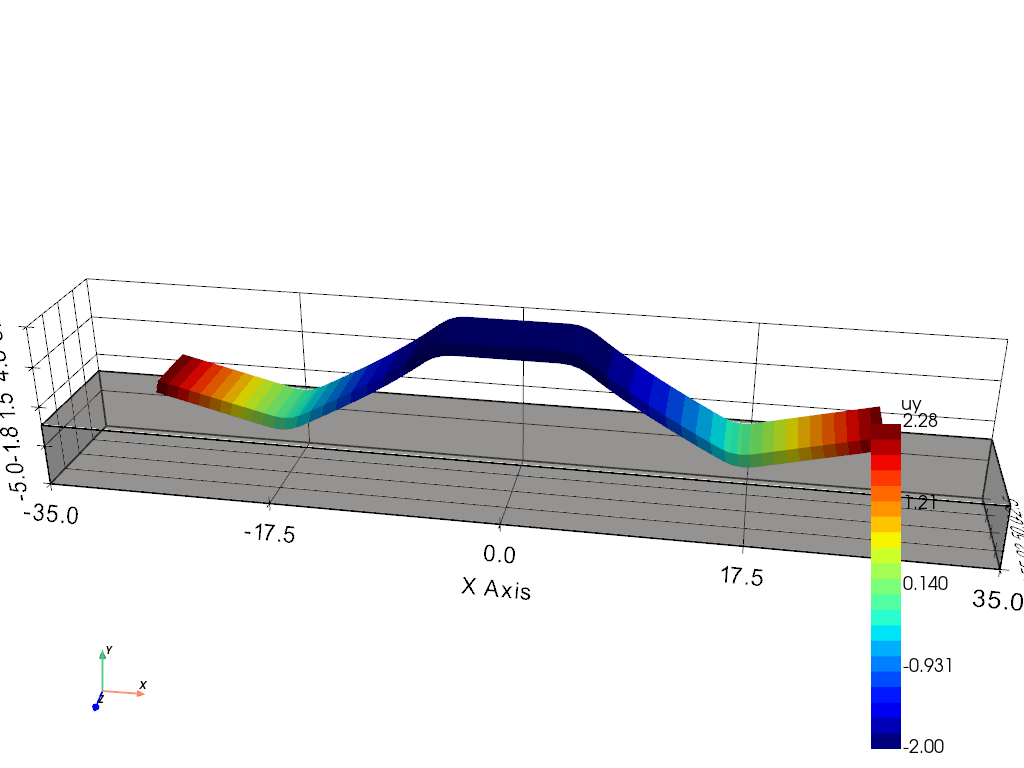

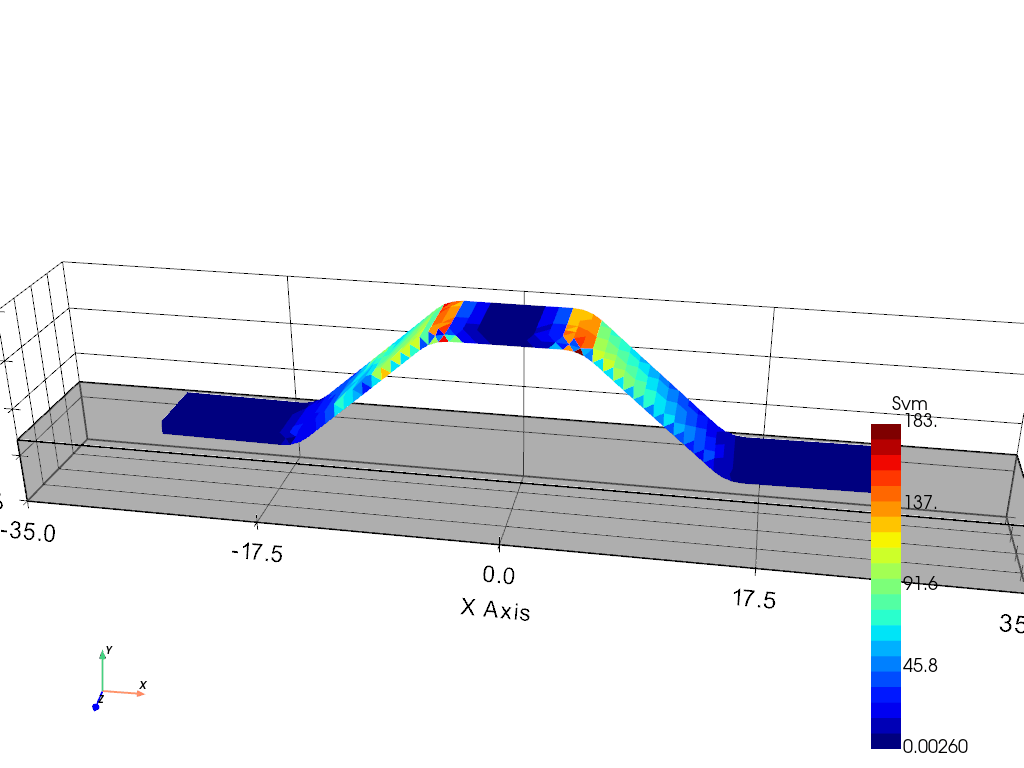

Frictionless contact between a thin elastic arch strip and a rigid block, solved with the penalty method and Newton-Raphson.
The rigid block is treated as an obstacle: at every contact-surface Gauss point the normal gap gₙ to the obstacle surface is measured and, where it is negative (penetration), a penalty traction εₙ⟨-gₙ⟩ n resists it.These contributions are added to the elastic residual/tangent through Operators.NonLinear.PenaltyContact and the non-linear system A(u) Δu = -R(u) is solved with Newton at each load step.
Runs in 2D (arch strip) and 3D (extruded arch strip); set dim below. The non-linear simulation (ElasticContact) lives in _utils.py.
Penalty contact solve in 3D (Newton per step):
