Mesh7#

Meshing a 3D part in revolution.

Mesh7
Mesh7
13 import numpy as np
14
15 from EasyFEA import Display, ElemType, PyVista
16 from EasyFEA.Geoms import Point, Points, Circle, Line
17
18 if __name__ == "__main__":
19     Display.Clear()
20
21     width = 1
22     height = 2
23     radius = 1
24
25     meshSize = width / 5
26
27     pt1 = Point(radius, 0, r=width / 3)
28     pt2 = Point(radius + width, 0, r=width / 3)
29     pt3 = Point(radius + width, height, r=-width / 3)
30     pt4 = Point(radius, height, r=-width / 3)
31
32     contour = Points([pt1, pt2, pt3, pt4], meshSize)
33
34     circle1 = Circle(Point(width / 2 + radius, height * 1 / 4), width / 3, width / 10)
35     circle2 = Circle(Point(width / 2 + radius, height * 3 / 4), width / 3, width / 10)
36     circle3 = Circle(
37         Point(width / 2 + radius, height / 2), width / 3, width / 10, False
38     )
39     inclusions = [circle1, circle2, circle3]
40
41     axis = Line(Point(), Point(radius / 3, height))
42     axis.name = "rot axis"
43

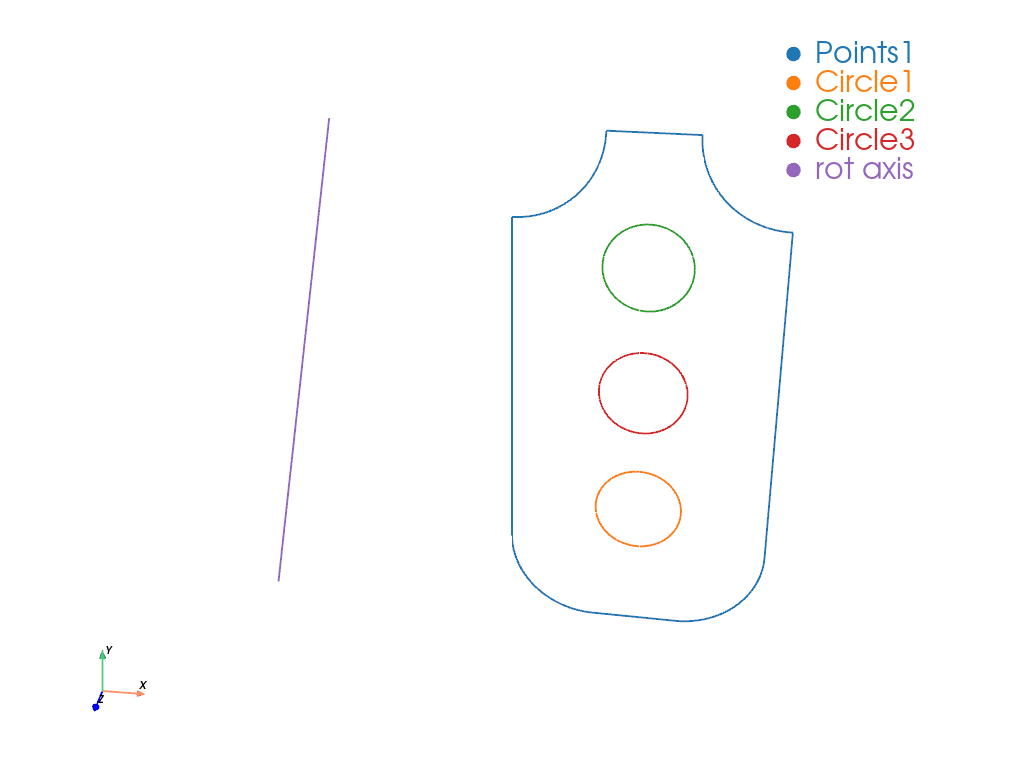

44     plotter = PyVista.Plot_Geoms([contour, *inclusions, axis]).show()
45
46     angle = 360 * 4 / 6
47
48     perimeter = angle * np.pi / 180 * radius
49
50     layers = [perimeter // meshSize]
51

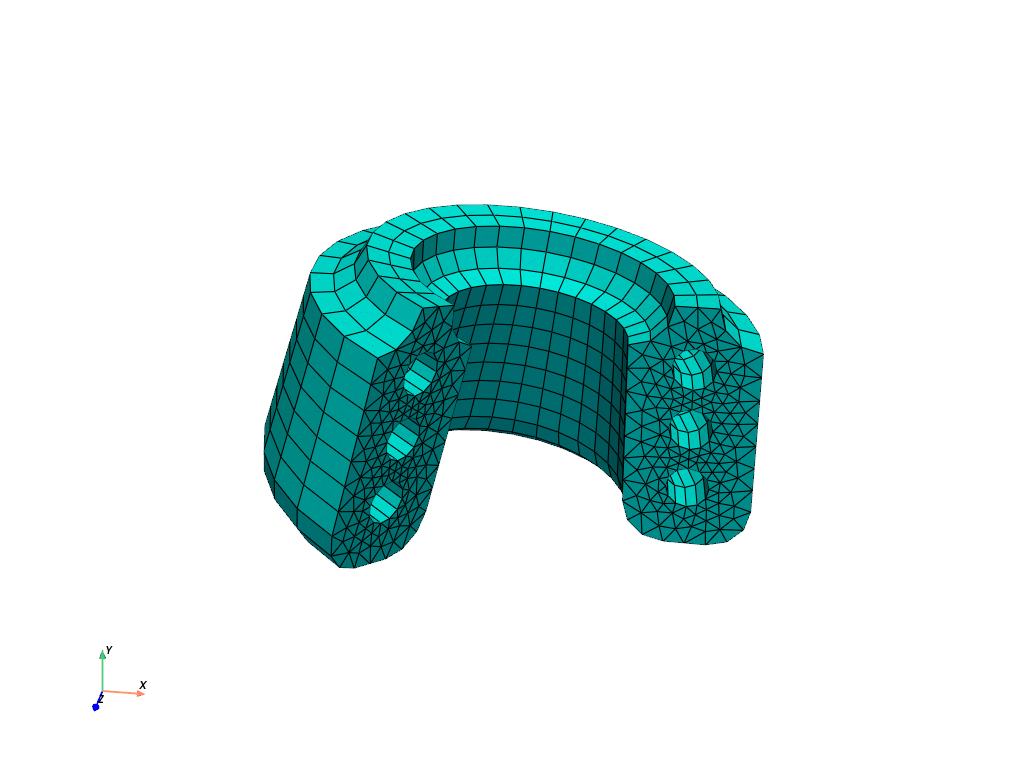

52     mesh = contour.Mesh_Revolve(inclusions, axis, angle, layers, ElemType.PRISM6)
53     PyVista.Plot_Mesh(mesh).show()

Total running time of the script: (0 minutes 0.567 seconds)
