MeshConvergence#

Verification of energy convergence for a bending beam for all available elements.

  • MeshConvergence
  • MeshConvergence
  • MeshConvergence
  • MeshConvergence

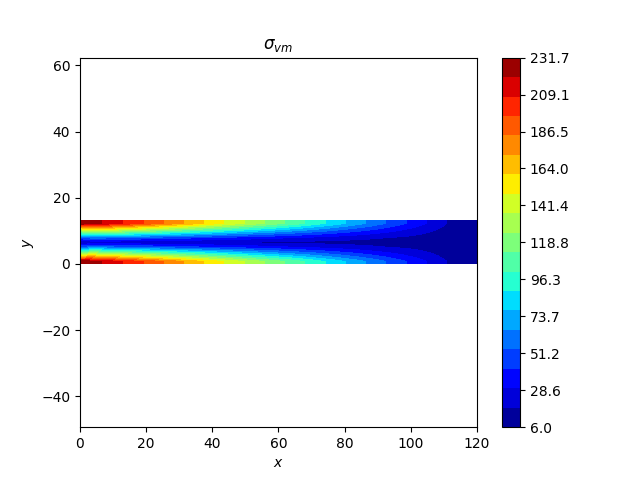

  • $\sigma_{vm}$
Elem: TRI3, nby:  1, Wdef = 85.307, error = 7.71e-01
Elem: TRI3, nby:  2, Wdef = 199.836, error = 4.63e-01
Elem: TRI3, nby:  3, Wdef = 268.382, error = 2.79e-01
Elem: TRI3, nby:  4, Wdef = 305.294, error = 1.79e-01
Elem: TRI3, nby:  5, Wdef = 326.756, error = 1.22e-01
Elem: TRI3, nby:  6, Wdef = 339.109, error = 8.85e-02
Elem: TRI3, nby:  7, Wdef = 347.06, error = 6.71e-02
Elem: TRI3, nby:  8, Wdef = 352.445, error = 5.26e-02
Elem: TRI3, nby:  9, Wdef = 356.373, error = 4.21e-02
Elem: TRI6, nby:  1, Wdef = 369.006, error = 8.10e-03
Elem: TRI6, nby:  2, Wdef = 370.965, error = 2.84e-03
Elem: TRI6, nby:  3, Wdef = 371.253, error = 2.06e-03
Elem: TRI6, nby:  4, Wdef = 371.354, error = 1.79e-03
Elem: TRI6, nby:  5, Wdef = 371.405, error = 1.65e-03
Elem: TRI6, nby:  6, Wdef = 371.433, error = 1.58e-03
Elem: TRI6, nby:  7, Wdef = 371.451, error = 1.53e-03
Elem: TRI6, nby:  8, Wdef = 371.463, error = 1.50e-03
Elem: TRI6, nby:  9, Wdef = 371.472, error = 1.47e-03
Elem: TRI10, nby:  1, Wdef = 371.008, error = 2.72e-03
Elem: TRI10, nby:  2, Wdef = 371.36, error = 1.78e-03
Elem: TRI10, nby:  3, Wdef = 371.433, error = 1.58e-03
Elem: TRI10, nby:  4, Wdef = 371.463, error = 1.50e-03
Elem: TRI10, nby:  5, Wdef = 371.479, error = 1.45e-03
Elem: TRI10, nby:  6, Wdef = 371.489, error = 1.43e-03
Elem: TRI10, nby:  7, Wdef = 371.495, error = 1.41e-03
Elem: TRI10, nby:  8, Wdef = 371.499, error = 1.40e-03
Elem: TRI10, nby:  9, Wdef = 371.503, error = 1.39e-03
Elem: TRI15, nby:  1, Wdef = 371.309, error = 1.91e-03
Elem: TRI15, nby:  2, Wdef = 371.445, error = 1.55e-03
Elem: TRI15, nby:  3, Wdef = 371.478, error = 1.46e-03
Elem: TRI15, nby:  4, Wdef = 371.493, error = 1.42e-03
Elem: TRI15, nby:  5, Wdef = 371.501, error = 1.40e-03
Elem: TRI15, nby:  6, Wdef = 371.505, error = 1.39e-03
Elem: TRI15, nby:  7, Wdef = 371.508, error = 1.38e-03
Elem: TRI15, nby:  8, Wdef = 371.511, error = 1.37e-03
Elem: TRI15, nby:  9, Wdef = 371.512, error = 1.37e-03
Elem: QUAD4, nby:  1, Wdef = 249.865, error = 3.28e-01
Elem: QUAD4, nby:  2, Wdef = 330.381, error = 1.12e-01
Elem: QUAD4, nby:  3, Wdef = 351.849, error = 5.42e-02
Elem: QUAD4, nby:  4, Wdef = 360.11, error = 3.20e-02
Elem: QUAD4, nby:  5, Wdef = 364.354, error = 2.06e-02
Elem: QUAD4, nby:  6, Wdef = 366.455, error = 1.50e-02
Elem: QUAD4, nby:  7, Wdef = 367.75, error = 1.15e-02
Elem: QUAD4, nby:  8, Wdef = 368.603, error = 9.19e-03
Elem: QUAD4, nby:  9, Wdef = 369.241, error = 7.47e-03
Elem: QUAD8, nby:  1, Wdef = 369.262, error = 7.42e-03
Elem: QUAD8, nby:  2, Wdef = 371.115, error = 2.43e-03
Elem: QUAD8, nby:  3, Wdef = 371.315, error = 1.90e-03
Elem: QUAD8, nby:  4, Wdef = 371.386, error = 1.70e-03
Elem: QUAD8, nby:  5, Wdef = 371.424, error = 1.60e-03
Elem: QUAD8, nby:  6, Wdef = 371.445, error = 1.55e-03
Elem: QUAD8, nby:  7, Wdef = 371.46, error = 1.51e-03
Elem: QUAD8, nby:  8, Wdef = 371.47, error = 1.48e-03
Elem: QUAD8, nby:  9, Wdef = 371.478, error = 1.46e-03
Elem: QUAD9, nby:  1, Wdef = 370.315, error = 4.58e-03
Elem: QUAD9, nby:  2, Wdef = 371.231, error = 2.12e-03
Elem: QUAD9, nby:  3, Wdef = 371.375, error = 1.74e-03
Elem: QUAD9, nby:  4, Wdef = 371.428, error = 1.59e-03
Elem: QUAD9, nby:  5, Wdef = 371.456, error = 1.52e-03
Elem: QUAD9, nby:  6, Wdef = 371.471, error = 1.48e-03
Elem: QUAD9, nby:  7, Wdef = 371.481, error = 1.45e-03
Elem: QUAD9, nby:  8, Wdef = 371.488, error = 1.43e-03
Elem: QUAD9, nby:  9, Wdef = 371.494, error = 1.42e-03

WSA = 372.0206 mJ

Mesh : 692.679 ms
Boundary Conditions : 713.587 µs
Matrix : 938.269 ms
Solver : 684.197 ms
Resolutions : 1.358 s
PostProcessing : 170.414 ms
Display : 835.431 ms


 13 import matplotlib.pyplot as plt
 14 import numpy as np
 15
 16 from EasyFEA import Display, Folder, Models, Tic, ElemType, Simulations, Paraview
 17 from EasyFEA.Geoms import Domain, Point
 18
 19 if __name__ == "__main__":
 20     Display.Clear()
 21
 22     # ----------------------------------------------
 23     # Configuration
 24     # ----------------------------------------------
 25     dim = 2  # Define the dimension of the problem (2D or 3D)
 26
 27     # outputs
 28     folder = Folder.Results_Dir() + f"{dim}D"
 29     plotResult = True
 30     makeParaview = False
 31
 32     # geom
 33     L = 120  # mm
 34     h = 13  # Height
 35     b = 13  # Width
 36
 37     # model
 38     E = 210000  # MPa (Young's modulus)
 39     v = 0.25  # Poisson's ratio
 40     material = Models.Elastic.Isotropic(dim, thickness=b, E=E, v=v, planeStress=True)
 41
 42     # load
 43     P = 800  # N
 44
 45     # expected energy
 46     WdefRef = 2 * P**2 * L / E / h / b * (L**2 / h / b + (1 + v) * 3 / 5)
 47
 48     # ----------------------------------------------
 49     # Mesh
 50     # ----------------------------------------------
 51     isOrganised = True
 52
 53     # List of mesh sizes (number of elements) to investigate convergence
 54     if dim == 2:
 55         list_N = np.arange(1, 10, 1)
 56     else:
 57         list_N = np.arange(1, 8, 2)
 58
 59     # Lists to store data for plotting
 60     times_elem_N = []  # times for element type and N size
 61     wDef_elem_N = []  # energy
 62     dofs_elem_N = []  # dofs
 63     zz1_elem_N = []  # zz1
 64
 65     # ----------------------------------------------
 66     # Simulations
 67     # ----------------------------------------------
 68
 69     # Loop over each element type for both 2D and 3D simulations
 70     elemTypes = ElemType.Get_2D()[:] if dim == 2 else ElemType.Get_3D()
 71
 72     # elemTypes = [elem.name for elem in elemTypes.copy()]
 73
 74     for e, elemType in enumerate(elemTypes):
 75         times_N = []
 76         wDef_N = []
 77         dofs_N = []
 78         zz1_N = []
 79
 80         # Loop over each mesh size (number of elements)
 81         for N in list_N:
 82             meshSize = b / N
 83
 84             # Define the domain for the mesh
 85             domain = Domain(Point(), Point(x=L, y=h), meshSize)
 86
 87             # Generate the mesh using Gmsh
 88             if dim == 2:
 89                 mesh = domain.Mesh_2D([], elemType, isOrganised=isOrganised)
 90                 volume = mesh.area * material.thickness
 91             else:
 92                 mesh = domain.Mesh_Extrude(
 93                     [],
 94                     elemType=elemType,
 95                     extrude=[0, 0, b],
 96                     layers=[4],
 97                     isOrganised=isOrganised,
 98                 )
 99                 volume = mesh.volume
100             # Ensure that the volume matches the expected value (L * h * b)
101             assert np.abs(volume - (L * h * b)) / volume <= 1e-10
102
103             # Define nodes on the left boundary (x=0) and right boundary (x=L)
104             nodes_x0 = mesh.Nodes_Conditions(lambda x, y, z: x == 0)
105             nodes_xL = mesh.Nodes_Conditions(lambda x, y, z: x == L)
106
107             # Create or update the simulation object with the current mesh
108             if e == 0 and N == list_N[0]:
109                 simu = Simulations.Elastic(mesh, material)
110             else:
111                 simu.Bc_Init()
112                 simu.mesh = mesh
113
114             # Set displacement boundary conditions
115             simu.add_dirichlet(nodes_x0, [0] * dim, simu.Get_unknowns())
116             # Set surface load on the right boundary (y-direction)
117             simu.add_surfLoad(nodes_xL, [-P / h / b], ["y"])
118
119             tic = Tic()
120
121             # Solve the simulation
122             simu.Solve()
123             simu.Save_Iter()
124
125             time = tic.Tac("Resolutions", "Total time", False)
126
127             # Get the computed deformation energy
128             Wdef = simu.Result("Wdef")
129
130             # Store the results for the current mesh size
131             times_N.append(time)
132             wDef_N.append(Wdef)
133             dofs_N.append(mesh.Nn * dim)
134             zz1_N.append(simu.Result("ZZ1"))
135
136             if elemType != mesh.elemType:
137                 print("Error in mesh generation")
138
139             print(
140                 f"Elem: {mesh.elemType}, nby: {N:2}, Wdef = {np.round(Wdef, 3)}, "
141                 f"error = {np.abs(WdefRef - Wdef) / WdefRef:.2e}"
142             )
143
144         # Store the results for the current element type
145         times_elem_N.append(times_N)
146         wDef_elem_N.append(wDef_N)
147         dofs_elem_N.append(dofs_N)
148         zz1_elem_N.append(zz1_N)
149
150     # ----------------------------------------------
151     # Results
152     # ----------------------------------------------

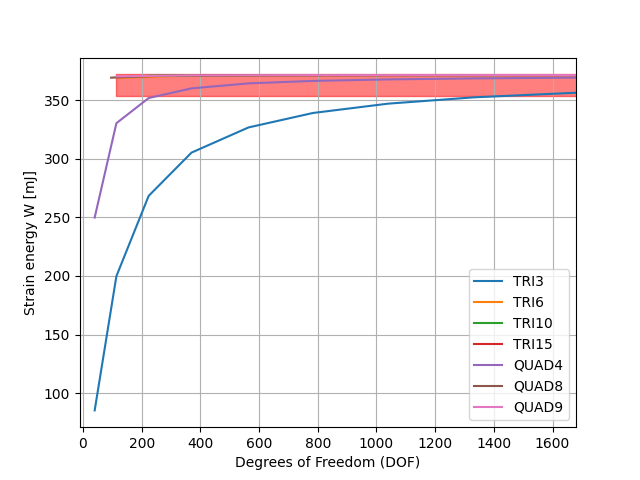

153     # Display the convergence of deformation energy
154     ax_Wdef = Display.Init_Axes()
155     ax_error = Display.Init_Axes()
156     ax_times = Display.Init_Axes()
157     ax_zz1 = Display.Init_Axes()
158

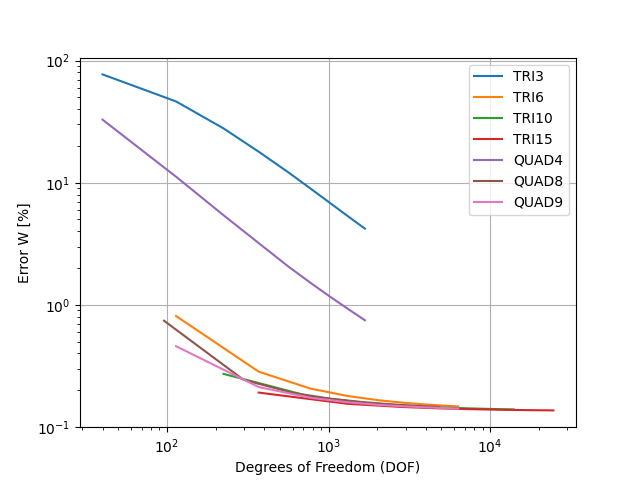

159     print(f"\nWSA = {np.round(WdefRef, 4)} mJ")
160
161     for e, elemType in enumerate(elemTypes):
162         # Convergence of deformation energy
163         ax_Wdef.plot(dofs_elem_N[e], wDef_elem_N[e])
164
165         # Error in deformation energy
166         Wdef = np.array(wDef_elem_N[e])
167         error = (WdefRef - Wdef) / WdefRef * 100
168         ax_error.loglog(dofs_elem_N[e], error)
169

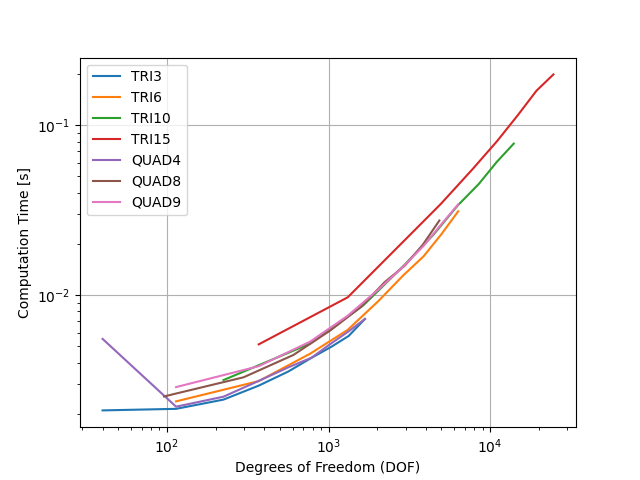

170         # Computation time
171         ax_times.loglog(dofs_elem_N[e], times_elem_N[e])
172         # ax_Times.plot(listDofs_e_nb[e], listTimes_e_nb[e])
173         # ax_Times.set_xscale('log')
174

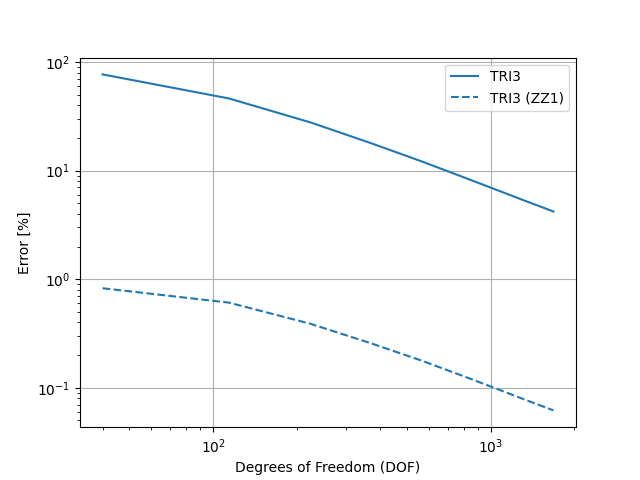

175         # ZZ1
176         if elemType == elemTypes[0]:
177             last = ax_zz1.loglog(dofs_elem_N[e], error, label=f"{elemType}")
178             ax_zz1.loglog(
179                 dofs_elem_N[e],
180                 zz1_elem_N[e],
181                 ls="--",
182                 color=last[0]._color,
183                 label=f"{elemType} (ZZ1)",
184             )
185
186     WdefRefArray = np.ones_like(dofs_elem_N[0]) * WdefRef
187     WdefRefArray5 = WdefRefArray * 0.95
188     # WdefRefArray5 = WdefRefArray * 1
189
190     # Deformation energy
191     ax_Wdef.grid()
192     ax_Wdef.set_xlim([-10, np.max(dofs_elem_N[0])])
193     ax_Wdef.set_xlabel("Degrees of Freedom (DOF)")
194     ax_Wdef.set_ylabel("Strain energy W [mJ]")
195     ax_Wdef.legend(elemTypes)
196     # ax_Wdef.fill_between(dofs_N, WdefRefArray, WdefRefArray5, alpha=0.5, color='red')
197     ax_Wdef.fill_between(dofs_N, WdefRefArray, WdefRefArray5, alpha=0.5, color="red")
198     plt.figure(ax_Wdef.figure)
199     Display.Save_fig(folder, "Energy")
200
201     # Error in deformation energy
202     ax_error.grid()
203     ax_error.set_xlabel("Degrees of Freedom (DOF)")
204     ax_error.set_ylabel("Error W [%]")
205     ax_error.legend(elemTypes)
206     plt.figure(ax_error.figure)
207     Display.Save_fig(folder, "Error")
208
209     # Error in deformation energy
210     ax_zz1.grid()
211     ax_zz1.set_xlabel("Degrees of Freedom (DOF)")
212     ax_zz1.set_ylabel("Error [%]")
213     ax_zz1.legend()
214     plt.figure(ax_zz1.figure)
215     Display.Save_fig(folder, "Error ZZ1")
216
217     # Computation time
218     ax_times.grid()
219     ax_times.set_xlabel("Degrees of Freedom (DOF)")
220     ax_times.set_ylabel("Computation Time [s]")
221     ax_times.legend(elemTypes)
222     plt.figure(ax_times.figure)
223     Display.Save_fig(folder, "Time")
224
225     # Plot the von Mises stress result using 20 color levels
226     Display.Plot_Result(simu, "Svm", ncolors=20)
227
228     if makeParaview:
229         # Generate Paraview files for visualization
230         Paraview.Save_simu(simu, folder, details=True)
231
232     # Show the total computation time
233     print()
234     Tic.Resume()
235
236     # Display the computation time history
237     # Tic.Plot_History(folder)
238
239     # Show all plots
240     plt.show()

Total running time of the script: (0 minutes 3.513 seconds)

Gallery generated by Sphinx-Gallery
