Mesh11#

Meshing of a specimen for a spatially oriented tensile test.

Mesh11
Mesh11
12 from EasyFEA import Display, ElemType, np, PyVista
13 from EasyFEA.Geoms import Point, Line, CircleArc, Contour, Domain
14
15 if __name__ == "__main__":
16     Display.Clear()
17
18     # ----------------------------------------------
19     # Configuration
20     # ----------------------------------------------
21
22     # geom
23     L = 1
24     H = 2
25     e = L * 0.5
26
27     # ----------------------------------------------
28     # Mesh
29     # ----------------------------------------------
30
31     p1 = Point(-L / 2)
32     p2 = Point(L / 2)
33     p3 = p2 + [0, H]
34     p4 = p1 + [0, H]
35
36     p5 = Point(e / 2, H / 2)
37     p6 = Point(-e / 2, H / 2)
38
39     l1 = Line(p1, p2)
40     l2 = CircleArc(p2, p3, P=p5)
41     l3 = Line(p3, p4)
42     l4 = CircleArc(p4, p1, P=p6)
43
44     contour = Contour([l1, l2, l3, l4])
45     contour2 = Domain(p1 - [0, H / 2], p2, isHollow=False)
46     contour3 = contour2.copy()
47     contour3.Translate(dy=H + H / 2)
48
49     surfaces = [contour2, contour3]
50

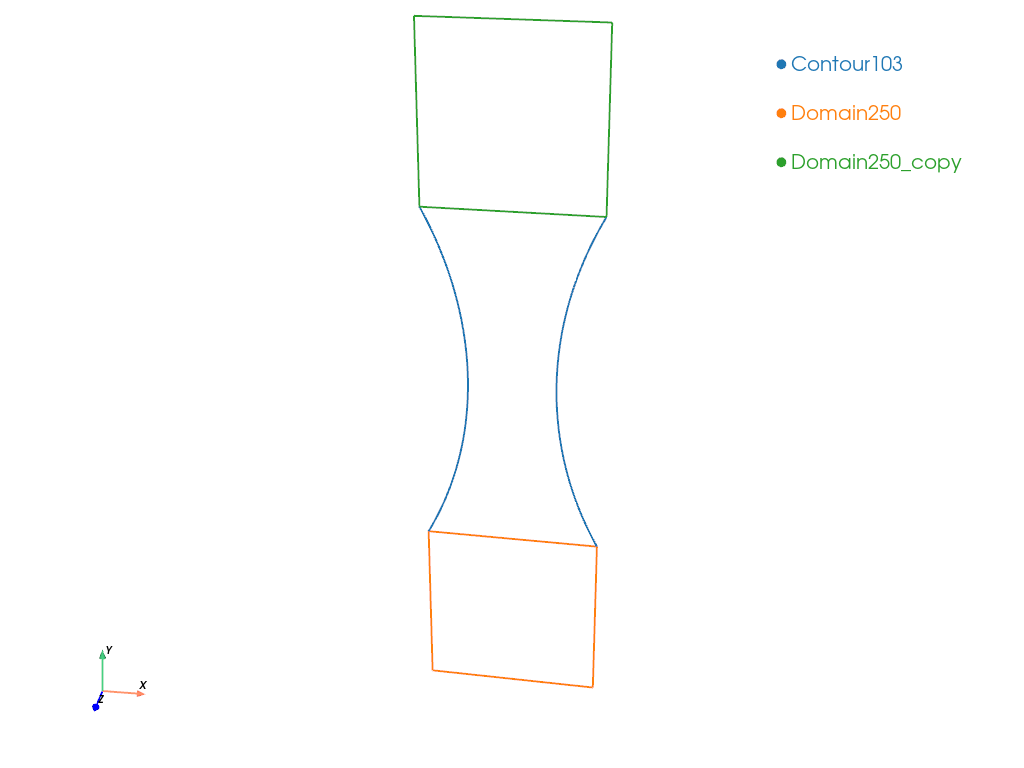

51     PyVista.Plot_Geoms([contour, *surfaces]).show()
52
53     mesh = contour.Mesh_Extrude(
54         [],
55         [0, 0, e],
56         [3],
57         isOrganised=True,
58         elemType=ElemType.HEXA8,
59         additionalSurfaces=surfaces,
60     )
61
62     # ----------------------------------------------
63     # Update coords
64     # ----------------------------------------------
65
66     oldArea = mesh.area
67     mesh.Rotate(-45, mesh.center)
68     assert np.abs(mesh.area - oldArea) / oldArea <= 1e-12
69     mesh.Rotate(45, mesh.center, (1, 0))
70     assert np.abs(mesh.area - oldArea) / oldArea <= 1e-12
71

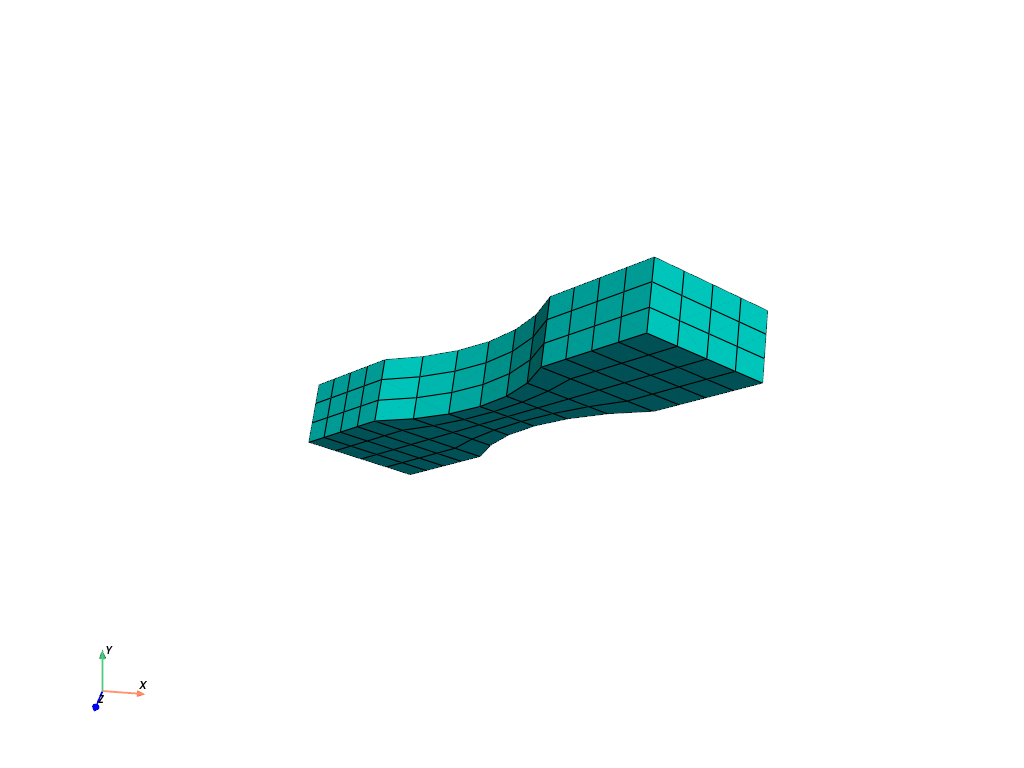

72     PyVista.Plot_Mesh(mesh).show()

Total running time of the script: (0 minutes 0.455 seconds)
