Beam4

Frame with two beams.

•
•
•
•

The beam's vertical axis has been selected incorrectly (collinear with the beam x-axis).
Axis [-1.  0.  0.] has been assigned for beam3.


==================== Mesh ====================

Element type: SEG2
Ne = 14, Nn = 16

==================== Model ====================

<EasyFEA.models._beam.BeamStructure object at 0x79b8560fd5d0>

solver : pypardiso

============= Boundary Conditions =============

Unspecified.

=================== Results ===================



Ux max = 0.00e+00
Ux min = -6.91e-01

Uy max = 0.00e+00
Uy min = -8.09e-01

Uz max = 1.94e+00
Uz min = 0.00e+00

=================== TicTac ===================

Mesh : 94.883 ms
Boundary Conditions : 151.157 µs
Matrix : 34.572 ms
Solver : 85.390 ms
Display : 242.446 ms
PostProcessing : 189.543 µs

from EasyFEA import Display, Models, plt, Mesher, ElemType, Simulations
from EasyFEA.Geoms import Domain, Line

if __name__ == "__main__":
    Display.Clear()

    # ----------------------------------------------
    # Configuration
    # ----------------------------------------------

    # geom
    L = 120
    h = 13
    b = 13

    # model
    E = 210000
    v = 0.3

    # load
    load = 800

    # ----------------------------------------------
    # Mesh
    # ----------------------------------------------

    elemType = ElemType.SEG2

    # Create a section object for the beam mesh
    mesher = Mesher()
    section = mesher.Mesh_2D(Domain((0, 0), (b, h)))

    p1 = (0, 0)
    p2 = (0, L)
    p3 = (L / 2, L)
    line1 = Line(p1, p2, L / 9)
    line2 = Line(p2, p3, L / 9)
    beam1 = Models.BeamElasIsot(3, line1, section, E, v)
    beam2 = Models.BeamElasIsot(3, line2, section, E, v)
    beams = [beam1, beam2]

    mesh = mesher.Mesh_Beams(beams=beams, elemType=elemType)

    # ----------------------------------------------
    # Simulation
    # ----------------------------------------------

    # Initialize the beam structure with the defined beam segments
    beamStructure = Models.BeamStructure(beams)

    # Create the beam simulation
    simu = Simulations.BeamSimu(mesh, beamStructure)
    dof_n = simu.Get_dof_n()

    # Apply boundary conditions
    simu.add_dirichlet(mesh.Nodes_Point(p1), [0] * dof_n, simu.Get_unknowns())
    simu.add_neumann(mesh.Nodes_Point(p3), [-load, load], ["y", "z"])
    if beamStructure.nBeam > 1:
        simu.add_connection_fixed(mesh.Nodes_Point(p2))

    # Solve the beam problem and get displacement results
    sol = simu.Solve()
    simu.Save_Iter()

    # ----------------------------------------------
    # Results
    # ----------------------------------------------

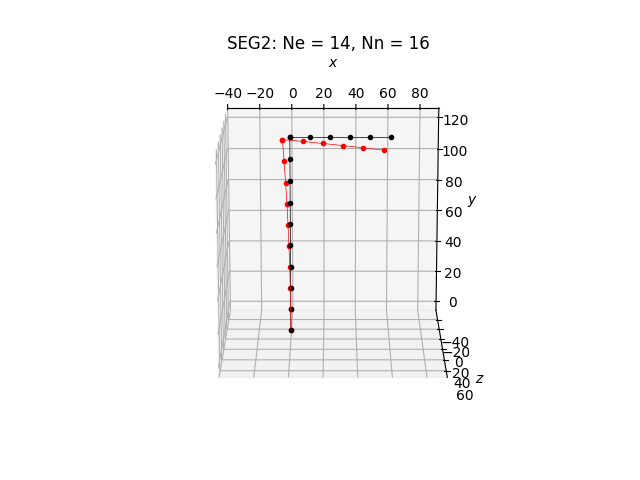

    Display.Plot_Mesh(simu, L / 10 / sol.max())

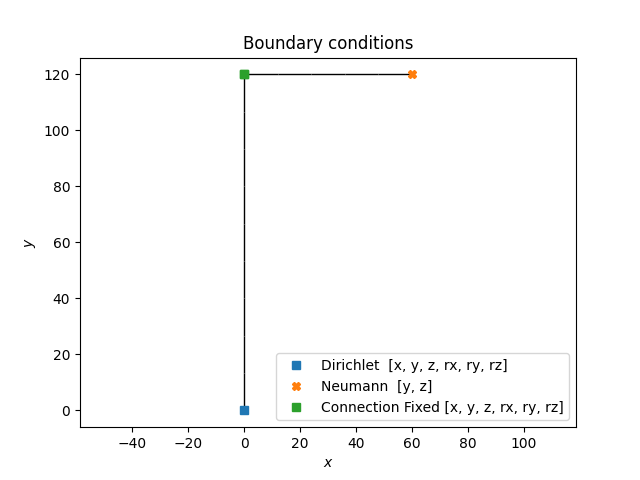

    Display.Plot_BoundaryConditions(simu)

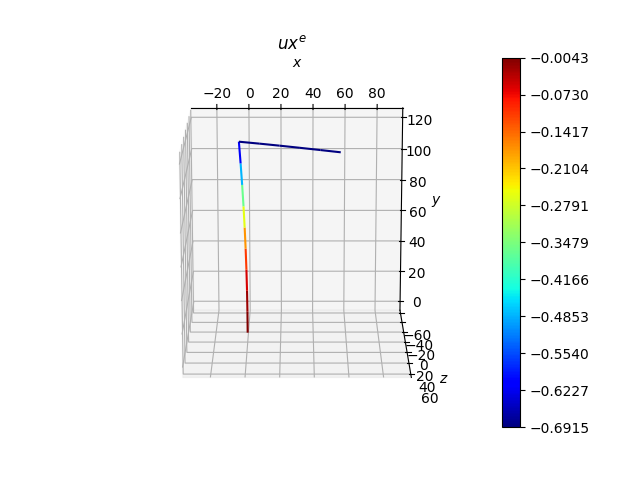

    Display.Plot_Result(simu, "ux", L / 10 / sol.max())

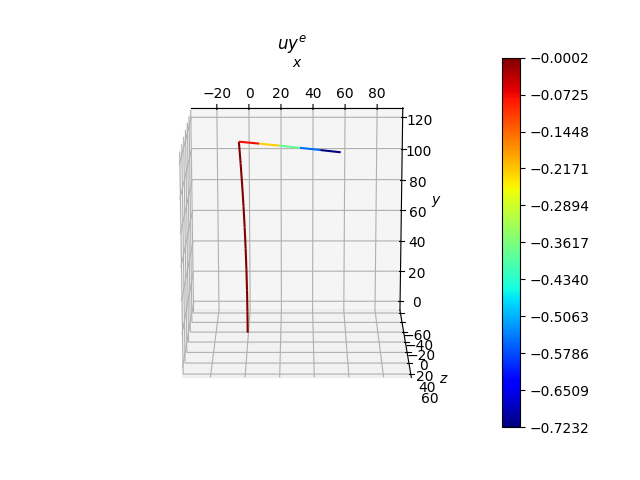

    Display.Plot_Result(simu, "uy", L / 10 / sol.max())

    print(simu)

    plt.show()
