Mesh2_3D

Meshing a hydraulic dam.

Static Scene

Interactive Scene

Static Scene

Interactive Scene

from EasyFEA import Display, ElemType, PyVista
from EasyFEA.Geoms import Points

if __name__ == "__main__":
    Display.Clear()

    h = 180
    N = 5

    contour = Points([(0, 0), (h, 0), (0, h)], h / N)

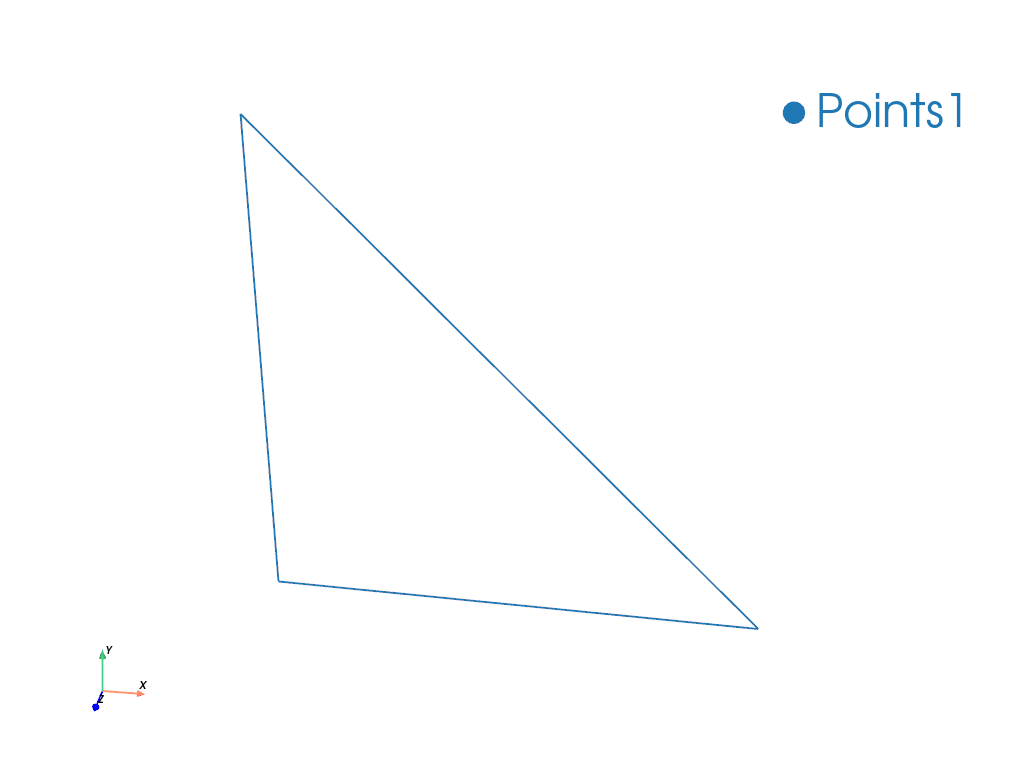

    PyVista.Plot_Geoms(contour).show()

    # "TETRA4", "TETRA10", "PRISM6", "PRISM15", "PRISM18", "HEXA8", "HEXA20", "HEXA27"
    elemType = ElemType.HEXA8
    mesh = contour.Mesh_Extrude([], [0, 0, 2 * h], [10], elemType)

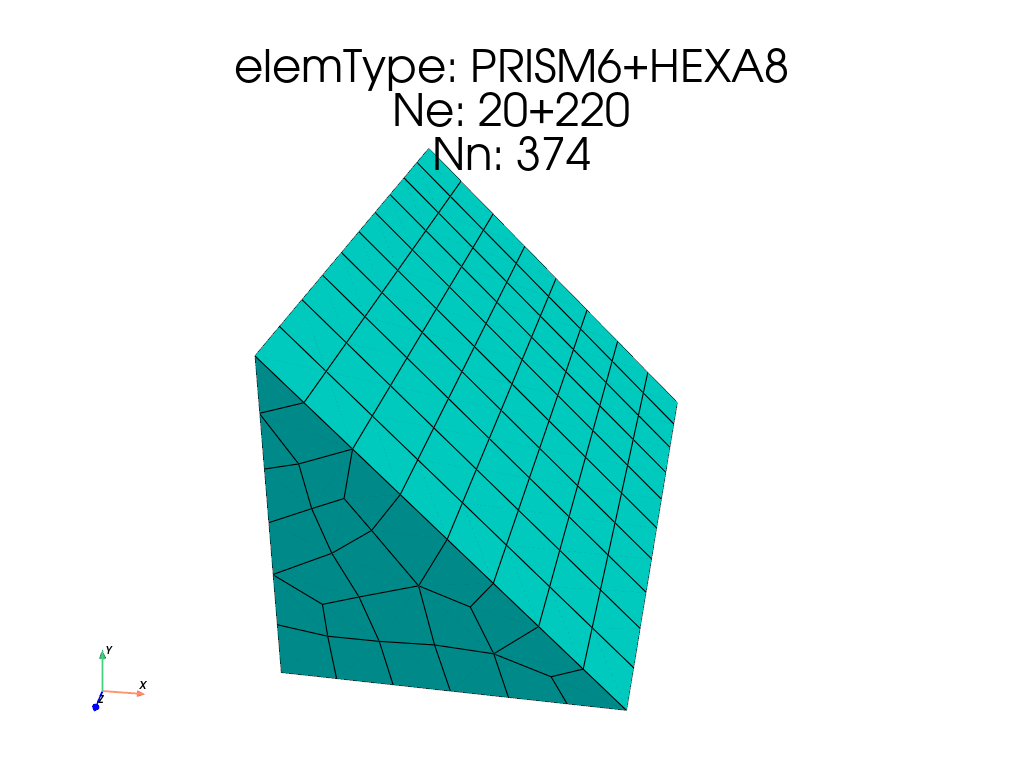

    plotter = PyVista.Plot_Mesh(mesh)
    plotter.add_title(str(mesh))
    plotter.show()
