Mesh2_2D

Meshing a triangle.

Static Scene

Interactive Scene

Static Scene

Interactive Scene

from EasyFEA import Display, ElemType, PyVista
from EasyFEA.Geoms import Points

if __name__ == "__main__":
    Display.Clear()

    h = 180
    N = 5

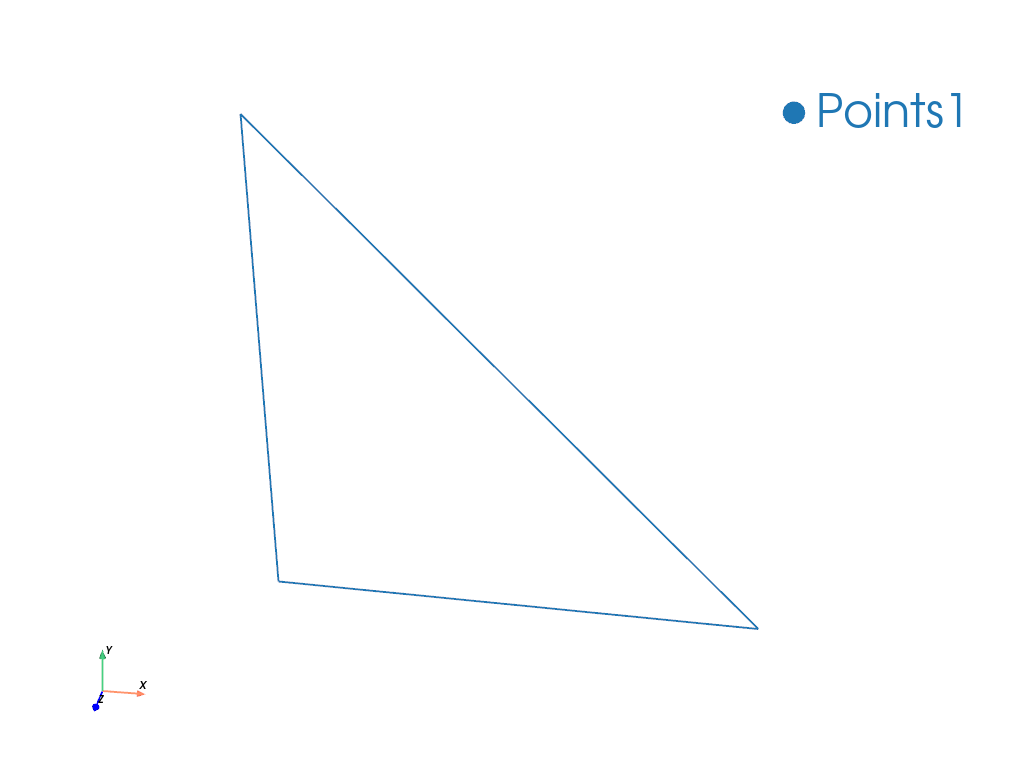

    contour = Points([(0, 0), (h, 0), (0, h)], h / N)
    PyVista.Plot_Geoms(contour).show()

    # "TRI3", "TRI6", "TRI10", "TRI15", "QUAD4", "QUAD8", "QUAD9"

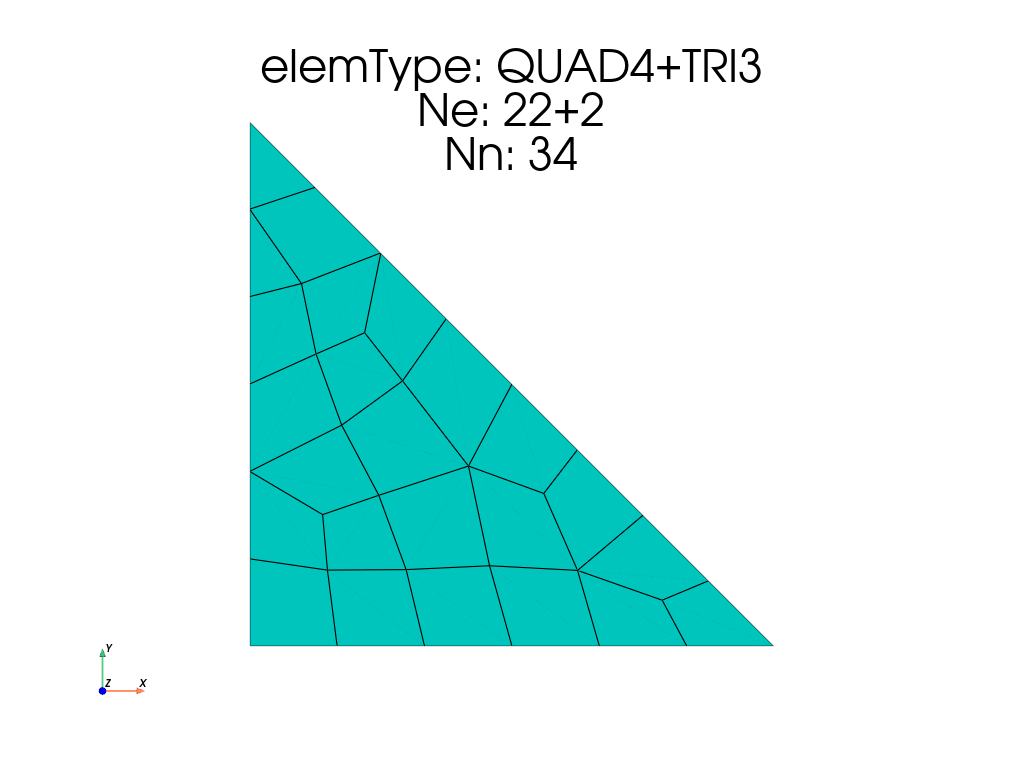

    elemType = ElemType.QUAD4
    mesh = contour.Mesh_2D([], elemType)
    plotter = PyVista.Plot_Mesh(mesh)
    plotter.add_title(str(mesh))
    plotter.show()
