Mesh1_2D

Meshing a 2D domain.

Static Scene

Interactive Scene

Static Scene

Interactive Scene

from EasyFEA import Display, ElemType, PyVista
from EasyFEA.Geoms import Domain

if __name__ == "__main__":
    Display.Clear()

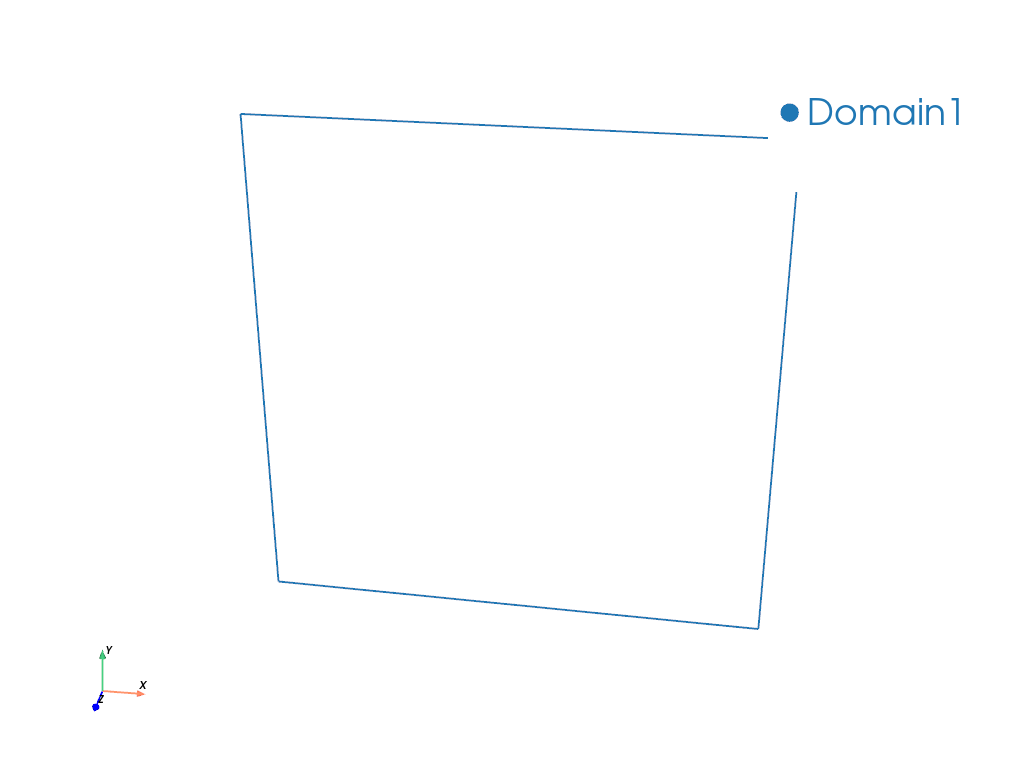

    contour = Domain((0, 0), (1, 1))
    PyVista.Plot_Geoms(contour).show()

    # "TRI3", "TRI6", "TRI10", "TRI15", "QUAD4", "QUAD8",  "QUAD9"
    elemType = ElemType.TRI3

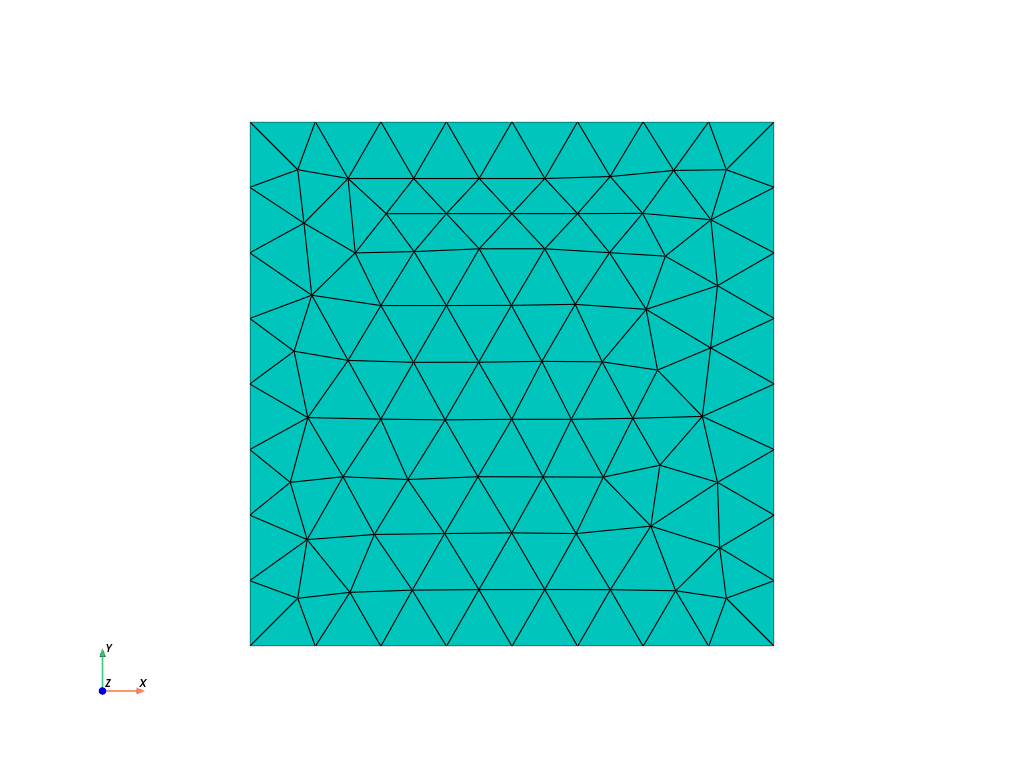

    mesh = contour.Mesh_2D([], elemType)
    PyVista.Plot_Mesh(mesh).show()
