Homog1

Conduct homogenization using an example outlined in Computational Homogenization of Heterogeneous Materials with Finite Elements.

Section 4.7 with corrected values on page 89 (Erratum).

•
•
•
•
•
•
•
•
•

f = 0.4
c1111 = 6.74333603905545
c1122 = 4.594425395508209
c1212 = 0.6256584299841417

import matplotlib.pyplot as plt
import numpy as np

from EasyFEA import Display, Models, ElemType, Simulations
from EasyFEA.Geoms import Points, Circle
from EasyFEA.FEM import LagrangeCondition, FeArray
from typing import Optional


def Compute_ukl(
    simu: Simulations.Elastic,
    nodes_kubc: np.ndarray,
    Ekl: np.ndarray,
    paired_nodes: Optional[np.ndarray] = None,
    pltSol=False,
    useMean0=False,
):
    simu.Bc_Init()
    mesh = simu.mesh
    coord = mesh.coord

    usePBC = paired_nodes is not None

    def func_ux(x, y, z):
        return Ekl.dot([x, y])[0]

    def func_uy(x, y, z):
        return Ekl.dot([x, y])[1]

    directions = ["x", "y"]
    simu.add_dirichlet(nodes_kubc, [func_ux, func_uy], directions)

    if usePBC:
        for n0, n1 in paired_nodes:
            nodes = np.array([n0, n1])

            delta = (coord[n0] - coord[n1])[:2]
            values = Ekl @ delta

            for d, direction in enumerate(directions):
                dofs = simu.Bc_dofs_nodes(nodes, [direction])

                condition = LagrangeCondition(
                    "elastic", nodes, dofs, [direction], [values[d]], [1, -1]
                )
                simu._Bc_Add_Lagrange(condition)

    if useMean0:
        nodes = mesh.nodes
        vect = np.ones(mesh.Nn) * 1 / mesh.Nn
        for direction in directions:
            # sum d_i / Nn = 0
            dofs = simu.Bc_dofs_nodes(nodes, [direction])
            condition = LagrangeCondition(
                "elastic", nodes, dofs, [direction], [0], [vect]
            )
            simu._Bc_Add_Lagrange(condition)

    ukl = simu.Solve()

    simu.Save_Iter()

    if pltSol:

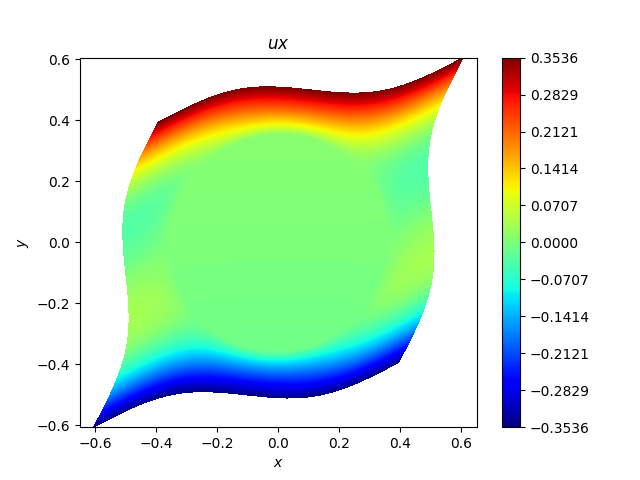

        Display.Plot_Result(simu, "ux", deformFactor=0.3)

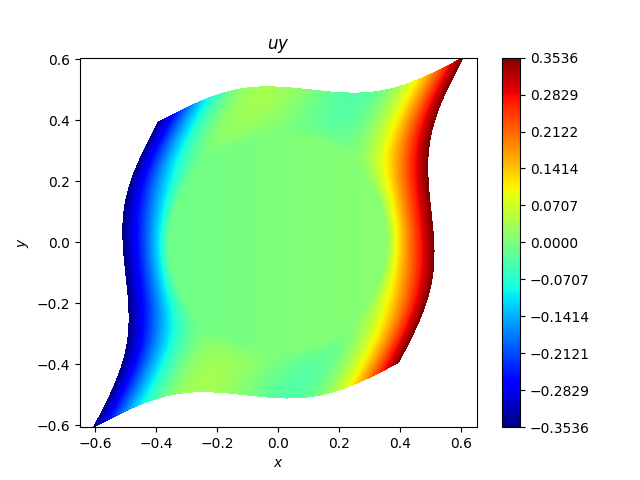

        Display.Plot_Result(simu, "uy", deformFactor=0.3)

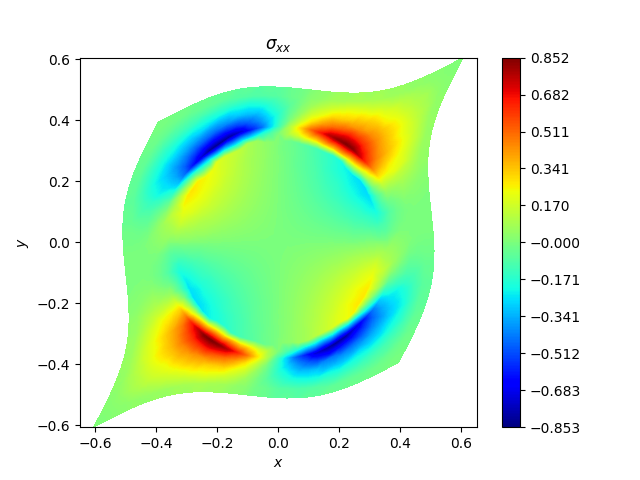

        Display.Plot_Result(simu, "Sxx", deformFactor=0.3)

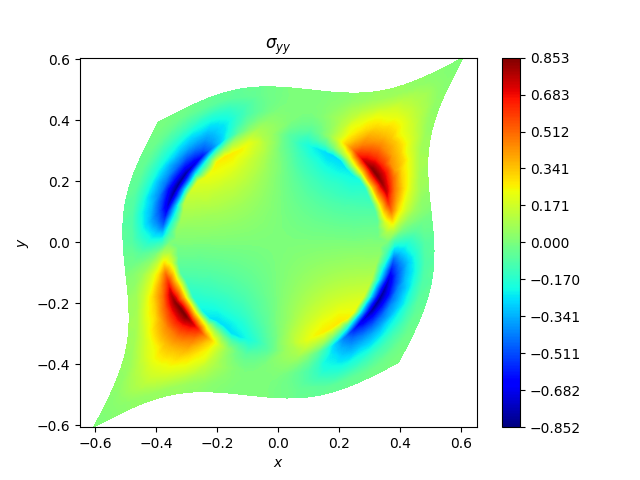

        Display.Plot_Result(simu, "Syy", deformFactor=0.3)

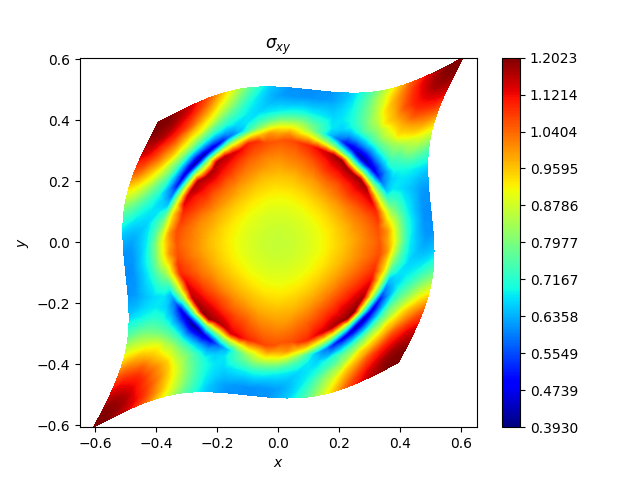

        Display.Plot_Result(simu, "Sxy", deformFactor=0.3)

    return ukl


if __name__ == "__main__":
    Display.Clear()

    # ----------------------------------------------
    # Configuration
    # ----------------------------------------------

    # use Periodic boundary conditions ?
    usePBC = True

    # ----------------------------------------------
    # Mesh
    # ----------------------------------------------
    meshSize = 1 / 15

    p0 = (-1 / 2, -1 / 2)
    p1 = (1 / 2, -1 / 2)
    p2 = (1 / 2, 1 / 2)
    p3 = (-1 / 2, 1 / 2)
    pts = [p0, p1, p2, p3]
    contour = Points(pts, meshSize)
    area = (p1[0] - p0[0]) * (p2[1] - p1[1])

    # inclusion
    f = 0.4
    r = 1 * np.sqrt(f / np.pi)
    inclusion = Circle((0, 0), 2 * r, meshSize, isFilled=True)

    mesh = contour.Mesh_2D([inclusion], ElemType.TRI6)

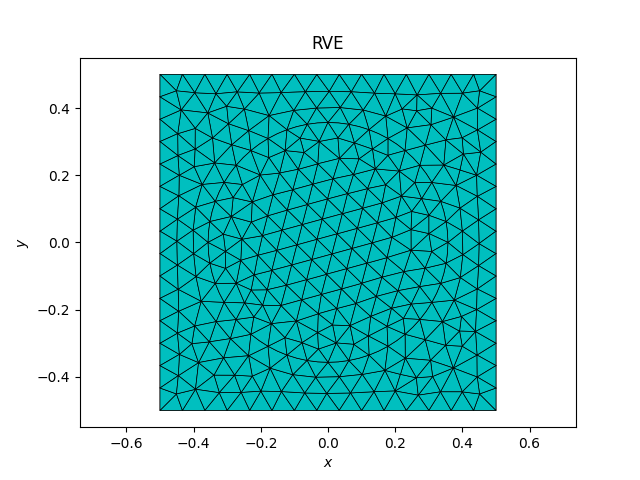

    Display.Plot_Mesh(mesh, title="RVE")

    if usePBC:
        nodes_kubc = mesh.Nodes_Tags(["P0", "P1", "P2", "P3"])

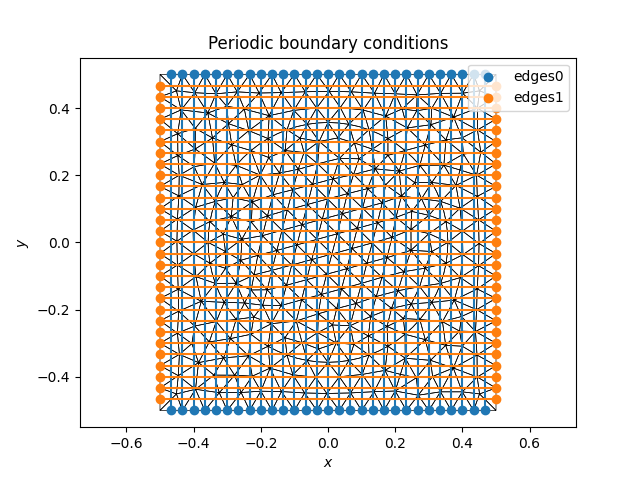

        paired_nodes = mesh.Get_Paired_Nodes(nodes_kubc, True)
    else:
        nodes_kubc = mesh.Nodes_Tags(["L0", "L1", "L2", "L3"])
        paired_nodes = None

    # ----------------------------------------------
    # Material and Simulation
    # ----------------------------------------------
    elements_inclusion = mesh.Elements_Tags(["S1"])
    elements_matrix = mesh.Elements_Tags(["S0"])

    E = np.zeros_like(mesh.groupElem.elements, dtype=float)
    v = np.zeros_like(mesh.groupElem.elements, dtype=float)

    E[elements_matrix] = 1  # MPa
    v[elements_matrix] = 0.45

    if elements_inclusion.size > 0:
        E[elements_inclusion] = 50
        v[elements_inclusion] = 0.3

    material = Models.Elastic.Isotropic(2, E, v, planeStress=False)

    simu = Simulations.Elastic(mesh, material)

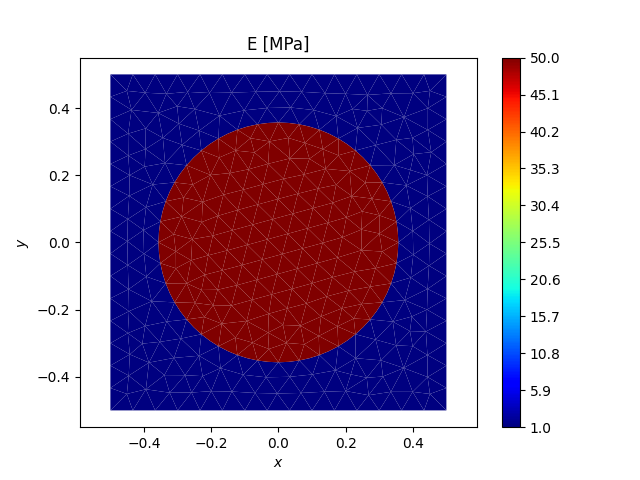

    Display.Plot_Result(simu, E, nodeValues=False, title="E [MPa]")

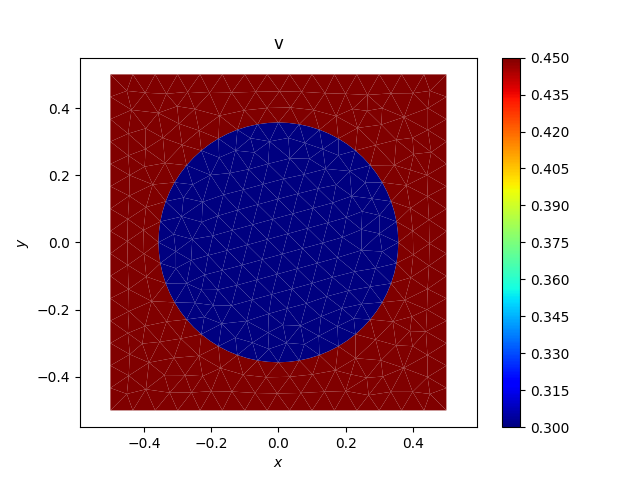

    Display.Plot_Result(simu, v, nodeValues=False, title="v")

    # ----------------------------------------------
    # Homogenization
    # ----------------------------------------------
    r2 = np.sqrt(2)
    E11 = np.array([[1, 0], [0, 0]])
    E22 = np.array([[0, 0], [0, 1]])
    E12 = np.array([[0, 1 / r2], [1 / r2, 0]])

    u11 = Compute_ukl(simu, nodes_kubc, E11, paired_nodes)
    u22 = Compute_ukl(simu, nodes_kubc, E22, paired_nodes)
    u12 = Compute_ukl(simu, nodes_kubc, E12, paired_nodes, True)

    u11_e = mesh.Locates_sol_e(u11, asFeArray=True)
    u22_e = mesh.Locates_sol_e(u22, asFeArray=True)
    u12_e = mesh.Locates_sol_e(u12, asFeArray=True)

    # ----------------------------------------------
    # Effective elasticity tensor (C_hom)
    # ----------------------------------------------
    U_e = FeArray.zeros(*u11_e.shape, 3)

    U_e[..., 0] = u11_e
    U_e[..., 1] = u22_e
    U_e[..., 2] = u12_e

    matrixType = "mass"
    wJ_e_pg = mesh.Get_weightedJacobian_e_pg(matrixType)
    B_e_pg = mesh.Get_B_e_pg(matrixType)

    C_Mat = Models.Reshape_variable(material.C, *B_e_pg.shape[:2])

    C_hom = (wJ_e_pg * C_Mat @ B_e_pg @ U_e).sum((0, 1)) / area

    # Display.Plot_BoundaryConditions(simu)

    print(f"f = {f}")
    print(f"c1111 = {C_hom[0, 0]}")
    print(f"c1122 = {C_hom[0, 1]}")
    print(f"c1212 = {C_hom[2, 2] / 2}")

    plt.show()
