Geoms

The EasyFEA.Geoms module provides essential tools for creating and managing _Geom objects. These geometric objects are used to construct Mesh using the Mesher.

In the simulation workflow, Geoms is the first step: you describe the domain shape here before passing it to the mesher. See Create a mesh for practical examples.

With this module, you can construct:

Point([x, y, z, isOpen, r])	Point class.
Points(points[, meshSize, isHollow, isOpen])	Points class.
Domain(pt1, pt2[, meshSize, isHollow])	Domain (2d or 3d domain) class.
Line(pt1, pt2[, meshSize, isOpen])	Line class.
Circle(center, diam[, meshSize, isHollow, ...])	Circle class.
CircleArc(pt1, pt2[, center, R, P, ...])	CircleArc class.
Contour(geoms[, isHollow, isOpen])	Contour class.

Once the geometric objects are created, you can manipulate them using copy(), Translate(), Rotate(), or Symmetry() (see the example for details).

Creating a Line

from EasyFEA.Geoms import Line

line = Line((0,0), (1,1))
line.Plot()

<Axes: >

Creating a Domain

2D Domain

from EasyFEA.Geoms import Domain

domain = Domain((0, 0), (1, 1))
domain.Plot()

<Axes: >

3D Domain

from EasyFEA.Geoms import Domain

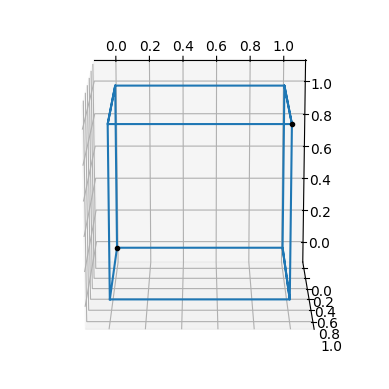

domain = Domain((0, 0, 0), (1, 1, 1))
domain.Plot()

<Axes3D: >

Creating a Circle

from EasyFEA.Geoms import Circle

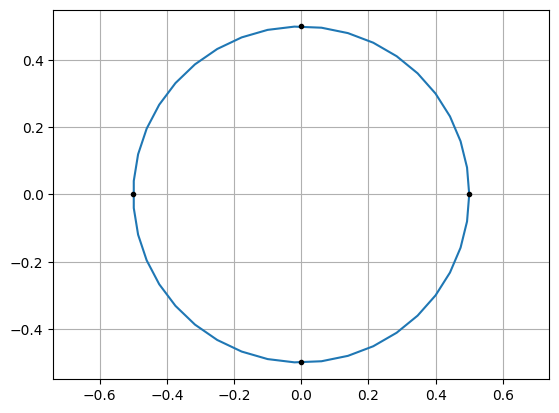

circle = Circle((0, 0), 1.0)
circle.Plot()

<Axes: >

Using an axis normal to the circle

from EasyFEA.Geoms import Circle

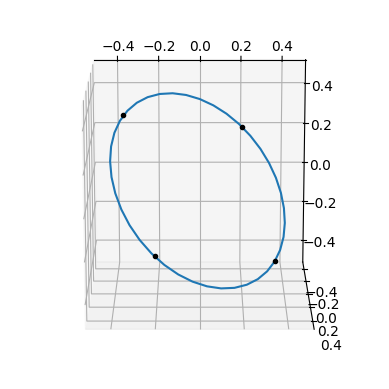

circle = Circle((0, 0), 1.0, n=(0.5, 0.5, 0.5))
circle.Plot()

<Axes3D: >

Creating a CircleArc

From 2 Point and a Center

from EasyFEA.Geoms import CircleArc

circleArc = CircleArc((1, 0), (0, 1), center=(0, 0))

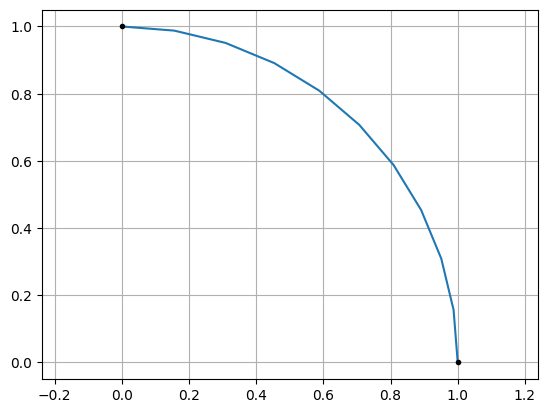

circleArc.Plot()

<Axes: >

From 2 Point and a Radius

from EasyFEA.Geoms import CircleArc

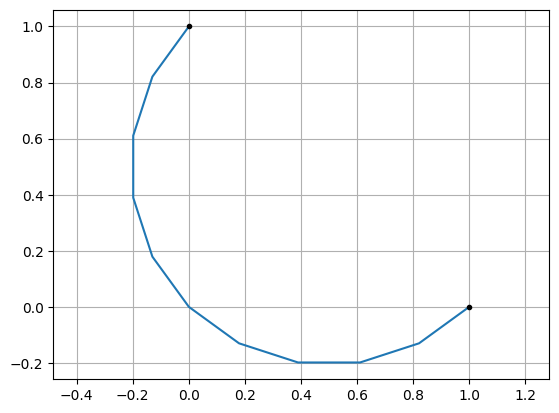

circleArc = CircleArc((1, 0), (0, 1), R=0.5)
circleArc.Plot()

<Axes: >

From 2 Point and a Point

from EasyFEA.Geoms import CircleArc

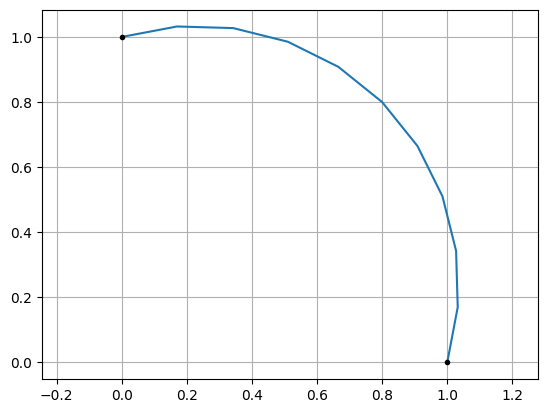

circleArc = CircleArc((1, 0), (0, 1), P=(0.8, 0.8))
circleArc.Plot()

<Axes: >

Creating a Contour from Points

from EasyFEA.Geoms import Points

contour = Points([(0, 0), (1,0), (1,1), (0,1)]).Get_Contour()
contour.Plot()

<Axes: >

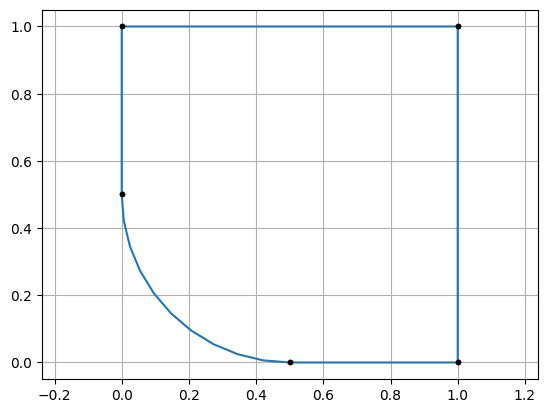

Add a fillet

from EasyFEA.Geoms import Point, Points

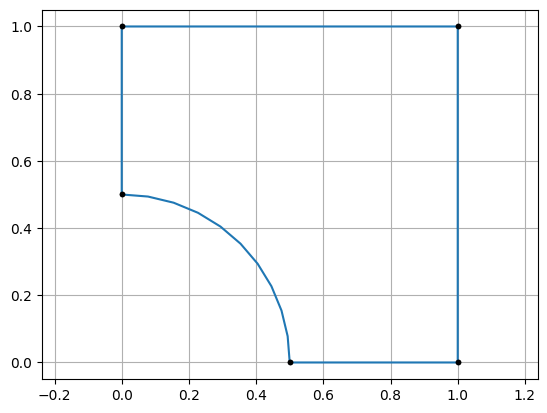

contour = Points([Point(0, 0, r=0.5), (1,0), (1,1), (0,1)]).Get_Contour()
contour.Plot()

<Axes: >

from EasyFEA.Geoms import Point, Points

contour = Points([Point(0, 0, r=-0.5), (1,0), (1,1), (0,1)]).Get_Contour()
contour.Plot()

<Axes: >

Creating a Contour with Line, CircleArc and Points

from EasyFEA.Geoms import Line, CircleArc, Points, Contour

line = Line((0, 0), (1, 0))
points = Points([(1,0), (1.5, 0.5), (1, 1)])
circleArc = CircleArc((1,1), (0,0), center=(1,0))

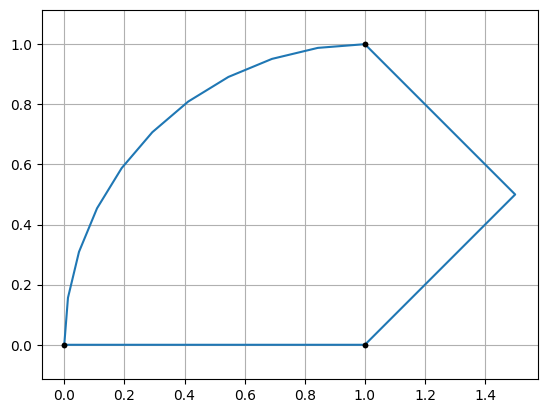

contour = Contour([line, points, circleArc])
contour.Plot()

<Axes: >

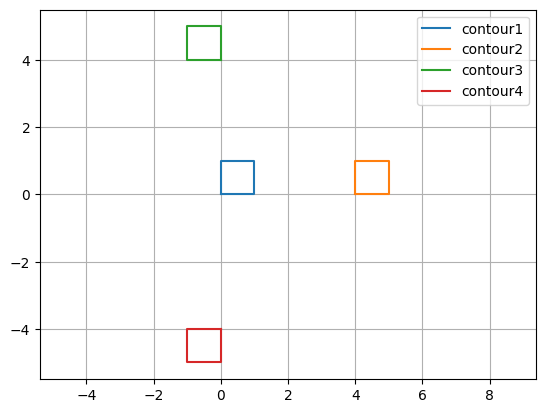

Manipulate a _Geom object using the copy(), Translate(), Rotate(), and Symmetry() functions

from EasyFEA.Geoms import Points

contour1 = Points([(0,0), (1,0), (1,1), (0,1)]).Get_Contour()
contour2 = contour1.copy(); contour2.Translate(dx=4)
contour3 = contour2.copy(); contour3.Rotate(90, (0,0), (0,0,1))
contour4 = contour3.copy(); contour4.Symmetry((0,0), (0,1))

ax = contour1.Plot_Geoms([contour1, contour2, contour3, contour4], plotPoints=False)
ax.legend(["contour1", "contour2", "contour3", "contour4"])

<matplotlib.legend.Legend at 0x616f68f5450>

See also

Create a geometric object — build geometry objects step by step with worked examples.

Create a mesh — pass geometry to the mesher to produce a Mesh.

Geoms API

Module containing the geometric functions used to build meshes.

class EasyFEA.Geoms.Circle(

center: Point | ndarray[tuple[Any, ...], dtype[Any]] | Collection[int | float],

diam: float,

meshSize: float = 0.0,

isHollow: bool = True,

isOpen: bool = False,

n: ndarray[tuple[Any, ...], dtype[Any]] | Collection[int | float] = (0, 0, 1),

)

Bases: _Geom

Circle class.

Get_Contour()

Creates the contour object associated with the circle

Get_coord_for_plot(

N: int = 40,

) → tuple[ndarray[tuple[Any, ...], dtype[floating]], ndarray[tuple[Any, ...], dtype[floating]]]

Returns lines and points coordinates for plotting.

Parameters:

N (int, optional) – Number of coordinates for lines, by default None.

Returns:

Lines and points coordinates as NumPy arrays.

Return type:

tuple of ndarray

_Init_Ninstance()

Initializes the instance number.

property diam: float

circle’s diameter

property length: float

circle perimeter

property n: ndarray[tuple[Any, ...], dtype[Any]] | Collection[int | float]

axis normal to the circle

class EasyFEA.Geoms.CircleArc(

pt1: Point | ndarray[tuple[Any, ...], dtype[Any]] | Collection[int | float],

pt2: Point | ndarray[tuple[Any, ...], dtype[Any]] | Collection[int | float],

center: Point | None = None,

R: int | float | None = None,

P: ndarray[tuple[Any, ...], dtype[Any]] | Collection[int | float] | None = None,

meshSize: int | float = 0.0,

n: ndarray[tuple[Any, ...], dtype[Any]] | Collection[int | float] = (0, 0, 1),

isOpen: bool = False,

coef: int = 1,

)

Bases: _Geom

CircleArc class.

Get_coord_for_plot(

N: int = 11,

) → tuple[ndarray[tuple[Any, ...], dtype[floating]], ndarray[tuple[Any, ...], dtype[floating]]]

Returns lines and points coordinates for plotting.

Parameters:

N (int, optional) – Number of coordinates for lines, by default None.

Returns:

Lines and points coordinates as NumPy arrays.

Return type:

tuple of ndarray

_Init_Ninstance()

Initializes the instance number.

property angle

circular arc angle [rad]

property length: float

circular arc length

property n: ndarray[tuple[Any, ...], dtype[Any]] | Collection[int | float]

axis normal to the circle arc

property r

circular arc radius

class EasyFEA.Geoms.Contour(

geoms: list[Line | CircleArc | Points],

isHollow: bool = True,

isOpen: bool = False,

)

Bases: _Geom

Contour class.

Get_coord_for_plot(

N: int = None,

) → tuple[ndarray[tuple[Any, ...], dtype[floating]], ndarray[tuple[Any, ...], dtype[floating]]]

Returns lines and points coordinates for plotting.

Parameters:

N (int, optional) – Number of coordinates for lines, by default None.

Returns:

Lines and points coordinates as NumPy arrays.

Return type:

tuple of ndarray

_Init_Ninstance()

Initializes the instance number.

property length: float

class EasyFEA.Geoms.Domain(

pt1: Point | ndarray[tuple[Any, ...], dtype[Any]] | Collection[int | float],

pt2: Point | ndarray[tuple[Any, ...], dtype[Any]] | Collection[int | float],

meshSize: int | float = 0.0,

isHollow: bool = True,

)

Bases: _Geom

Domain (2d or 3d domain) class.

Get_coord_for_plot(

N: int = None,

) → tuple[ndarray[tuple[Any, ...], dtype[floating]], ndarray[tuple[Any, ...], dtype[floating]]]

Returns lines and points coordinates for plotting.

Parameters:

N (int, optional) – Number of coordinates for lines, by default None.

Returns:

Lines and points coordinates as NumPy arrays.

Return type:

tuple of ndarray

_Init_Ninstance()

Initializes the instance number.

class EasyFEA.Geoms.Line(

pt1: Point | ndarray[tuple[Any, ...], dtype[Any]] | Collection[int | float],

pt2: Point | ndarray[tuple[Any, ...], dtype[Any]] | Collection[int | float],

meshSize: int | float = 0.0,

isOpen: bool = False,

)

Bases: _Geom

Line class.

static distance(

pt1: Point,

pt2: Point,

) → float

Computes the distance between two points.

static get_unitVector(

pt1: Point,

pt2: Point,

) → ndarray[tuple[Any, ...], dtype[floating]]

Creates the unit vector between two points.

Get_coord_for_plot(

N: int = 2,

) → tuple[ndarray[tuple[Any, ...], dtype[floating]], ndarray[tuple[Any, ...], dtype[floating]]]

Returns lines and points coordinates for plotting.

Parameters:

N (int, optional) – Number of coordinates for lines, by default None.

Returns:

Lines and points coordinates as NumPy arrays.

Return type:

tuple of ndarray

_Init_Ninstance()

Initializes the instance number.

property length: float

distance between the two points of the line

property unitVector: ndarray[tuple[Any, ...], dtype[floating]]

The unit vector for the two points on the line (p2-p1)

class EasyFEA.Geoms.Point(

x: int | float = 0.0,

y: int | float = 0.0,

z: int | float = 0.0,

isOpen: bool = False,

r: int | float = 0.0,

)

Bases: object

Point class.

Check(

coord: Point | ndarray[tuple[Any, ...], dtype[Any]] | Collection[int | float],

) → bool

Checks if coordinates are identical

Rotate(

theta: float,

center: ndarray[tuple[Any, ...], dtype[Any]] | Collection[int | float] = (0, 0, 0),

direction: ndarray[tuple[Any, ...], dtype[Any]] | Collection[int | float] = (0, 0, 1),

) → None

Rotates the point with around an axis.

Parameters:

• theta (float) – rotation angle [deg]

• center (_types.Coords, optional) – rotation center, by default (0,0,0)

• direction (_types.Coords, optional) – rotation direction, by default (0,0,1)

Symmetry(

point: ndarray[tuple[Any, ...], dtype[Any]] | Collection[int | float] = (0, 0, 0),

n: ndarray[tuple[Any, ...], dtype[Any]] | Collection[int | float] = (1, 0, 0),

) → None

Symmetrizes the point coordinates with a plane.

Parameters:

• point (_types.Coords, optional) – a point belonging to the plane, by default (0,0,0)

• n (_types.Coords, optional) – normal to the plane, by default (1,0,0)

Translate(dx: float = 0.0, dy: float = 0.0, dz: float = 0.0) → None

Translates the point.

copy()

property coord: ndarray[tuple[Any, ...], dtype[floating]]

[x,y,z] coordinates

isOpen: bool

point is open

r: float

radius used for fillet

property x: float

x coordinate

property y: float

y coordinate

property z: float

z coordinate

class EasyFEA.Geoms.Points(

points: Collection[Point | ndarray[tuple[Any, ...], dtype[Any]] | Collection[int | float]],

meshSize: int | float = 0.0,

isHollow: bool = True,

isOpen: bool = False,

)

Bases: _Geom

Points class.

Get_Contour()

Creates a contour from the points.

Creates a fillet if a point has a radius which is not 0.

Get_coord_for_plot(

N: int = None,

) → tuple[ndarray[tuple[Any, ...], dtype[floating]], ndarray[tuple[Any, ...], dtype[floating]]]

Returns lines and points coordinates for plotting.

Parameters:

N (int, optional) – Number of coordinates for lines, by default None.

Returns:

Lines and points coordinates as NumPy arrays.

Return type:

tuple of ndarray

_Init_Ninstance()

Initializes the instance number.

property length: float

class EasyFEA.Geoms._Geom(

points: list[Point],

meshSize: int | float,

name: str,

isHollow: bool,

isOpen: bool,

)

Bases: ABC

Geometric class.

static Plot_Geoms(

geoms: list[_Geom],

ax: Axes | None = None,

color: str = '',

name: str = '',

plotPoints: bool = True,

plotLegend: bool = True,

) → Axes

Plots a list of geometric objects on the same axis.

Parameters:

• geoms (list of _Geom) – Geometries to plot.

• ax (matplotlib axis, optional) – Axis to use. If None, a new one is created.

• color (str, optional) – Line color.

• name (str, optional) – Label for the geometries.

• plotPoints (bool, optional) – Whether to plot defining points.

• plotLegend (bool, optional) – Whether to display the legend.

Returns:

The axis with the plotted geometries.

Return type:

Axes

abstractmethod static _Init_Ninstance()

Initializes the instance number.

abstractmethod Get_coord_for_plot(

N: int = None,

) → tuple[ndarray[tuple[Any, ...], dtype[floating]], ndarray[tuple[Any, ...], dtype[floating]]]

Returns lines and points coordinates for plotting.

Parameters:

N (int, optional) – Number of coordinates for lines, by default None.

Returns:

Lines and points coordinates as NumPy arrays.

Return type:

tuple of ndarray

Mesh_2D(

inclusions: list[GeomCompatible] = [],

elemType: ElemType = ElemType.TRI3,

cracks: list['CrackCompatible'] = [],

refineGeoms: list['RefineCompatible'] = [],

isOrganised=False,

additionalSurfaces: list[GeomCompatible] = [],

additionalLines: list['Line' | 'CircleArc'] = [],

additionalPoints: list['Point'] = [],

path='',

)

Creates a 2D mesh from a contour and inclusions that must form a closed plane surface.

Parameters:

• inclusions (list[Domain, Circle, Points, Contour], optional) – list of hollow and filled geom objects inside the domain

• elemType (ElemType, optional) – element type, by default “TRI3” [“TRI3”, “TRI6”, “TRI10”, “TRI15”, “QUAD4”, “QUAD8”, “QUAD9”]

• cracks (list[Line | Points | Contour | CircleArc]) – list of geom object used to create open or closed cracks

• refineGeoms (list[Domain|Circle|str], optional) – list of geom object for mesh refinement, by default []

• isOrganised (bool, optional) – mesh is organized, by default False

• additionalSurfaces (list[Domain, Circle, Points, Contour]) – additional surfaces that will be added to or removed from the surfaces created by the contour and the inclusions. (e.g Domain, Circle, Contour, Points). Tip: if the mesh is not well generated, you can also give the inclusions.

• additionalLines (list[Union[Line,CircleArc]]) – additional lines that will be added to the surfaces created by the contour and the inclusions. (e.g Domain, Circle, Contour, Points). WARNING: lines must be within the domain.

• additionalPoints (list[Point]) – additional points that will be added to the surfaces created by the contour and the inclusions. WARNING: points must be within the domain.

• path (str, optional) – path used to save the meshfile, by default “” does not save the mesh

Returns:

Created mesh

Return type:

Mesh

Mesh_Extrude(

inclusions: list[GeomCompatible] = [],

extrude: _types.Coords = (0, 0, 1),

layers: list[int] = [],

elemType: ElemType = ElemType.TETRA4,

cracks: list['CrackCompatible'] = [],

refineGeoms: list['RefineCompatible'] = [],

isOrganised=False,

additionalSurfaces: list[GeomCompatible] = [],

additionalLines: list['Line' | 'CircleArc'] = [],

additionalPoints: list['Point'] = [],

path='',

)

Creates a 3D mesh by extruding a surface constructed from a contour and inclusions.

Parameters:

• inclusions (list[Domain, Circle, Points, Contour], optional) – list of hollow and filled geom objects inside the domain

• extrude (Coords, optional) – extrusion vector, by default [0,0,1]

• layers (list[int], optional) – layers in the extrusion, by default []

• elemType (ElemType, optional) – element type, by default “TETRA4” [“TETRA4”, “TETRA10”, “HEXA8”, “HEXA20”, “HEXA27”, “PRISM6”, “PRISM15”, “PRISM18”]

• cracks (list[Line | Points | Contour | CircleArc]) – list of geom object used to create open or closed cracks

• refineGeoms (list[Domain|Circle|str], optional) – list of geom object for mesh refinement, by default []

• isOrganised (bool, optional) – mesh is organized, by default False

• additionalSurfaces (list[Domain, Circle, Points, Contour]) – additional surfaces that will be added to or removed from the surfaces created by the contour and the inclusions. (e.g Domain, Circle, Contour, Points). Tip: if the mesh is not well generated, you can also give the inclusions.

• additionalLines (list[Union[Line,CircleArc]]) – additional lines that will be added to the surfaces created by the contour and the inclusions. (e.g Domain, Circle, Contour, Points). WARNING: lines must be within the domain.

• additionalPoints (list[Point]) – additional points that will be added to the surfaces created by the contour and the inclusions. WARNING: points must be within the domain.

• path (str, optional) – path used to save the meshfile, by default “” does not save the mesh

Returns:

Created mesh

Return type:

Mesh

Mesh_Revolve(

inclusions: list[GeomCompatible] = [],

axis: 'Line' | None = None,

angle=360,

layers: list[int] = [30],

elemType: ElemType = ElemType.TETRA4,

cracks: list['CrackCompatible'] = [],

refineGeoms: list['RefineCompatible'] = [],

isOrganised=False,

additionalSurfaces: list[GeomCompatible] = [],

additionalLines: list['Line' | 'CircleArc'] = [],

additionalPoints: list['Point'] = [],

path='',

)

Creates a 3D mesh by rotating a surface along an axis.

Parameters:

• inclusions (list[Domain, Circle, Points, Contour], optional) – list of hollow and filled geom objects inside the domain

• axis (Line, optional) – revolution axis, by default Line((0, 0), (0, 1))

• angle (float|int, optional) – revolution angle in [deg], by default 360

• layers (list[int], optional) – layers in extrusion, by default [30]

• elemType (ElemType, optional) – element type, by default “TETRA4” [“TETRA4”, “TETRA10”, “HEXA8”, “HEXA20”, “HEXA27”, “PRISM6”, “PRISM15”, “PRISM18”]

• cracks (list[Line | Points | Contour | CircleArc]) – list of geom object used to create open or closed cracks

• refineGeoms (list[Domain|Circle|str], optional) – list of geom object for mesh refinement, by default []

• isOrganised (bool, optional) – mesh is organized, by default False

• additionalSurfaces (list[Domain, Circle, Points, Contour]) – additional surfaces that will be added to or removed from the surfaces created by the contour and the inclusions. (e.g Domain, Circle, Contour, Points). Tip: if the mesh is not well generated, you can also give the inclusions.

• additionalLines (list[Union[Line,CircleArc]]) – additional lines that will be added to the surfaces created by the contour and the inclusions. (e.g Domain, Circle, Contour, Points). WARNING: lines must be within the domain.

• additionalPoints (list[Point]) – additional points that will be added to the surfaces created by the contour and the inclusions. WARNING: points must be within the domain.

• path (str, optional) – path used to save the meshfile, by default “” does not save the mesh

Returns:

Created mesh

Return type:

Mesh

Plot(

ax: Axes | None = None,

color: str = '',

name: str = '',

lw: int | float | None = None,

ls: str | None = None,

plotPoints: bool = True,

) → Axes

Plots the geometry using Matplotlib.

Parameters:

• ax (matplotlib axis, optional) – Axis to plot on. If None, a new one is created.

• color (str, optional) – Line color.

• name (str, optional) – Label for the object.

• lw (float, optional) – Line width.

• ls (str, optional) – Line style.

• plotPoints (bool, optional) – If True, display the object’s defining points.

Returns:

The axis with the plotted geometry.

Return type:

Axes

Rotate(

theta: float,

center: tuple = (0, 0, 0),

direction: tuple = (0, 0, 1),

) → None

Rotates the object coordinates around an axis.

Parameters:

• theta (float) – rotation angle in [deg]

• center (tuple, optional) – rotation center, by default (0,0,0)

• direction (tuple, optional) – rotation direction, by default (0,0,1)

Symmetry(

point: ndarray[tuple[Any, ...], dtype[Any]] | Collection[int | float] = (0, 0, 0),

n: ndarray[tuple[Any, ...], dtype[Any]] | Collection[int | float] = (1, 0, 0),

) → None

Reflects the geometry with respect to a plane.

Parameters:

• point (Coords, optional) – A point on the reflection plane, by default (0, 0, 0).

• n (Coords, optional) – Normal vector of the plane, by default (1, 0, 0).

Translate(dx: float = 0.0, dy: float = 0.0, dz: float = 0.0) → None

Translates the geometry in 3D space.

Parameters:

• dx (float, optional) – Translation along the x-axis, by default 0.0.

• dy (float, optional) – Translation along the y-axis, by default 0.0.

• dz (float, optional) – Translation along the z-axis, by default 0.0.

copy()

property coord: ndarray[tuple[Any, ...], dtype[floating]]

Returns the coordinates of all points as a NumPy array.

isHollow: bool

Indicates whether the formed geometry is hollow.

isOpen: bool

Indicates whether the geometry is open, typically to model cracks.

meshSize: float

Element size used for meshing.

name: str

Name of the geometric object.

property points: list[Point]

The list of points used to build the geometric object.

EasyFEA.Geoms.Angle_Between(

a: ndarray[tuple[Any, ...], dtype[Any]],

b: ndarray[tuple[Any, ...], dtype[Any]],

) → float

Computes the angle between vectors a and b (rad). https://math.stackexchange.com/questions/878785/how-to-find-an-angle-in-range0-360-between-2-vectors

EasyFEA.Geoms.AsCoords(

value: ndarray[tuple[Any, ...], dtype[Any]] | Collection[int | float] | int | float | Point,

) → ndarray[tuple[Any, ...], dtype[floating]]

EasyFEA.Geoms.AsCoords(value: Point)

EasyFEA.Geoms.AsCoords(value: Iterable)

EasyFEA.Geoms.AsCoords(value: int)

EasyFEA.Geoms.AsCoords(value: float)

Returns value as a 3D vector

EasyFEA.Geoms.AsPoint(

coords: Point | ndarray[tuple[Any, ...], dtype[Any]] | Collection[int | float],

) → Point

EasyFEA.Geoms.AsPoint(coords: Point)

EasyFEA.Geoms.AsPoint(coords: Iterable)

Returns coords as a point.

EasyFEA.Geoms.Circle_Coords(

coord: ndarray[tuple[Any, ...], dtype[Any]],

R: float,

n: ndarray[tuple[Any, ...], dtype[Any]] | Collection[int | float],

) → ndarray[tuple[Any, ...], dtype[floating]]

Returns center from coordinates a radius and and a vector normal to the circle.

return center

EasyFEA.Geoms.Circle_Triangle(

p1,

p2,

p3,

) → ndarray[tuple[Any, ...], dtype[floating]]

Returns triangle’s center for the circumcicular arc formed by 3 points.

returns center

EasyFEA.Geoms.Fillet(

P0: ndarray[tuple[Any, ...], dtype[Any]],

P1: ndarray[tuple[Any, ...], dtype[Any]],

P2: ndarray[tuple[Any, ...], dtype[Any]],

r: float,

) → tuple[ndarray[tuple[Any, ...], dtype[floating]], ndarray[tuple[Any, ...], dtype[floating]], ndarray[tuple[Any, ...], dtype[floating]]]

Computes fillet in a corner P0.

returns A, B, C

Parameters:

• P0 (_types.AnyArray) – coordinates of point with radius

• P1 (_types.AnyArray) – coordinates before P0 coordinates

• P2 (_types.AnyArray) – coordinates after P0 coordinates

• r (float) – radius (or fillet) at point P0

Returns:

coordinates calculated to construct the radius

Return type:

tuple[_types.FloatArray, _types.FloatArray, _types.FloatArray]

EasyFEA.Geoms.Jacobian_Matrix(

i: ndarray[tuple[Any, ...], dtype[Any]] | Collection[int | float],

k: ndarray[tuple[Any, ...], dtype[Any]] | Collection[int | float],

) → ndarray[tuple[Any, ...], dtype[floating]]

Computes the Jacobian matrix to transform local coordinates (i,j,k) to global (x,y,z) coordinates.

p(x,y,z) = J • p(i,j,k) and p(i,j,k) = inv(J) • p(x,y,z)

ix jx kx

iy jy ky

iz jz kz

Parameters:

• i (_types.Coords) – i vector

• k (_types.Coords) – k vector

EasyFEA.Geoms.Normalize(

array: ndarray[tuple[Any, ...], dtype[Any]] | Collection[int | float],

) → ndarray[tuple[Any, ...], dtype[floating]]

Must be a vector or matrix.

EasyFEA.Geoms.Points_Intersect_Circles(

circle1,

circle2,

) → ndarray[tuple[Any, ...], dtype[Any]]

Computes the coordinates at the intersection of the two circles (i,3).

This only works if they’re on the same plane.

Parameters:

• circle1 (Circle) – circle 1

• circle2 (Circle) – circle 2

EasyFEA.Geoms.Rotate(

coord: ndarray[tuple[Any, ...], dtype[Any]],

theta: float,

center: ndarray[tuple[Any, ...], dtype[Any]] | Collection[int | float] = (0, 0, 0),

direction: ndarray[tuple[Any, ...], dtype[Any]] | Collection[int | float] = (0, 0, 1),

) → ndarray[tuple[Any, ...], dtype[floating]]

Rotates the coordinates arround a specified center and axis.

Parameters:

• coord (_types.AnyArray) – coordinates to rotate (n,3)

• theta (float) – rotation angle [deg]

• center (_types.Iterable, optional) – rotation center, by default (0,0,0)

• direction (_types.Iterable, optional) – rotation direction, by default (0,0,1)

Returns:

rotated coordinates

Return type:

_types.FloatArray

EasyFEA.Geoms.Symmetry(

coord: ndarray[tuple[Any, ...], dtype[Any]],

point=(0, 0, 0),

n=(1, 0, 0),

) → ndarray[tuple[Any, ...], dtype[floating]]

Symmetrizes coordinates with a plane.

Parameters:

• coord (_types.AnyArray) – coordinates that we want to symmetrise

• point (tuple, optional) – a point belonging to the plane, by default (0,0,0)

• n (tuple, optional) – normal to the plane, by default (1,0,0)

Returns:

the new coordinates

Return type:

_types.FloatArray

EasyFEA.Geoms.Translate(

coord: ndarray[tuple[Any, ...], dtype[Any]],

dx: float = 0.0,

dy: float = 0.0,

dz: float = 0.0,

) → ndarray[tuple[Any, ...], dtype[floating]]

Translates the coordinates.

EasyFEA.Geoms._Init_Geoms_NInstance()

Initalizes the number of instance for each geom classes.
