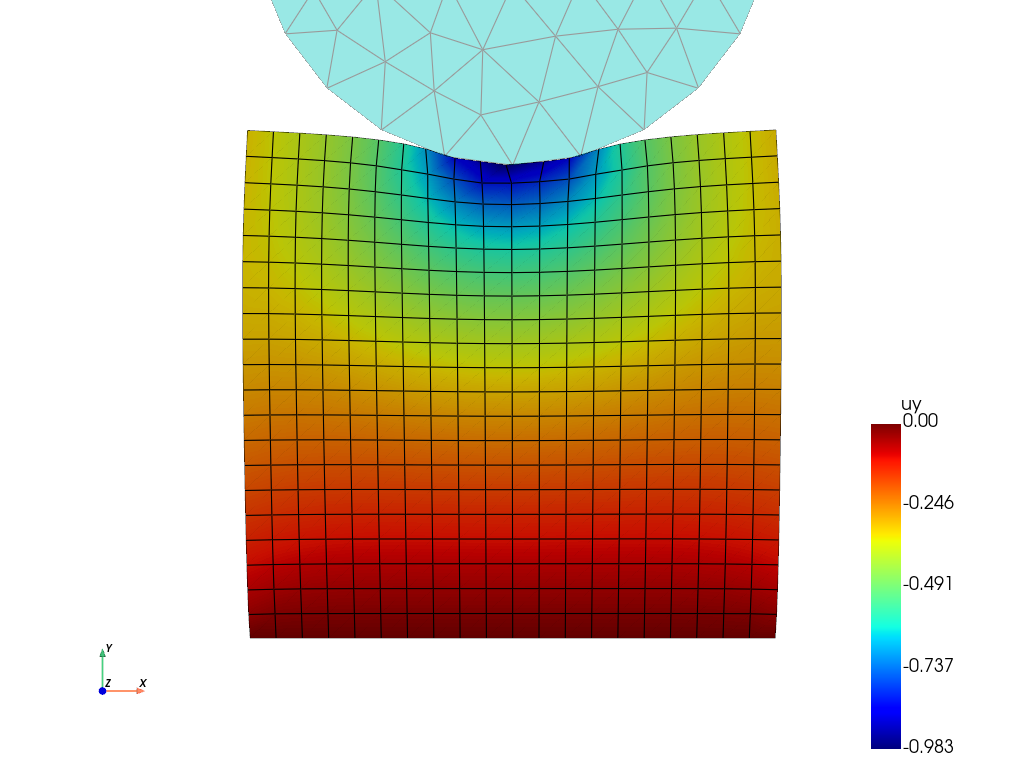

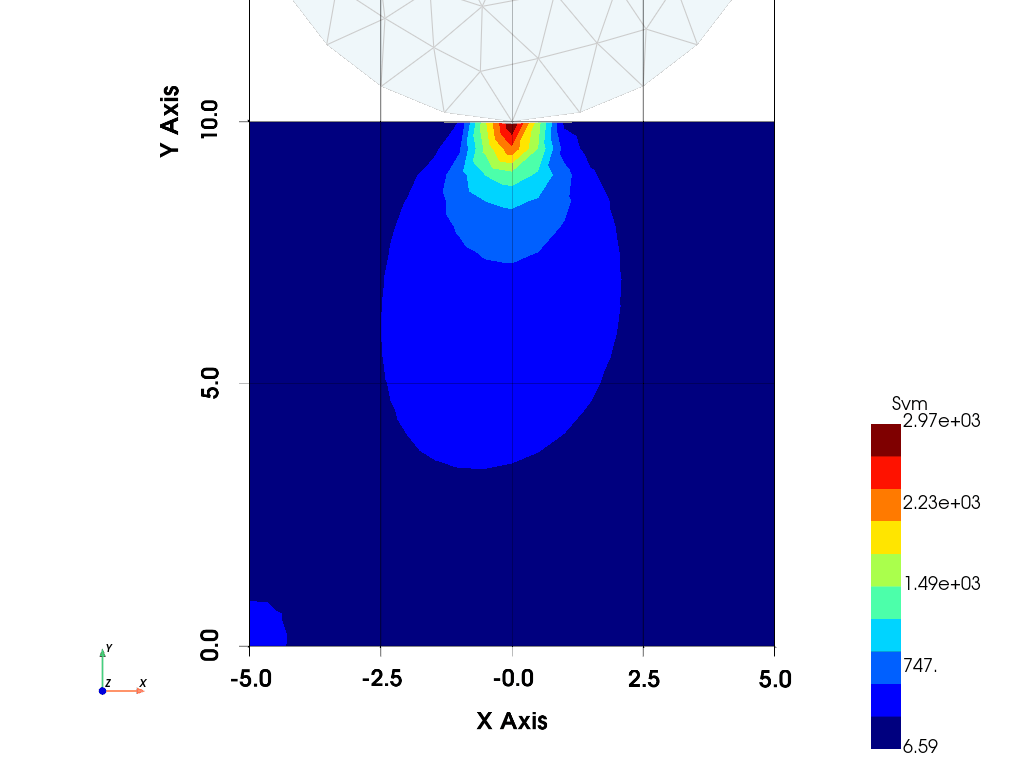

Performing a ‘Hertz contact problem’ with the assumption of frictionless contact The master mesh is considered non-deformable.
WARNING#
The assumption of small displacements is highly questionable for this simulation.
Eps max = 0.38 %
Eps max = 0.76 %
Eps max = 1.15 %
Eps max = 1.76 %
Eps max = 2.20 %
Eps max = 2.63 %
Eps max = 3.58 %
Eps max = 3.79 %
Eps max = 3.99 %
Eps max = 4.19 %
Eps max = 4.38 %
Eps max = 4.58 %
Eps max = 5.03 %
Eps max = 5.53 %
Eps max = 6.02 %
Eps max = 7.10 %
Eps max = 7.49 %
Eps max = 7.92 %
Eps max = 8.36 %
Eps max = 8.98 %
Eps max = 9.61 %
Eps max = 10.24 %
Eps max = 10.87 %
Eps max = 11.50 %
Eps max = 12.12 %
Eps max = 12.75 %
Eps max = 13.38 %
Eps max = 14.01 %
Eps max = 14.64 %
Eps max = 15.26 %
==================== Mesh ====================
Element type: QUAD4
Ne = 400, Nn = 441
==================== Model ====================
Isotropic:
E = 2.10e+05, v = 0.3
planeStress = True
thickness = 3.33e+00
solver : scipy
============= Boundary Conditions =============
Unspecified.
=================== Results ===================
W def = 202448.77
Svm max = 75667.12
Evm max = 46.01 %
Ux max = 1.39e-01
Ux min = -1.56e-01
Uy max = 0.00e+00
Uy min = -9.83e-01
=================== TicTac ===================
Mesh : 307.982 ms
Boundary Conditions : 1.088 ms
Matrix : 3.160 s
Solver : 2.807 s
Display : 492.430 ms
PostProcessing : 243.154 ms
Resolution hyperelastic : 5.848 s
PyVista_Interface : 2.394 s
Generate movie 01/30 (3.33 %) 17.33 s
Generate movie 02/30 (6.67 %) 9.05 s
Generate movie 03/30 (10.00 %) 7.08 s
Generate movie 04/30 (13.33 %) 6.85 s
Generate movie 05/30 (16.67 %) 6.58 s
Generate movie 06/30 (20.00 %) 6.39 s
Generate movie 07/30 (23.33 %) 5.98 s
Generate movie 08/30 (26.67 %) 5.77 s
Generate movie 09/30 (30.00 %) 5.56 s
Generate movie 10/30 (33.33 %) 5.29 s
Generate movie 11/30 (36.67 %) 5.15 s
Generate movie 12/30 (40.00 %) 5.10 s
Generate movie 13/30 (43.33 %) 5.05 s
Generate movie 14/30 (46.67 %) 4.35 s
Generate movie 15/30 (50.00 %) 3.99 s
Generate movie 16/30 (53.33 %) 3.87 s
Generate movie 17/30 (56.67 %) 3.42 s
Generate movie 18/30 (60.00 %) 3.18 s
Generate movie 19/30 (63.33 %) 2.94 s
Generate movie 20/30 (66.67 %) 2.72 s
Generate movie 21/30 (70.00 %) 2.45 s
Generate movie 22/30 (73.33 %) 2.12 s
Generate movie 23/30 (76.67 %) 1.86 s
Generate movie 24/30 (80.00 %) 1.57 s
Generate movie 25/30 (83.33 %) 1.31 s
Generate movie 26/30 (86.67 %) 1.07 s
Generate movie 27/30 (90.00 %) 809.84 ms
Generate movie 28/30 (93.33 %) 542.88 ms
Generate movie 29/30 (96.67 %) 266.37 ms
Generate movie 30/30 (100.00 %) 0.00 µs
16 # TODO: Compare results with analytical values ?
