Beginner’s Guide

Like any Python script, you should start by importing the core modules from the EasyFEA package:

from EasyFEA import Display, ElemType, Models, Simulations
from EasyFEA.Geoms import Domain

---

The most commonly used modules in EasyFEA are:

Display	Module containing functions used to display simulations and meshes with matplotlib (https://matplotlib.org/).
ElemType(value)	Implemented Lagrange isoparametric element types.
Models
Simulations	This module contains all available simulation classes.
Geoms	Module containing the geometric functions used to build meshes.

Let’s now create a 2D Mesh using a simple rectangular domain:

# ----------------------------------------------
# Mesh
# ----------------------------------------------
L = 120  # mm
h = 13

domain = Domain((0, 0), (L, h), h / 3)
mesh = domain.Mesh_2D([], ElemType.QUAD9, isOrganised=True)

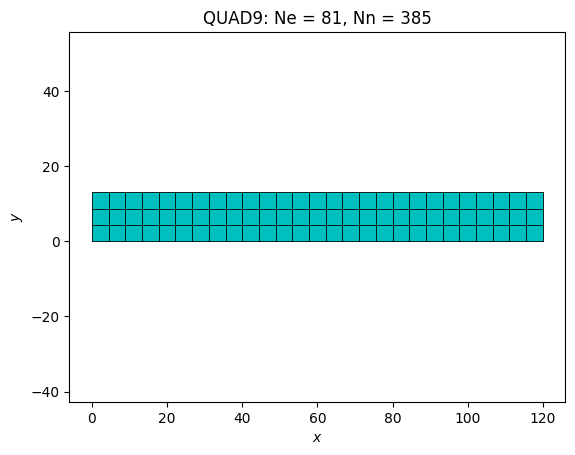

Display.Plot_Mesh(mesh)

<Axes: title={'center': 'QUAD9: Ne = 81, Nn = 385'}, xlabel='$x$', ylabel='$y$'>

---

Next, define a linear Isotropic material and set up the Elastic simulation:

# ----------------------------------------------
# Simulation
# ----------------------------------------------
E = 210000  # MPa
v = 0.3
F = -800  # N

mat = Models.Elastic.Isotropic(2, E, v, planeStress=True, thickness=h)

simu = Simulations.Elastic(mesh, mat)

---

Once the simulation has been set up, defining the boundary conditions, solving the problem and visualizing the results is straightforward.

nodesX0 = mesh.Nodes_Conditions(lambda x, y, z: x == 0)
nodesXL = mesh.Nodes_Conditions(lambda x, y, z: x == L)

simu.add_dirichlet(nodesX0, [0, 0], ["x", "y"])
simu.add_surfLoad(nodesXL, [F / h / h], ["y"])

simu.Solve()

# ----------------------------------------------
# Results
# ----------------------------------------------

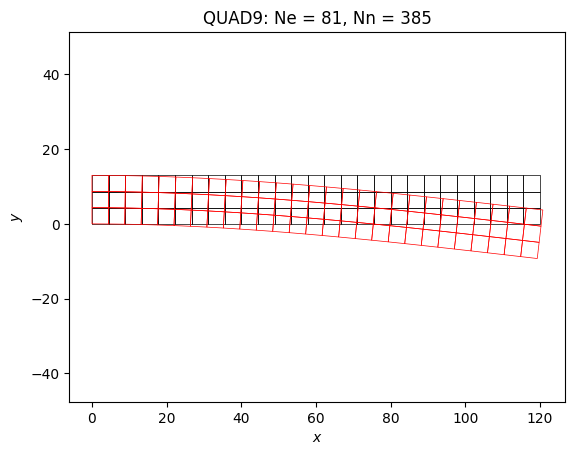

Display.Plot_Mesh(simu, deformFactor=10)

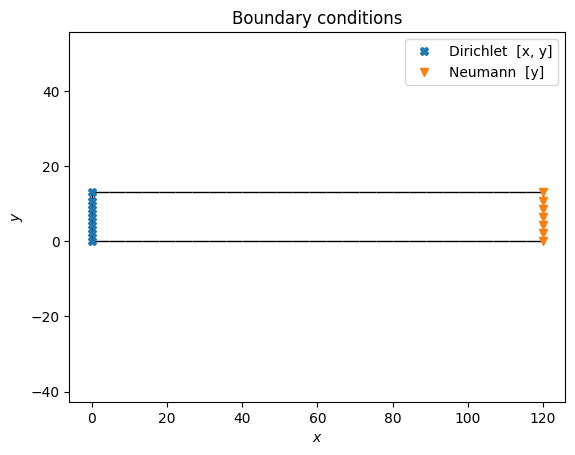

Display.Plot_BoundaryConditions(simu)

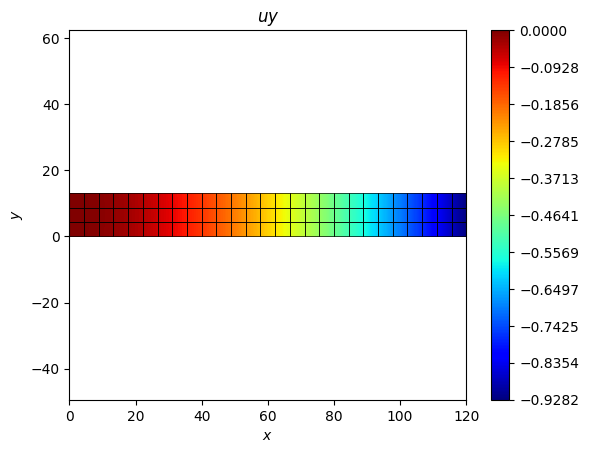

Display.Plot_Result(simu, "uy", plotMesh=True)

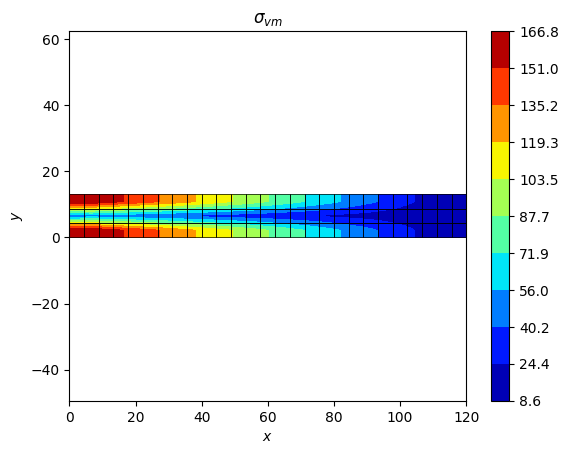

Display.Plot_Result(simu, "Svm", plotMesh=True, ncolors=11)

<Axes: title={'center': '$\\sigma_{vm}$'}, xlabel='$x$', ylabel='$y$'>

---

This script is available in the HelloWorld example.

For additional details, please refer to either the EasyFEA API documentation or the comprehensive collection of examples.
