Mesh8#

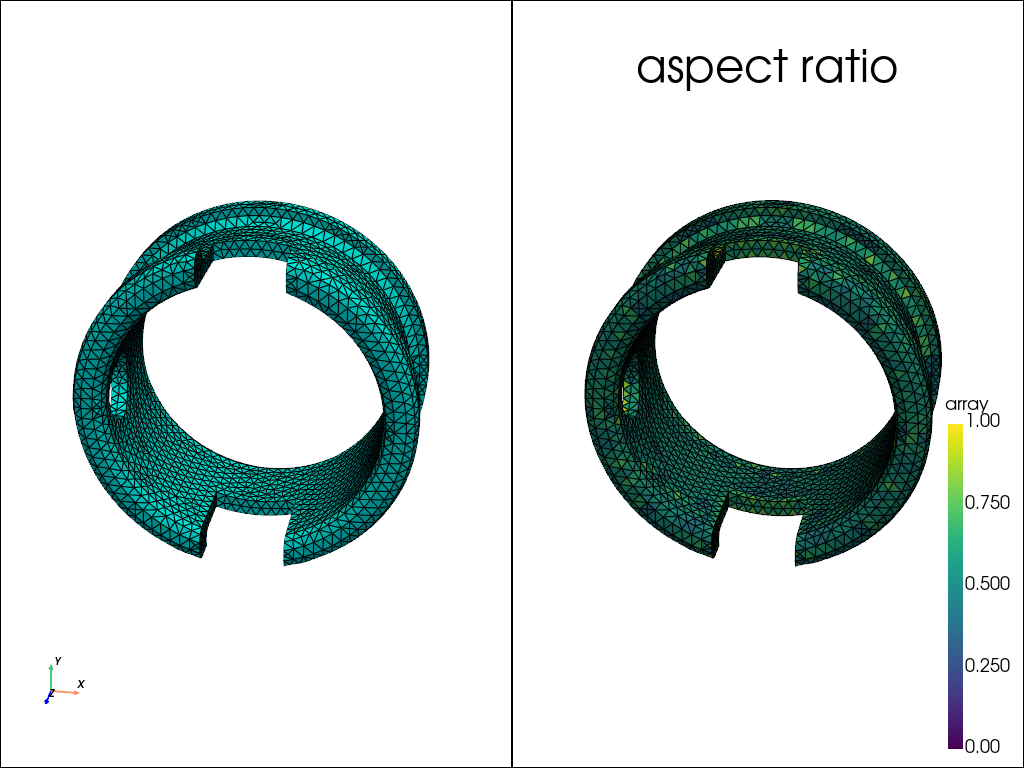

Meshing of a grooved 3D part with calculation of element quality.

Mesh8
Element type: TETRA4
Ne = 12305, Nn = 3996
volume = 658.400


 12 from EasyFEA import Display, np, Mesher, ElemType, gmsh, PyVista
 13 from EasyFEA.Geoms import Point, Circle, Points
 14
 15 if __name__ == "__main__":
 16     Display.Clear()
 17
 18     # ----------------------------------------------
 19     # Geom
 20     # ----------------------------------------------
 21     R = 10
 22     e = 2
 23     r = R - e
 24     h = R * 2 / 3
 25
 26     meshSize = e / 3
 27
 28     center = Point()
 29
 30     circle_ext = Circle(center, R * 2, meshSize)
 31     circle_int = Circle(center, r * 2, meshSize, True)
 32
 33     useFillet = circle_int.isHollow
 34     addCylinder = True
 35     addBox = True
 36     addRevolve = True
 37
 38     # ----------------------------------------------
 39     # Mesh
 40     # ----------------------------------------------
 41
 42     mesher = Mesher(False, False)
 43     # dim, elemType = 2, ElemType.TRI3
 44     dim, elemType = 3, ElemType.TETRA4
 45
 46     factory = mesher._factory
 47
 48     surfaces = mesher._Surfaces(circle_ext, [circle_int])[0]
 49     mesher._Extrude(surfaces, [0, 0, R], elemType)
 50     vol1 = factory.getEntities(3)
 51
 52     mesher._Synchronize()
 53
 54     if useFillet:
 55         surfs = gmsh.model.getBoundary(vol1)
 56         lines = gmsh.model.getBoundary(surfs, False)
 57         gmsh.model.occ.fillet([vol1[0][1]], [abs(line[1]) for line in lines], [e / 3])
 58
 59     if addCylinder:
 60         cylinder = factory.addCylinder(R + e, 0, h, -2 * R - e, 0, 0, e)
 61         factory.cut(vol1, [(3, cylinder)])
 62
 63     if addBox:
 64         box = factory.addBox(-R / 4, -R - e, R / 2, R / 2, 2 * R + e, R / 2)
 65         factory.cut(factory.getEntities(3), [(3, box)])
 66
 67     if addRevolve:
 68         p1 = Point(R - e / 2, 0, e, r=e / 4)
 69         p2 = Point(R, 0, e)
 70         p3 = Point(R, 0, e * 4)
 71         p4 = Point(R - e / 2, 0, e * 4, r=e / 4)
 72         contour = Points([p1, p2, p3, p4])
 73         surf = mesher._Surfaces(contour, [])[0][0]
 74
 75         rev1 = factory.revolve([(2, surf)], 0, 0, 0, 0, 0, R, np.pi)
 76         rev2 = factory.revolve([(2, surf)], 0, 0, 0, 0, 0, R, -np.pi)
 77         factory.cut(factory.getEntities(3), [rev1[1], rev2[1]])
 78
 79     mesher._Synchronize()
 80
 81     if meshSize > 0:
 82         mesher.Set_meshSize(meshSize)
 83
 84     mesher._Set_PhysicalGroups(
 85         setPoints=False, setLines=True, setSurfaces=True, setVolumes=False
 86     )
 87
 88     mesher._Mesh_Generate(dim, elemType)
 89
 90     mesh = mesher._Mesh_Get_Mesh()
 91
 92     # ----------------------------------------------
 93     # Plot
 94     # ----------------------------------------------
 95
 96     print(mesh)
 97
 98     if dim == 3:
 99         print(f"volume = {mesh.volume:.3f}")
100
101     plotter = PyVista._Plotter(shape=(1, 2))
102
103     PyVista.Plot_Mesh(mesh, plotter=plotter)
104
105     plotter.subplot(0, 1)
106     plotter.add_title("aspect ratio")
107     qual = mesh.Get_Quality()
108     PyVista.Plot_Elements(mesh, dimElem=1, plotter=plotter, color="k")
109     PyVista.Plot(
110         mesh,
111         qual,
112         nodeValues=False,
113         cmap="viridis",
114         clim=(0, 1),
115         plotMesh=True,
116         plotter=plotter,
117     ).show()
