MeshOptim2

Mesh optimization with the ZZ1 criterion for a bending part.

Static Scene

Interactive Scene

Static Scene

Interactive Scene

Static Scene

Interactive Scene

Static Scene

Interactive Scene

Static Scene

Interactive Scene

/home/docs/checkouts/readthedocs.org/user_builds/easyfea/envs/v1.6.1/lib/python3.11/site-packages/EasyFEA/utilities/PyVista.py:950: PyVistaDeprecationWarning:
../../../../envs/v1.6.1/lib/python3.11/site-packages/EasyFEA/utilities/PyVista.py:950: Arguments 'pointa', 'pointb', 'center' must be passed as keyword arguments to function 'CircularArc'.
From version 0.50, passing these as positional arguments will result in a TypeError.
  return pv.CircularArc(
error = 90.460 %
error = 89.395 %
error = 40.821 %
error = 21.594 %
error = 9.857 %
error = 4.697 %
error = 1.326 %
error = 0.502 %

Generate movie 0/7
Generate movie 1/7 (14.29 %) 1.34 s
Generate movie 2/7 (28.57 %) 1.11 s
Generate movie 3/7 (42.86 %) 891.99 ms
Generate movie 4/7 (57.14 %) 682.80 ms
Generate movie 5/7 (71.43 %) 476.21 ms
Generate movie 6/7 (85.71 %) 264.72 ms
Generate movie 7/7 (100.00 %) 0.00 µs

from EasyFEA import (
    Display,
    Folder,
    Models,
    Tic,
    plt,
    np,
    Mesher,
    ElemType,
    Mesh,
    Simulations,
    Paraview,
    PyVista,
)
from EasyFEA.Geoms import Point, Points
from EasyFEA.fem import Calc_projector

if __name__ == "__main__":
    Display.Clear()

    # ----------------------------------------------
    # Configuration
    # ----------------------------------------------
    dim = 2

    # geom
    L = 120
    h = L * 2 / 3
    b = h
    r = h / (2 + 1e-2)
    e = (L - 2 * r) / 2

    # outputs
    folder = Folder.Join(Folder.RESULTS_DIR, "Meshes", "MeshOptim2")
    plotProj = False
    makeMovie = True
    makeParaview = False

    # load
    P = 800  # N
    lineLoad = P / h  # N/mm
    surfLoad = P / h / b  # N/mm2

    # criteria
    threshold = (
        1 / 100 if dim == 2 else 0.04
    )  # Target error for the optimization process
    iterMax = 20  # Maximum number of iterations
    coef = 1 / 10  # Scaling coefficient for the optimization process

    # ----------------------------------------------
    # Mesh
    # ----------------------------------------------
    if dim == 2:
        elemType = ElemType.TRI3
    else:
        elemType = ElemType.TETRA4
    meshSize = h / 10

    pt1 = Point()
    pt2 = Point(e, 0)
    pt3 = Point(e, r, r=r)
    pt4 = Point(L - e, r, r=r)
    pt5 = Point(L - e, 0)
    pt6 = Point(L, 0)

    pt7 = Point(L, h)
    pt8 = Point(L - e, h)
    pt9 = Point(L - e, h - r, r=r)
    pt10 = Point(e, h - r, r=r)
    pt11 = Point(e, h)
    pt12 = Point(0, h)

    points = Points(
        [pt1, pt2, pt3, pt4, pt5, pt6, pt7, pt8, pt9, pt10, pt11, pt12], meshSize
    )
    inclusions = []

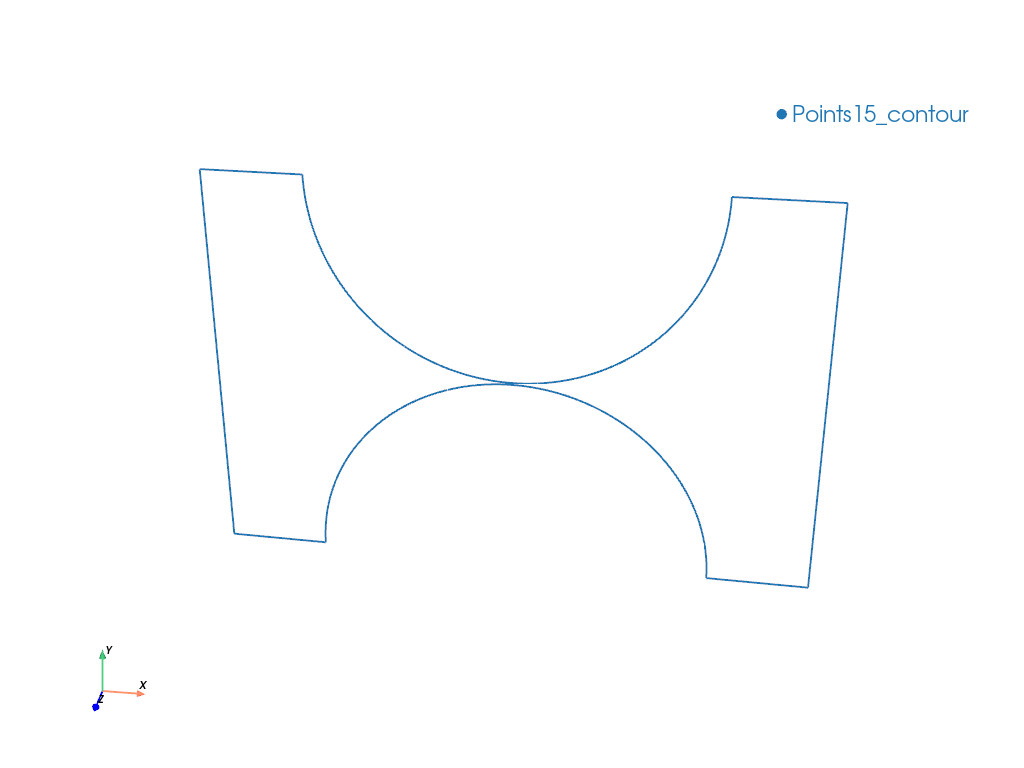

    PyVista.Plot_Geoms(points.Get_Contour()).show()

    def DoMesh(refineGeom=None) -> Mesh:
        """Function used to generate the mesh."""
        if dim == 2:
            return Mesher().Mesh_2D(points, inclusions, elemType, [], [refineGeom])
        else:
            return Mesher().Mesh_Extrude(
                points, inclusions, [0, 0, b], [], elemType, [], [refineGeom]
            )

    # Construct the initial mesh
    mesh = DoMesh()

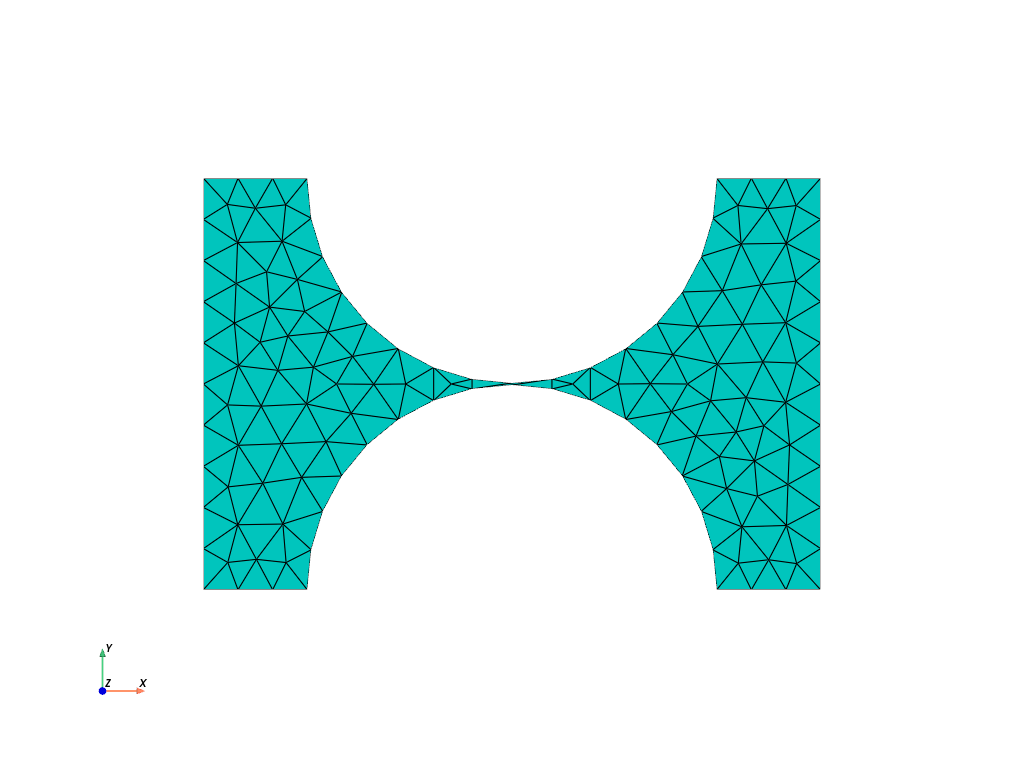

    PyVista.Plot_Mesh(mesh).show()

    # ----------------------------------------------
    # Material and Simulation
    # ----------------------------------------------
    material = Models.ElasIsot(dim, E=210000, v=0.3, thickness=b)
    simu = Simulations.ElasticSimu(mesh, material)
    simu.rho = 8100 * 1e-9

    def DoSimu(refineGeom: str):
        simu.mesh = DoMesh(refineGeom)

        # get the nodes
        nodes_Fixed = simu.mesh.Nodes_Conditions(lambda x, y, z: x == 0)
        nodes_Load = simu.mesh.Nodes_Conditions(lambda x, y, z: x == L)

        # do the simulation
        simu.Bc_Init()
        simu.add_dirichlet(
            nodes_Fixed, [0] * dim, simu.Get_unknowns(), description="Fixed"
        )
        simu.add_surfLoad(nodes_Load, [-surfLoad], ["y"])

        simu.Solve()

        simu.Save_Iter()

        return simu

    simu = Simulations.Mesh_Optim_ZZ1(DoSimu, folder, threshold, iterMax, 1 / 10)

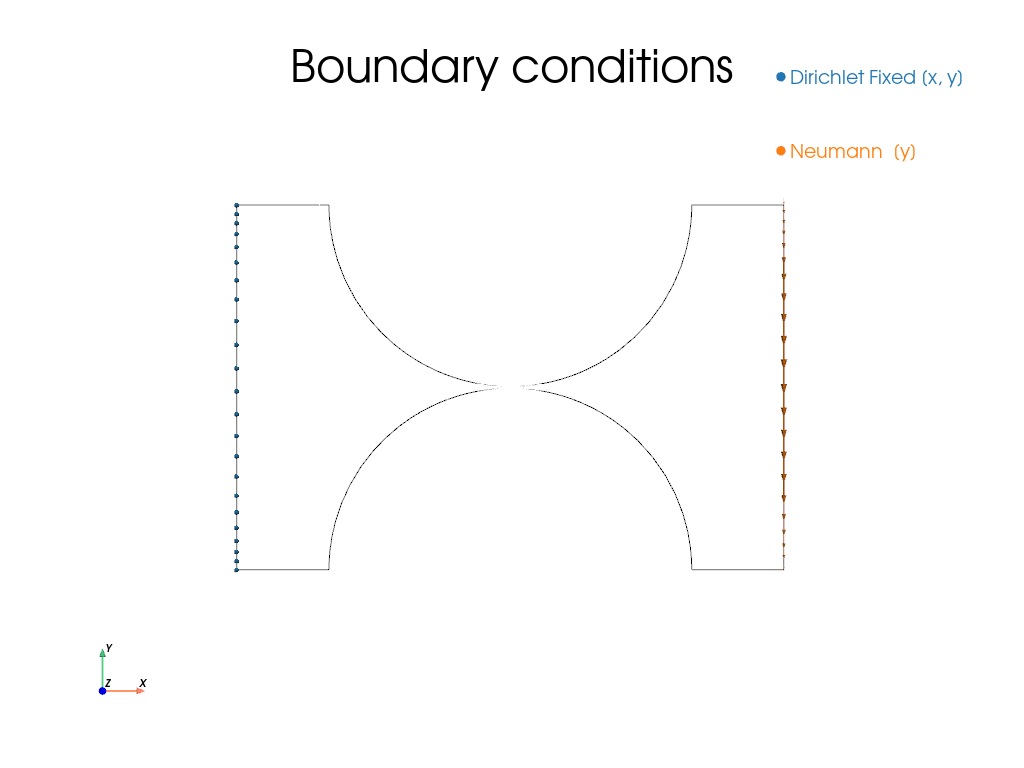

    PyVista.Plot_BoundaryConditions(simu).show()

    # ----------------------------------------------
    # Results
    # ----------------------------------------------

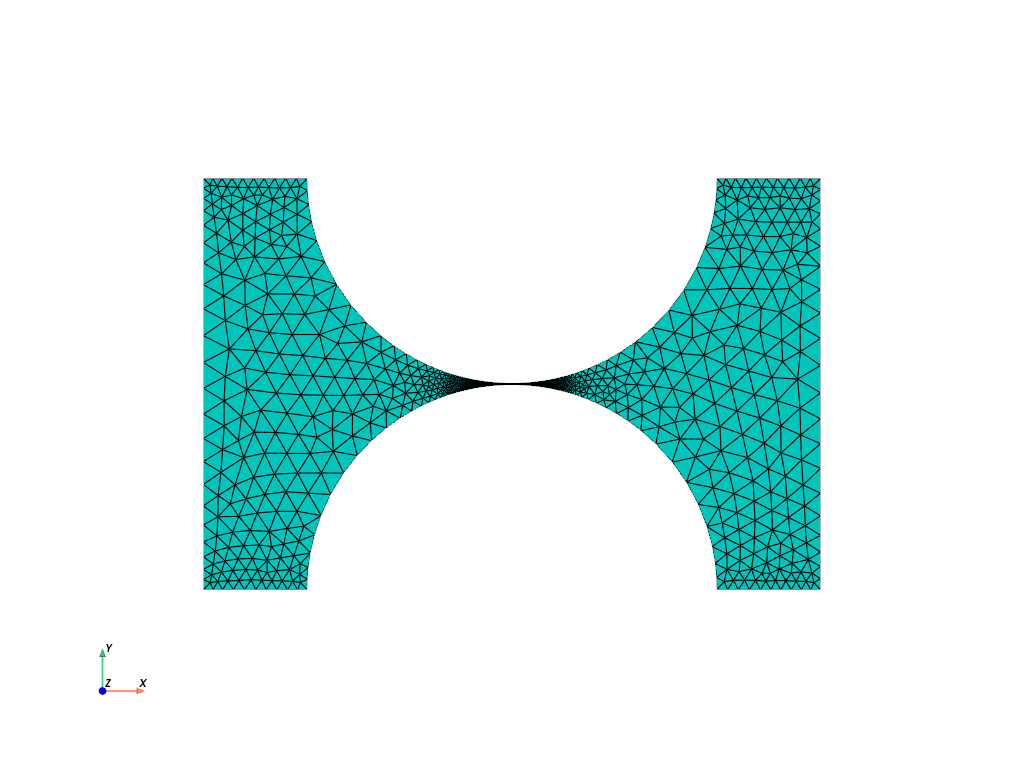

    PyVista.Plot_Mesh(simu.mesh).show()

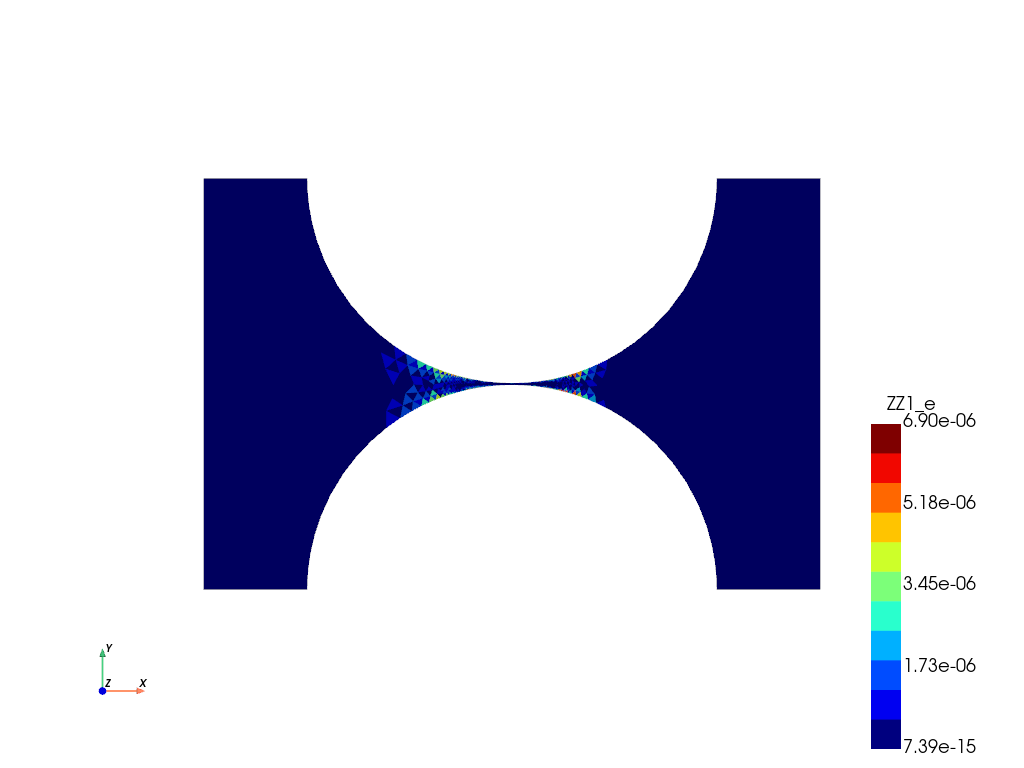

    PyVista.Plot(simu, "ZZ1_e", nodeValues=False, nColors=11).show()

    if plotProj:
        simu.Set_Iter(0)
        mesh0 = simu.mesh
        u0 = np.reshape(simu.displacement, (mesh0.Nn, -1))

        simu.Set_Iter(1)
        mesh1 = simu.mesh

        proj = Calc_projector(mesh0, mesh1)
        uProj = np.zeros((mesh1.Nn, dim), dtype=float)
        for d in range(dim):
            uProj[:, d] = proj @ u0[:, d]

        ax = Display.Plot_Result(
            mesh0, np.linalg.norm(u0, axis=1), plotMesh=True, title="u0"
        )
        ax.plot(*mesh1.coord[:, :dim].T, ls="", marker="+", c="k", label="new nodes")
        ax.legend()
        Display.Plot_Result(
            mesh1, np.linalg.norm(uProj, axis=1), plotMesh=True, title="uProj"
        )

    if makeParaview:
        Paraview.Save_simu(simu, folder, nodeFields=["ZZ1_e"])

    if makeMovie:

        def func(plotter, n):
            simu.Set_Iter(n)

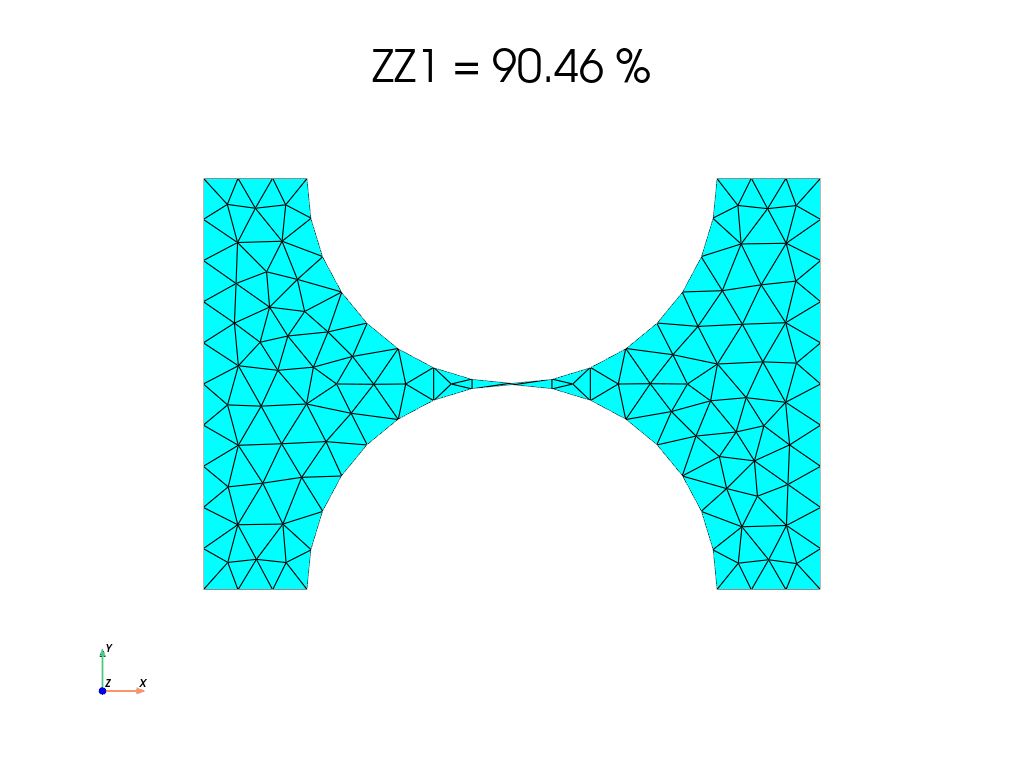

            PyVista.Plot_Mesh(simu, plotter=plotter)

            zz1 = simu._Calc_ZZ1()[0]

            plotter.add_title(f"ZZ1 = {zz1 * 100:.2f} %")

        PyVista.Movie_func(func, len(simu.results), folder, "lmt.gif")

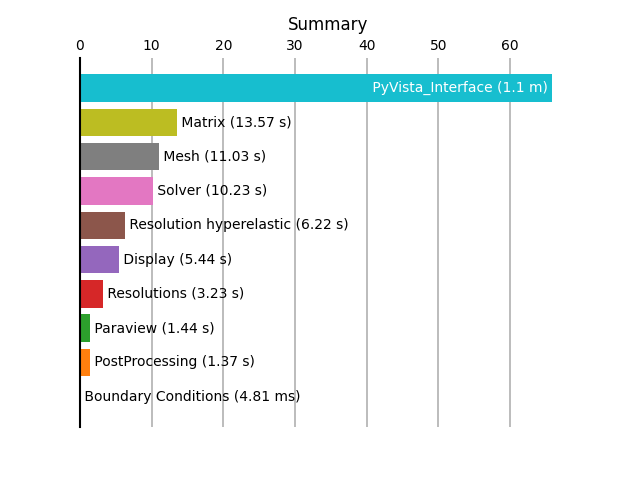

    Tic.Plot_History()
    plt.show()
