Mesh12#

Meshing of a part designed by cad software.

Mesh12
Mesh12
12 from EasyFEA import Display, Folder, Mesher, ElemType, PyVista
13
14 if __name__ == "__main__":
15     Display.Clear()
16
17     parts_dir = Folder.os.path.abspath("../_parts")
18
19     stp = Folder.Join(parts_dir, "beam.stp")
20     mesh_stp = Mesher().Mesh_Import_part(stp, 3, 13 / 5, ElemType.TETRA4)
21
22     igs = Folder.Join(parts_dir, "beam.igs")
23     mesh_igs = Mesher().Mesh_Import_part(igs, 3, 13 / 5, ElemType.TETRA10)
24     # An igs file will provide a contour mesh only.
25
26     pltr1 = PyVista.Plot_Mesh(mesh_stp)
27     pltr1.add_title("beam.stp")
28     pltr1.show()
29
30     pltr2 = PyVista.Plot_Mesh(mesh_igs)

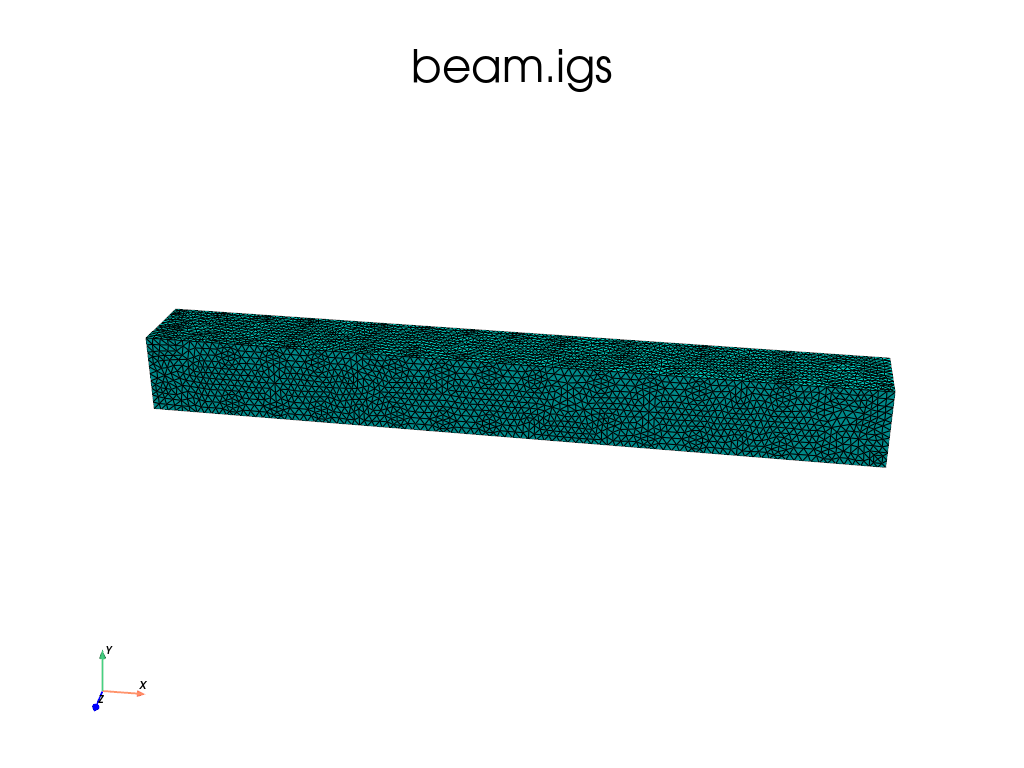

31     pltr2.add_title("beam.igs")
32     pltr2.show()

Total running time of the script: (0 minutes 0.793 seconds)
