Mesh3_3D

Meshing a 3D domain with hole.

Static Scene

Interactive Scene

Static Scene

Interactive Scene

from EasyFEA import Display, ElemType, PyVista
from EasyFEA.Geoms import Domain, Circle

if __name__ == "__main__":
    Display.Clear()

    contour = Domain((0, 0), (1, 1), 1 / 10)
    circle = Circle((1 / 2, 1 / 2), 1 / 3, 1 / 10, isFilled=False)

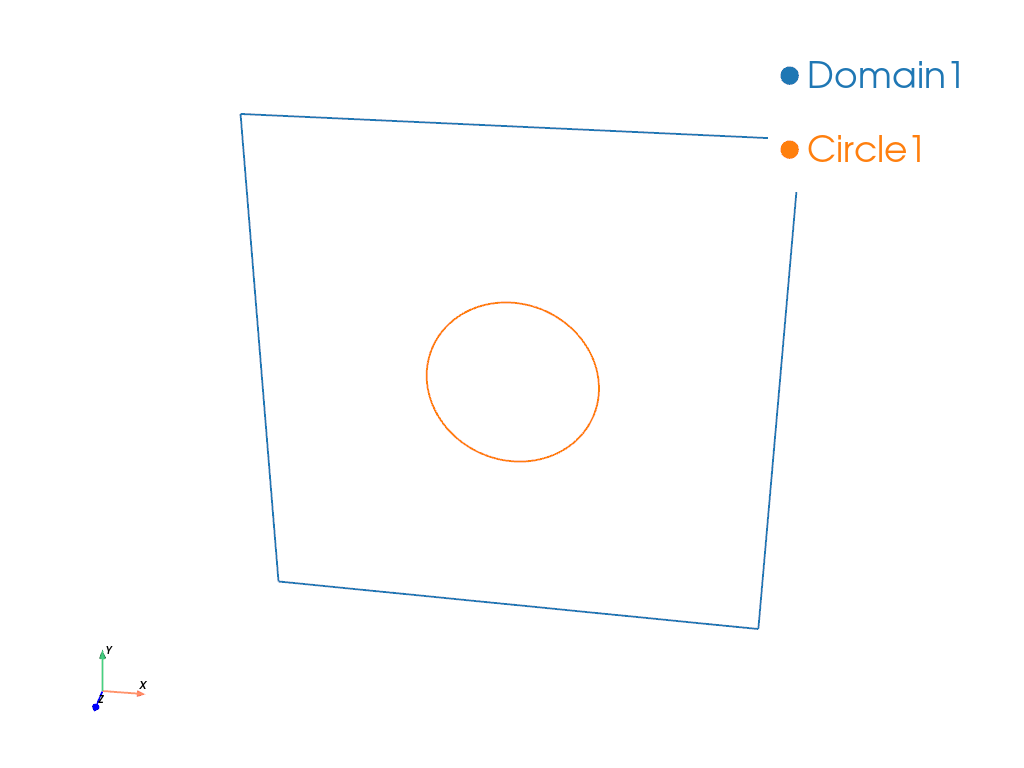

    PyVista.Plot_Geoms([contour, circle]).show()

    # "TETRA4", "TETRA10", "HEXA8", "HEXA20", "HEXA27", "PRISM6", "PRISM15", "PRISM18"
    elemType = ElemType.PRISM15

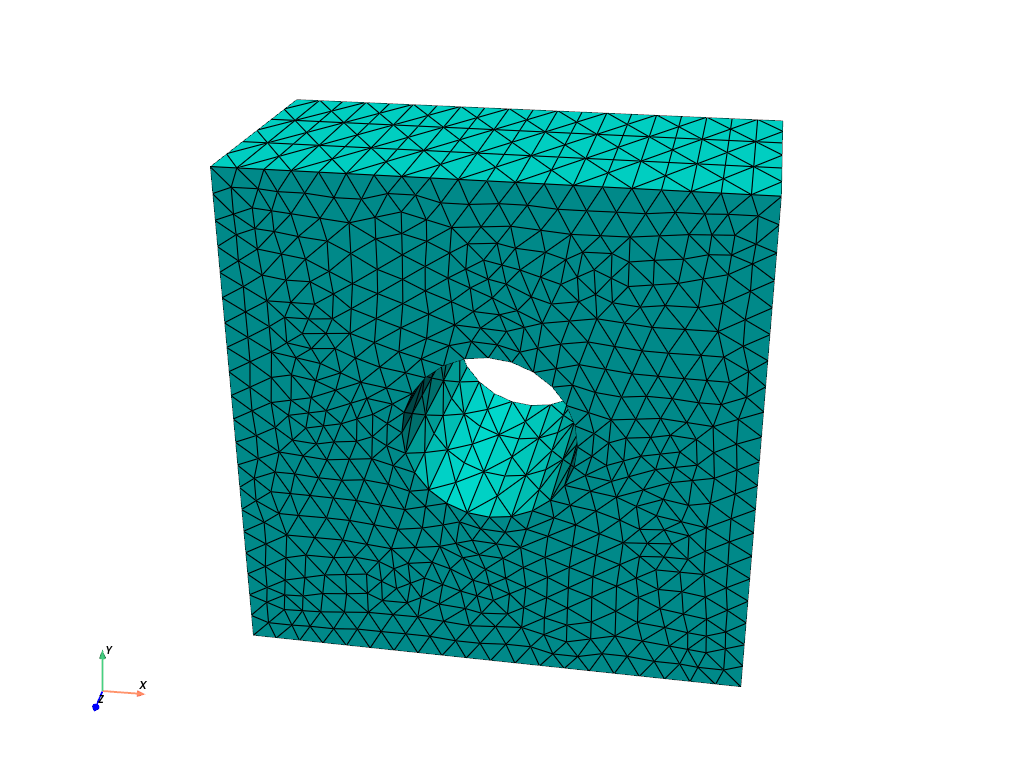

    mesh = contour.Mesh_Extrude([circle], [0, 0, 0.5], [3], elemType, isOrganised=True)
    PyVista.Plot_Mesh(mesh).show()
