Examples#

Contains example scripts demonstrating the use of numerous simulations that can be run with EasyFEA.

New to EasyFEA? Start with the HelloWorld script described in the Beginner’s Guide.

Folder	Description
Beam	Euler-Bernoulli and Timoshenko beam simulations (1D/2D/3D).
DIC	Digital Image Correlation analyses.
LinearizedElasticity	Elastostatic, dynamic, contact, homogenization, and mesh optimization.
Hyperelasticity	Nonlinear hyperelastic static and dynamic simulations.

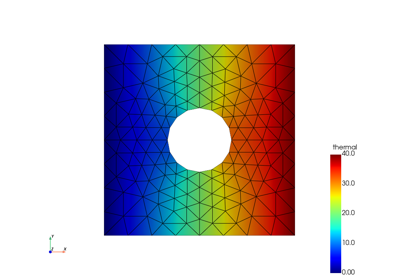

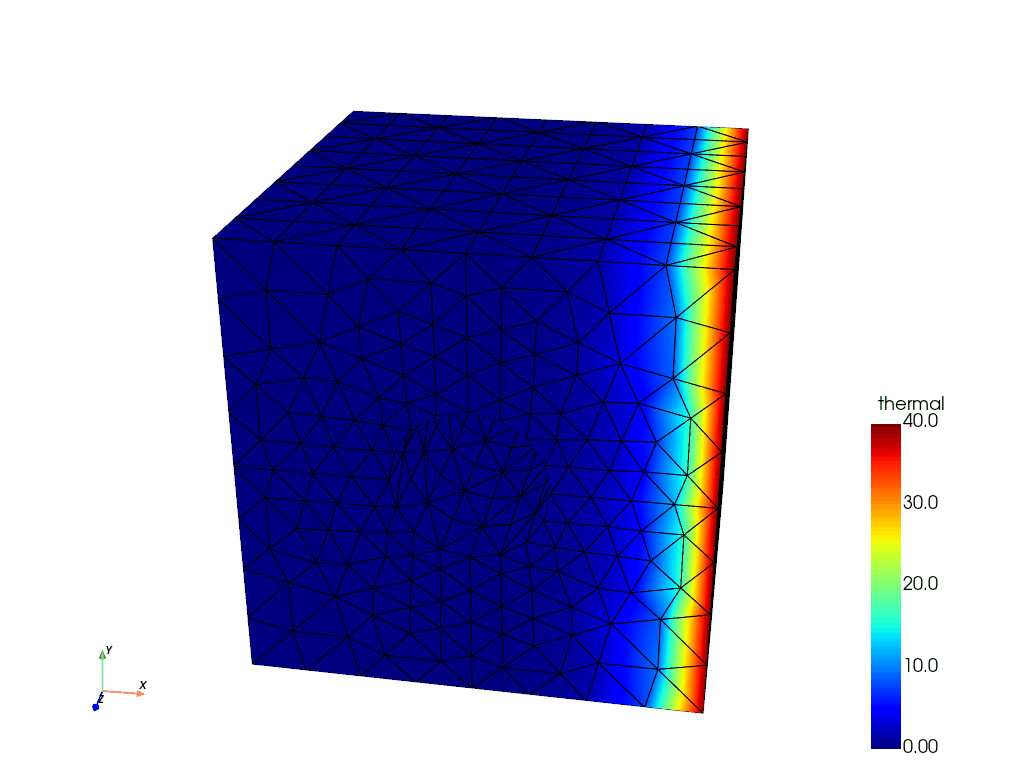

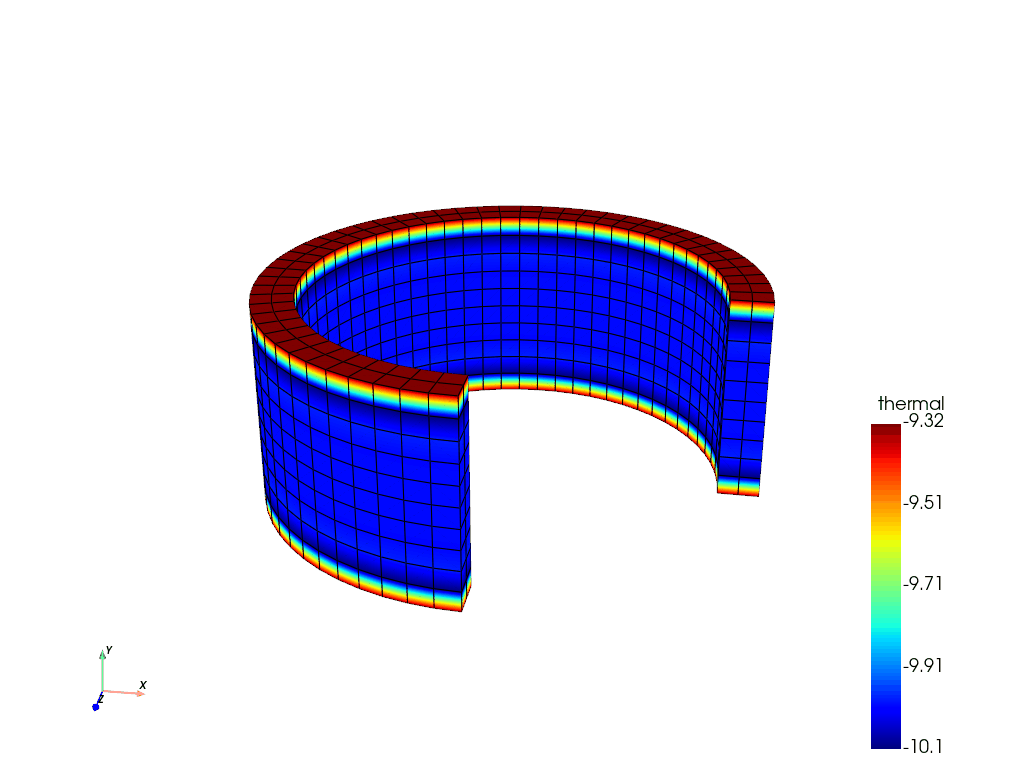

Thermal	Static and transient thermal simulations.
PhaseField	Quasi-static brittle fracture via phase-field damage models.

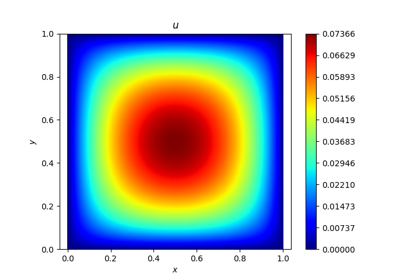

WeakForms	Static, transient, and dynamic simulations (linear & nonlinear).
Meshes	Mesh creation examples (2D and 3D geometries).

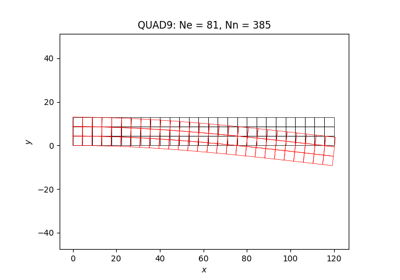

HelloWorld

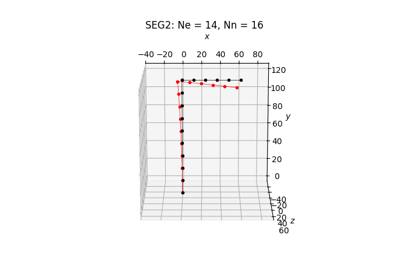

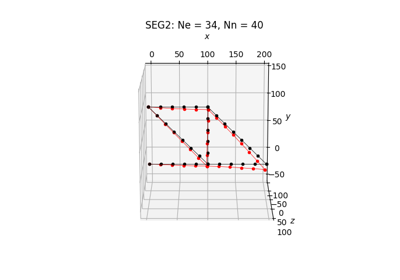

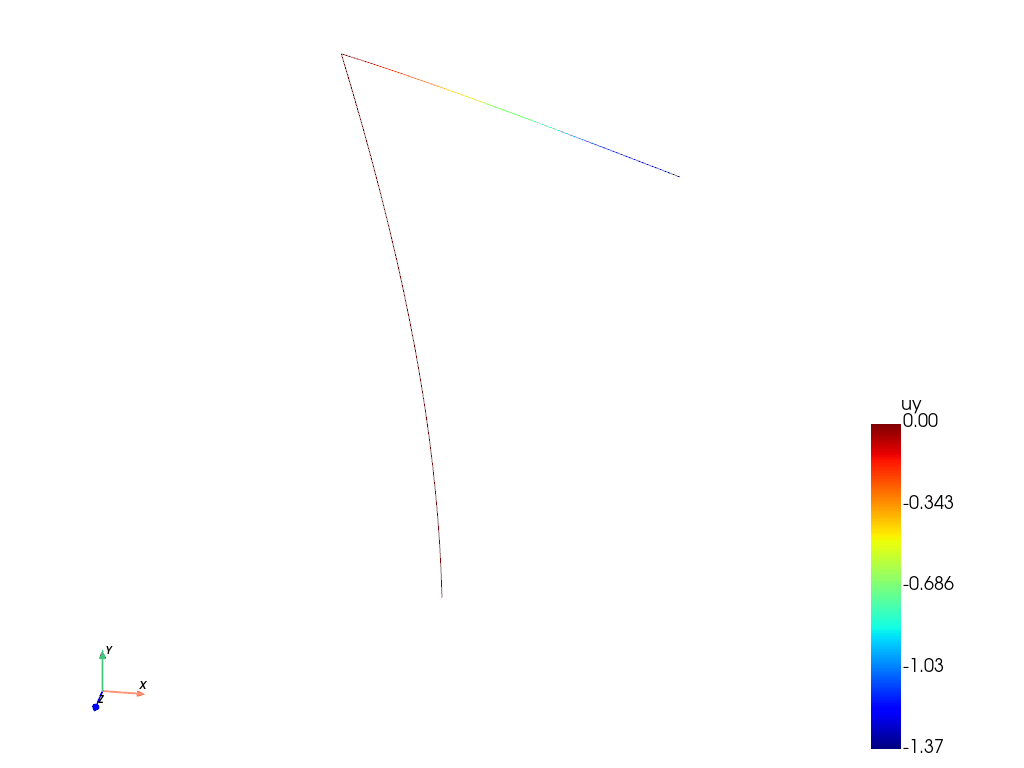

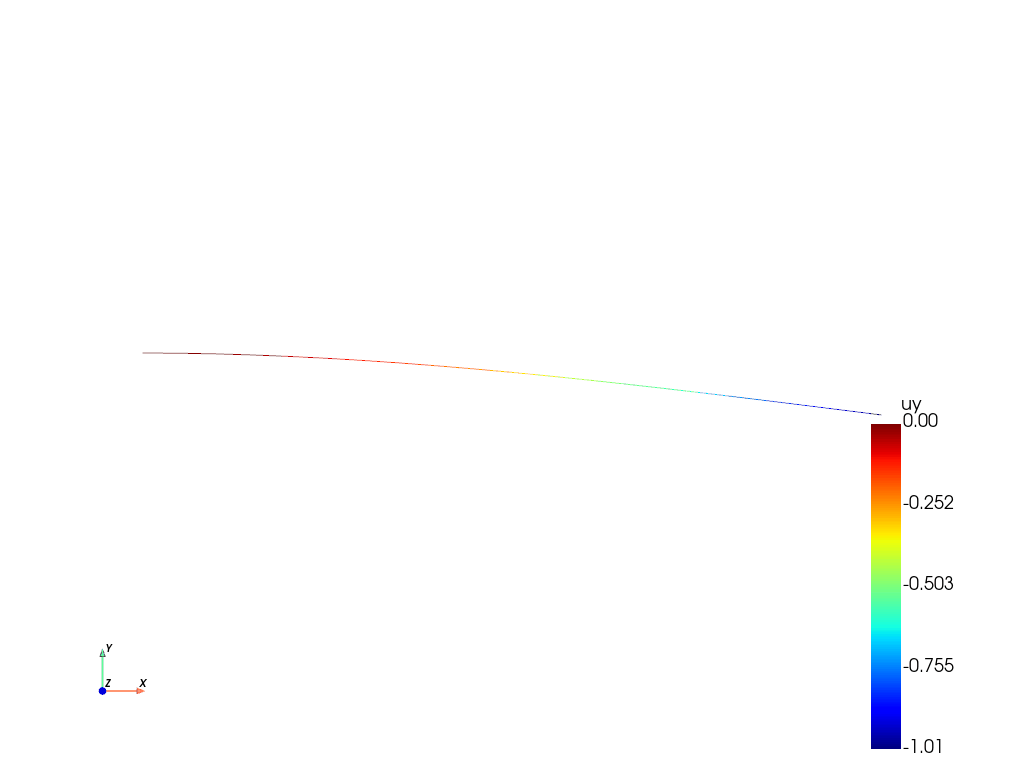

Euler-Bernoulli and Timoshenko beam simulations#

Contains examples for static and dynamic simulations.

Both Euler-Bernoulli (default, cubic Hermitian) and Timoshenko (pure Lagrange + selective reduced integration) elements are supported. Toggle via Simulations.Beam(mesh, structure, useTimoshenko=True) — see Beam2 for a worked example.

Digital Image Correlation (DIC) analyses#

Contains examples for dic analyses.

DIC1

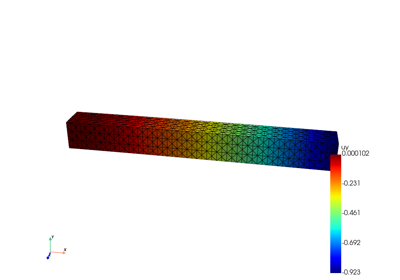

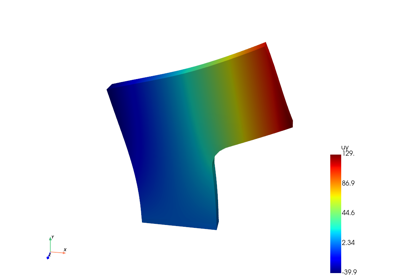

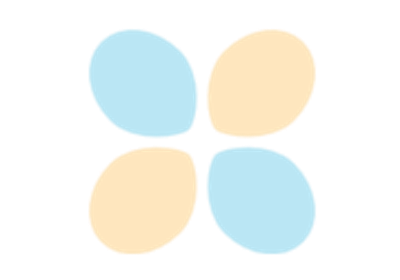

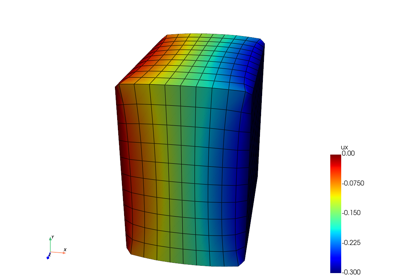

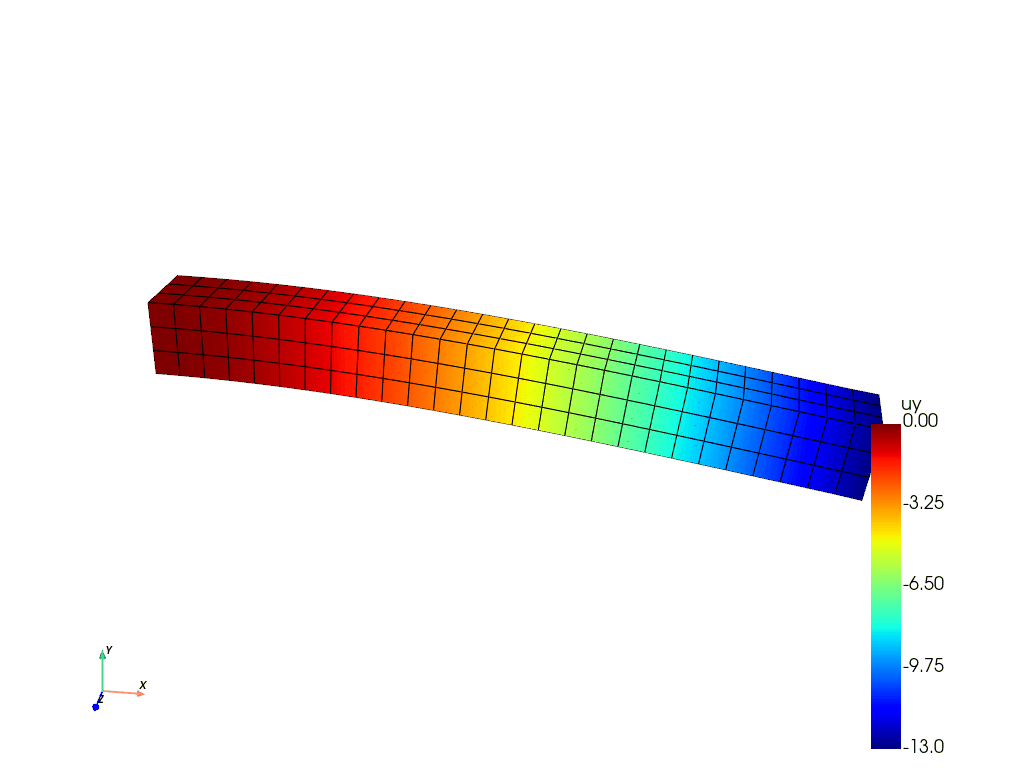

Hyperelastic simulations#

Contains examples for static and dynamic simulations in the Lagrangian framework.

Also includes sympy scripts to construct new hyperelastic laws.

ComputeHyperelasticLaws

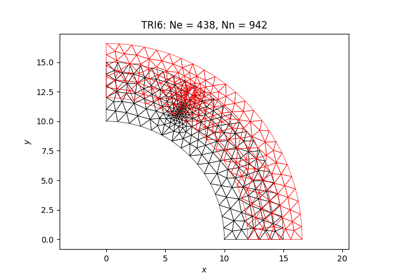

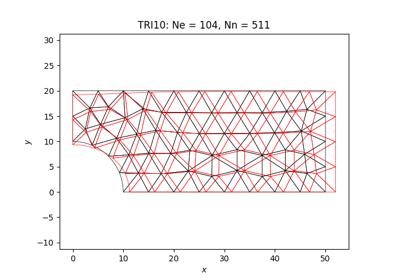

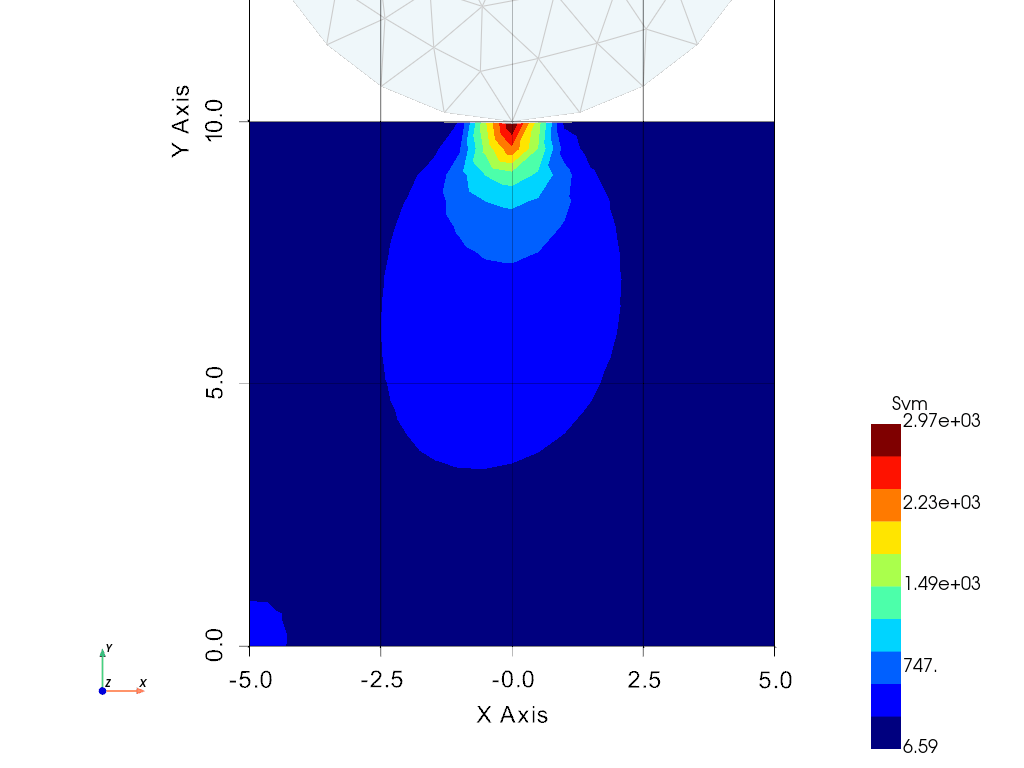

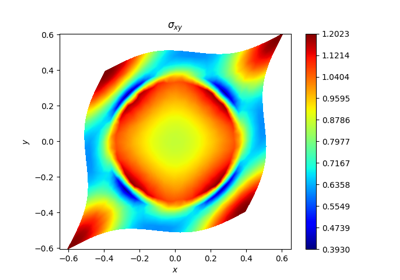

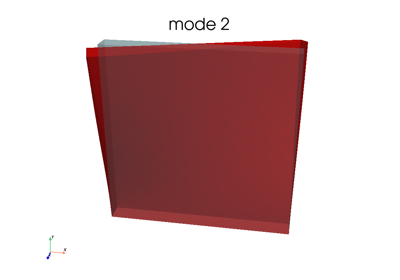

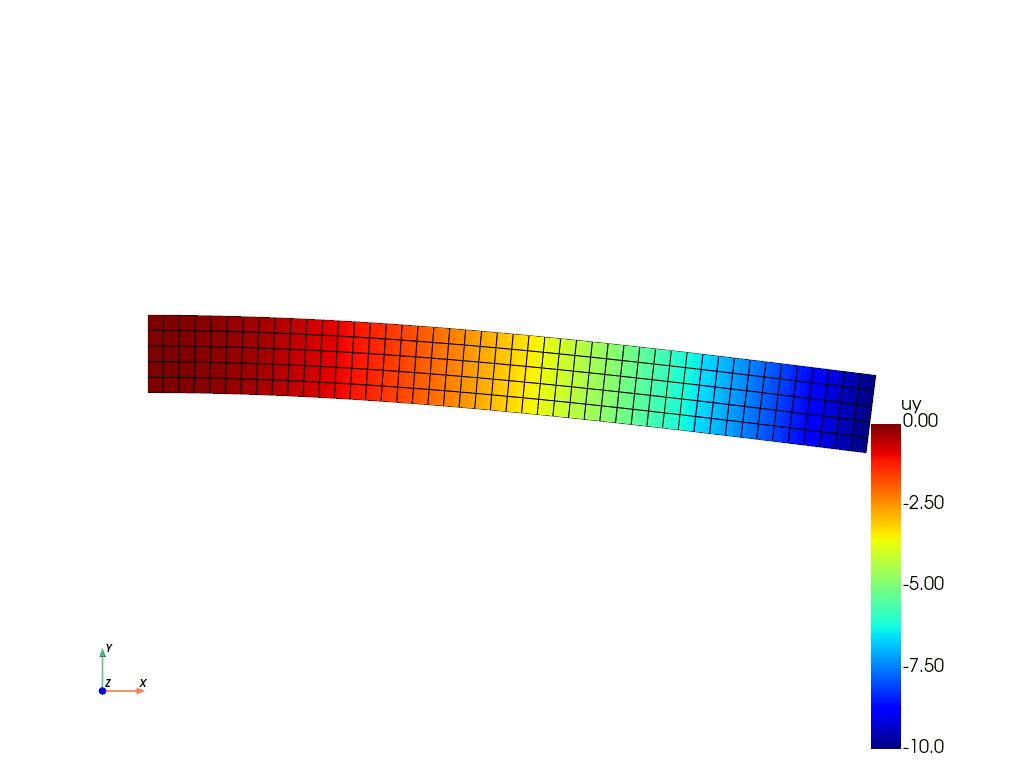

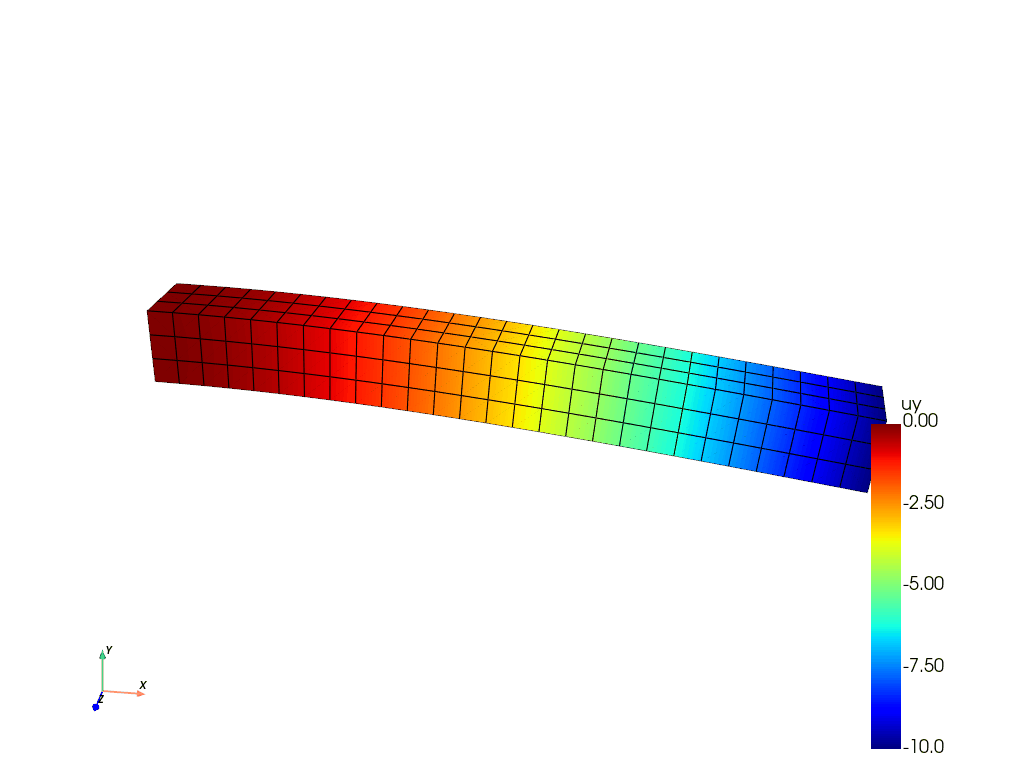

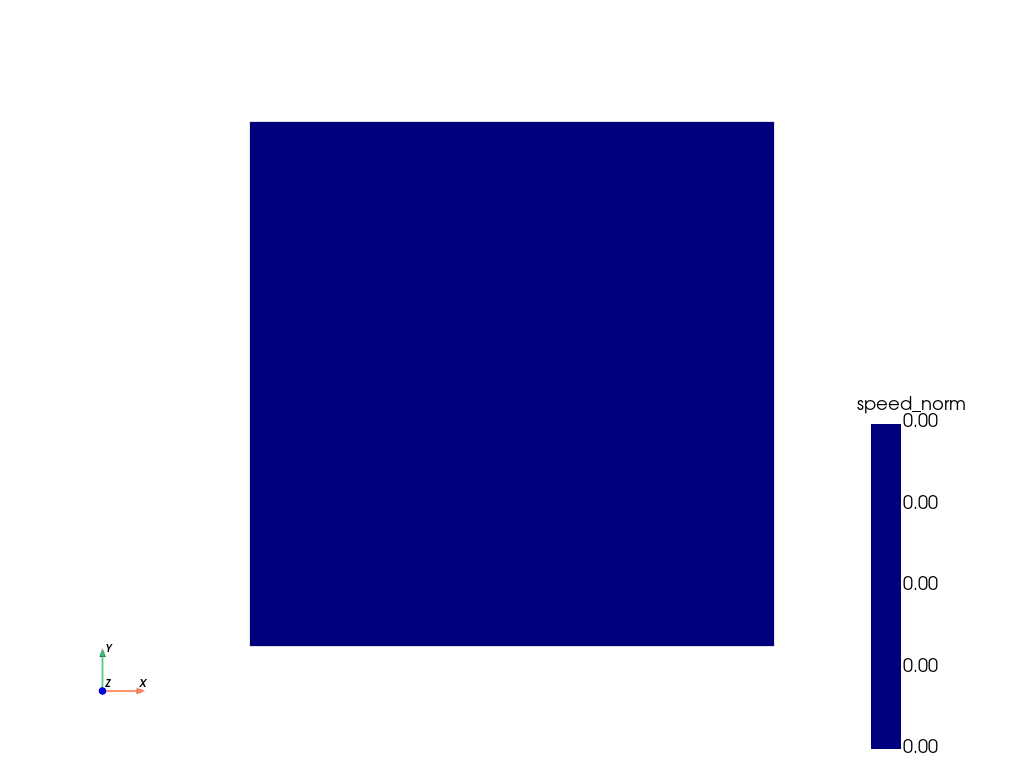

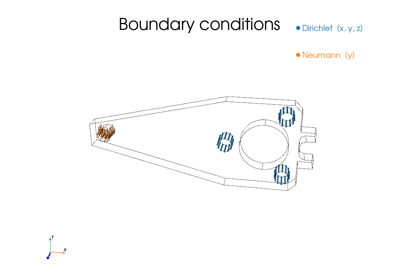

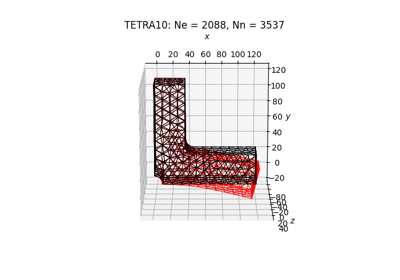

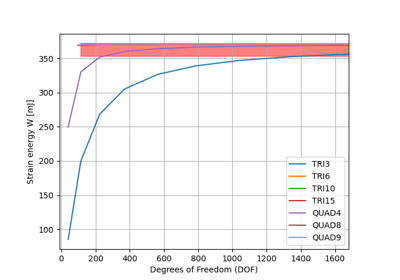

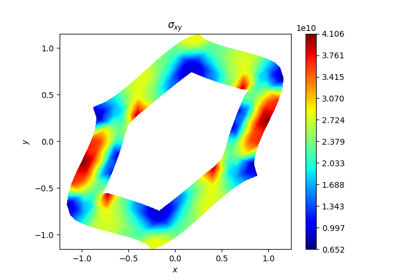

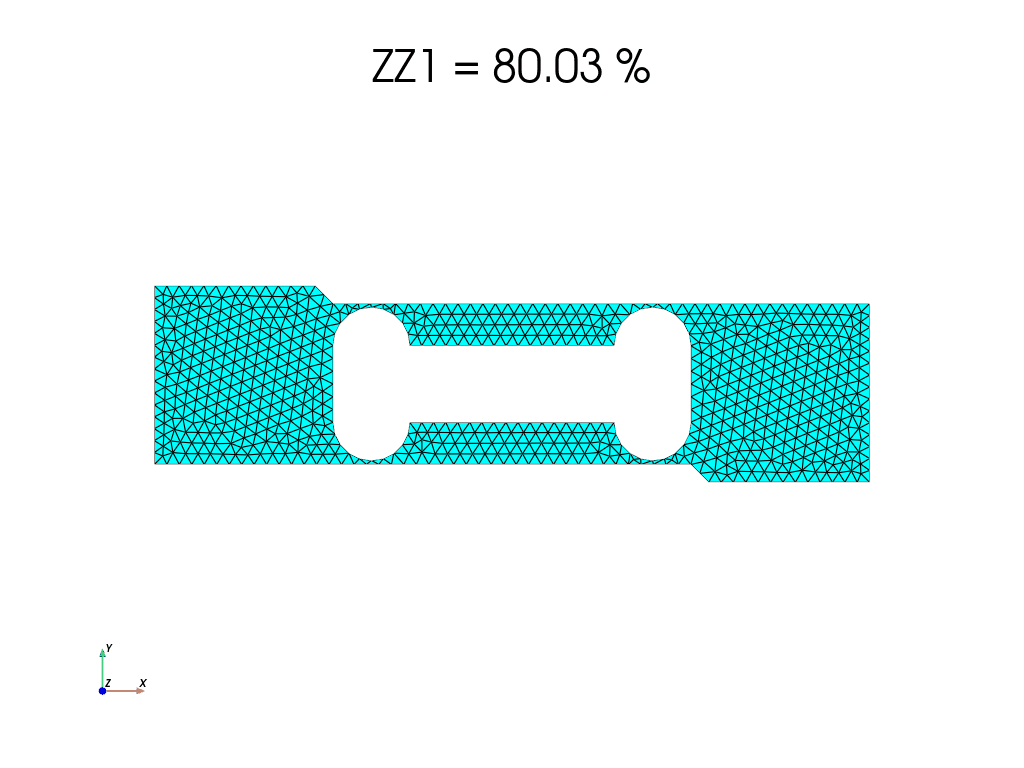

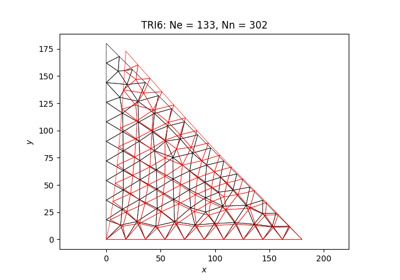

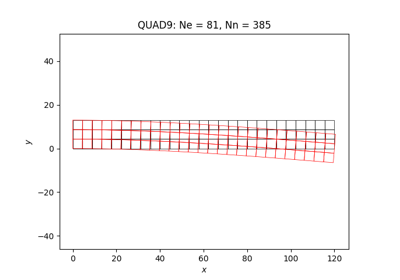

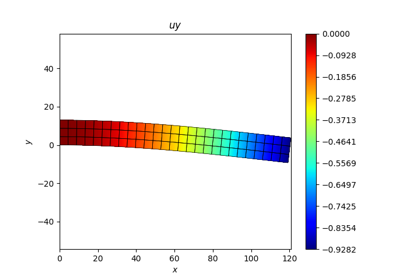

Linearized elastic simulations#

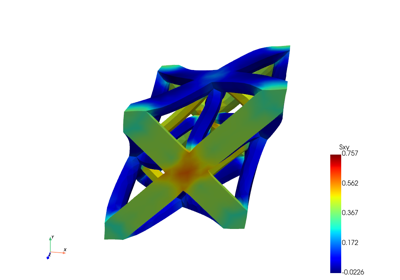

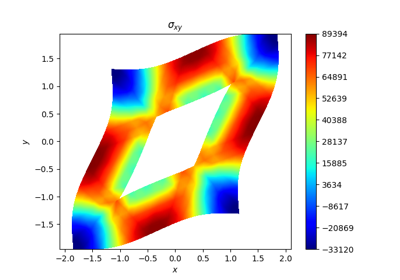

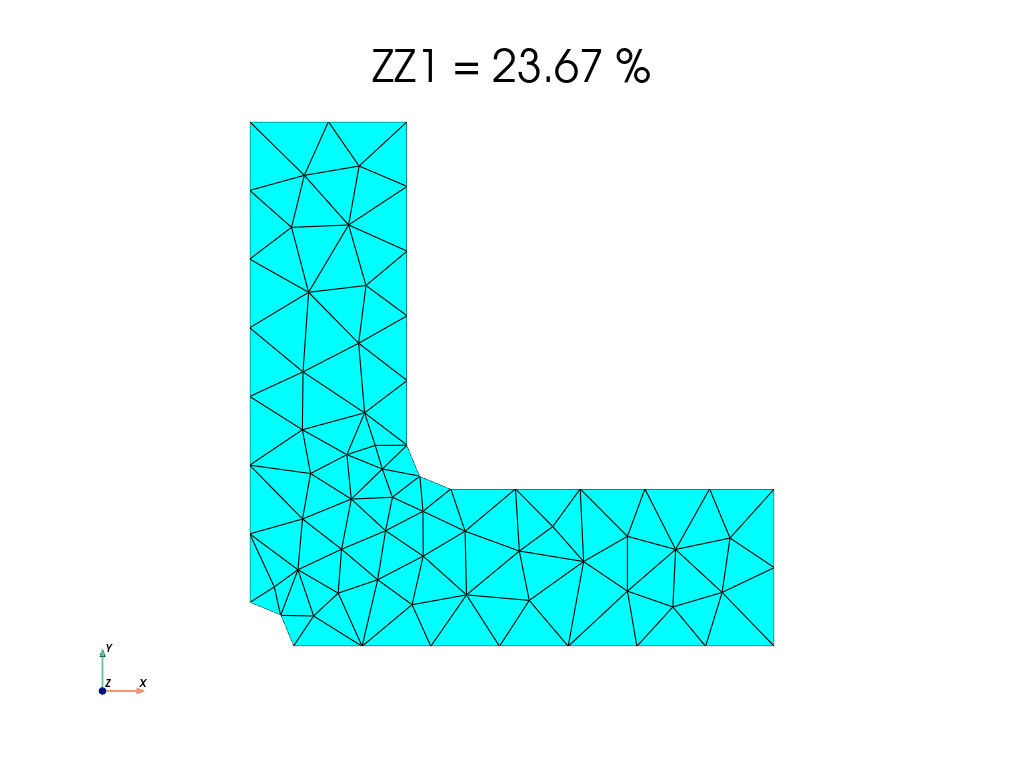

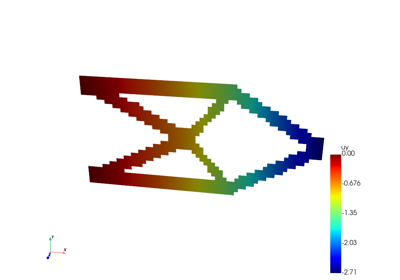

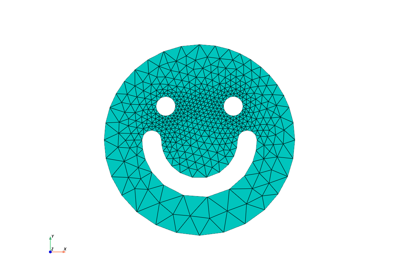

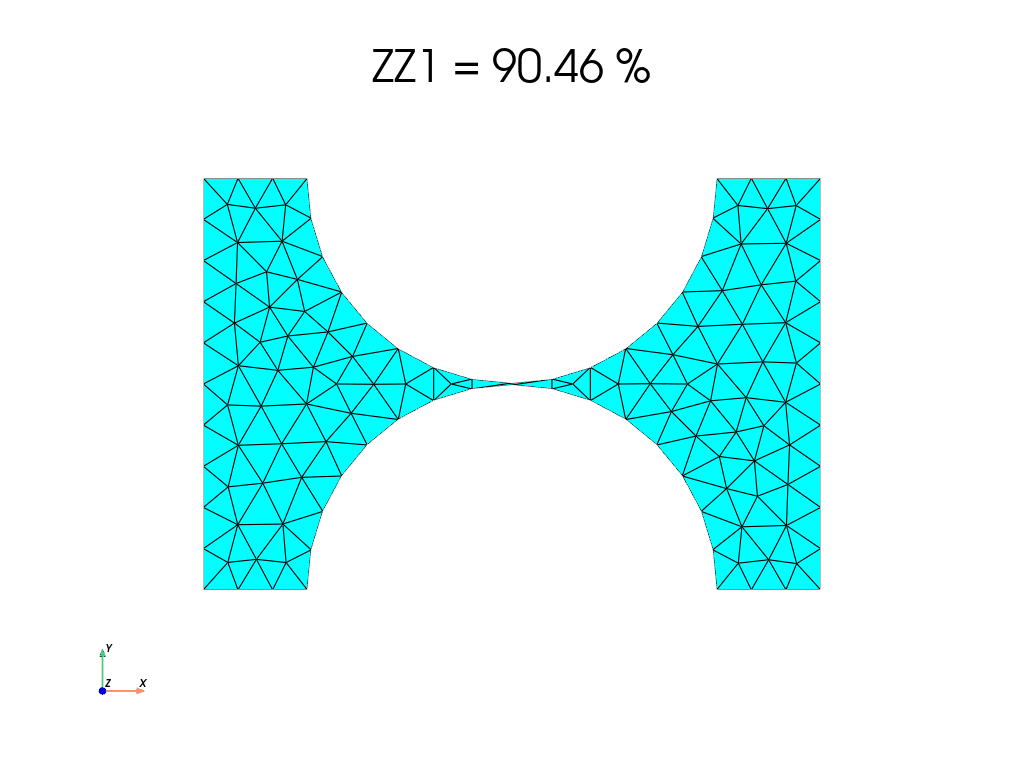

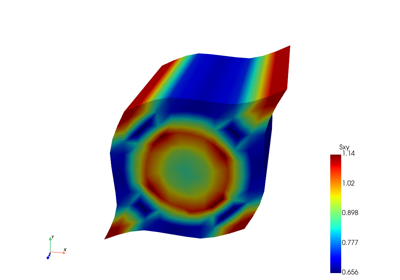

Contains examples for static, dynamic, contact, homogenization and mesh optimization.

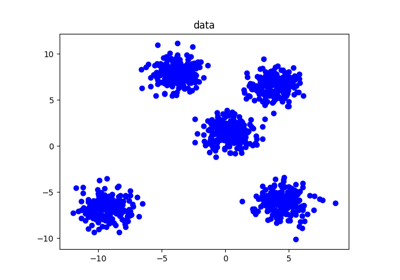

“MachineLearning” tests#

k_means

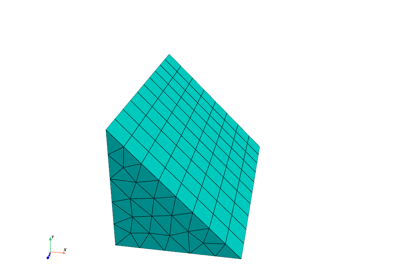

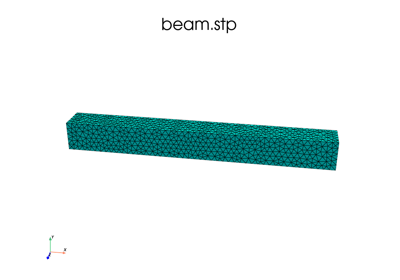

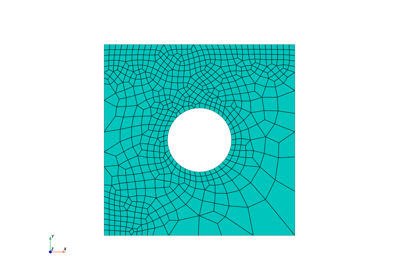

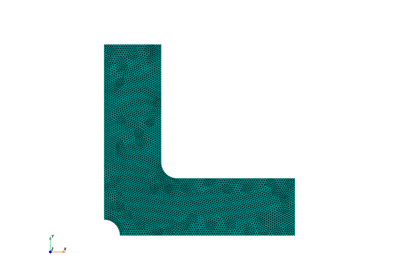

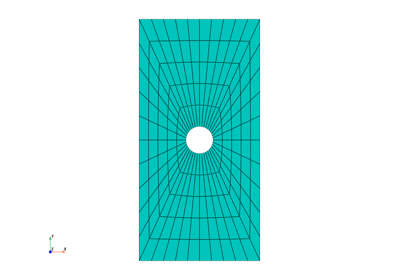

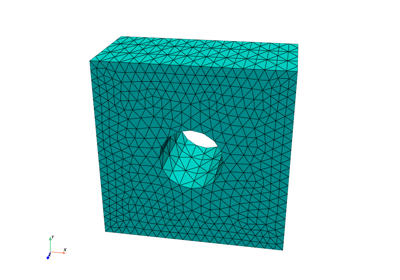

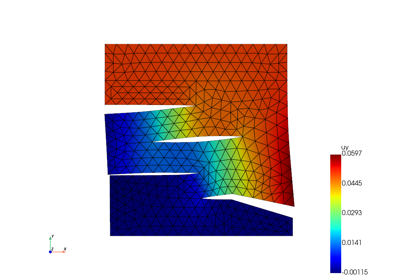

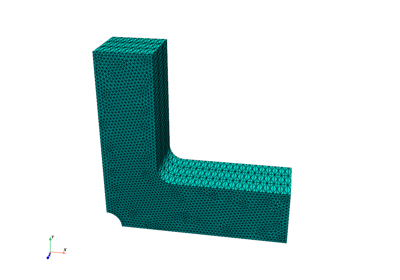

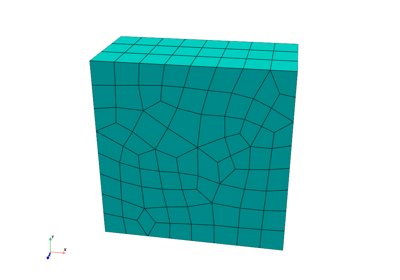

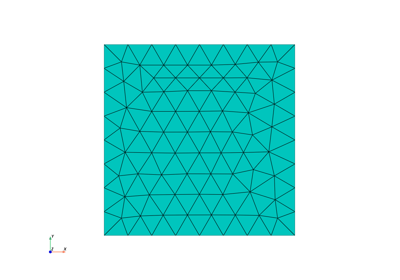

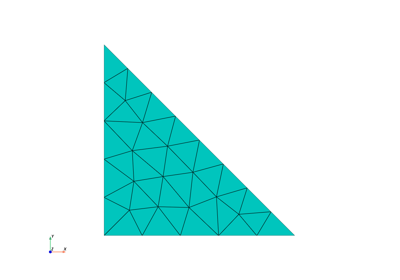

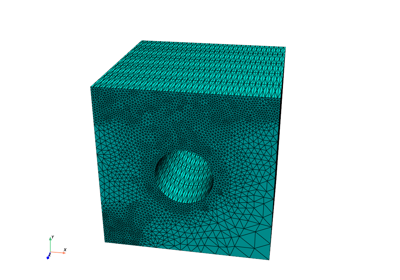

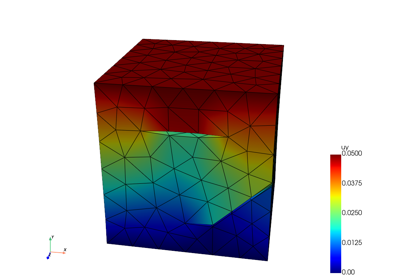

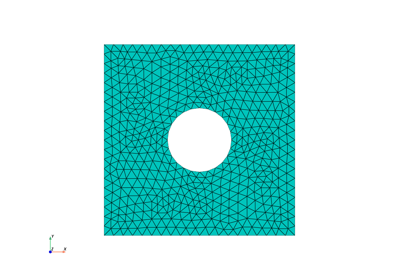

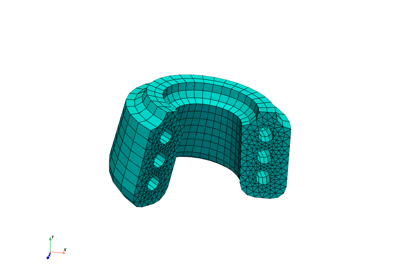

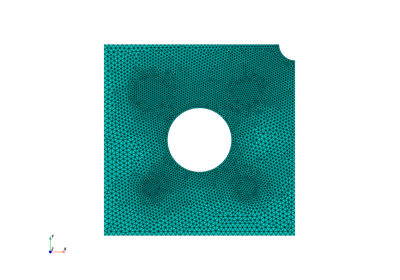

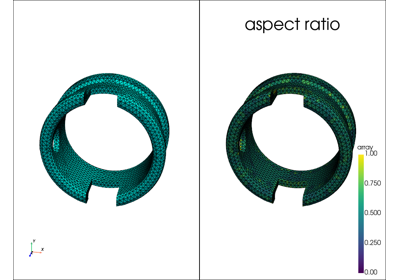

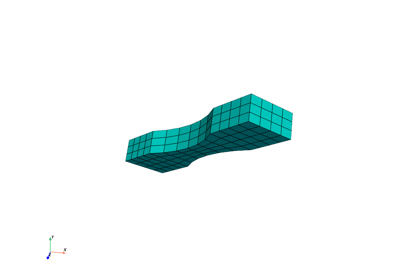

Meshes#

Scripts demonstrating how to construct Mesh.

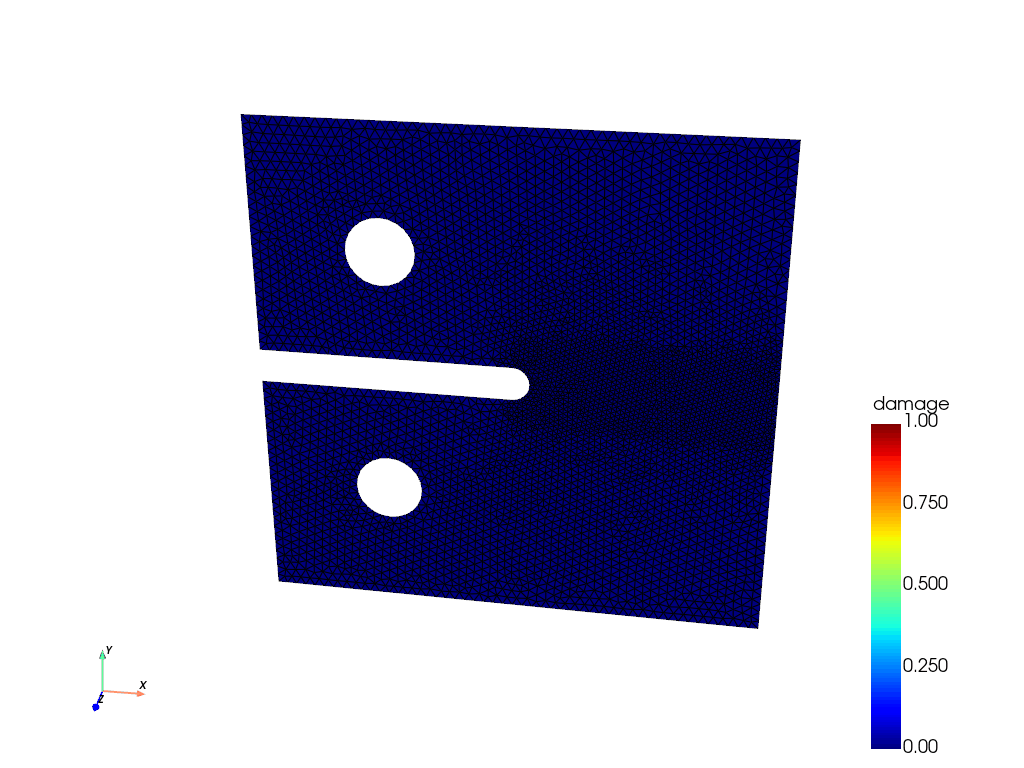

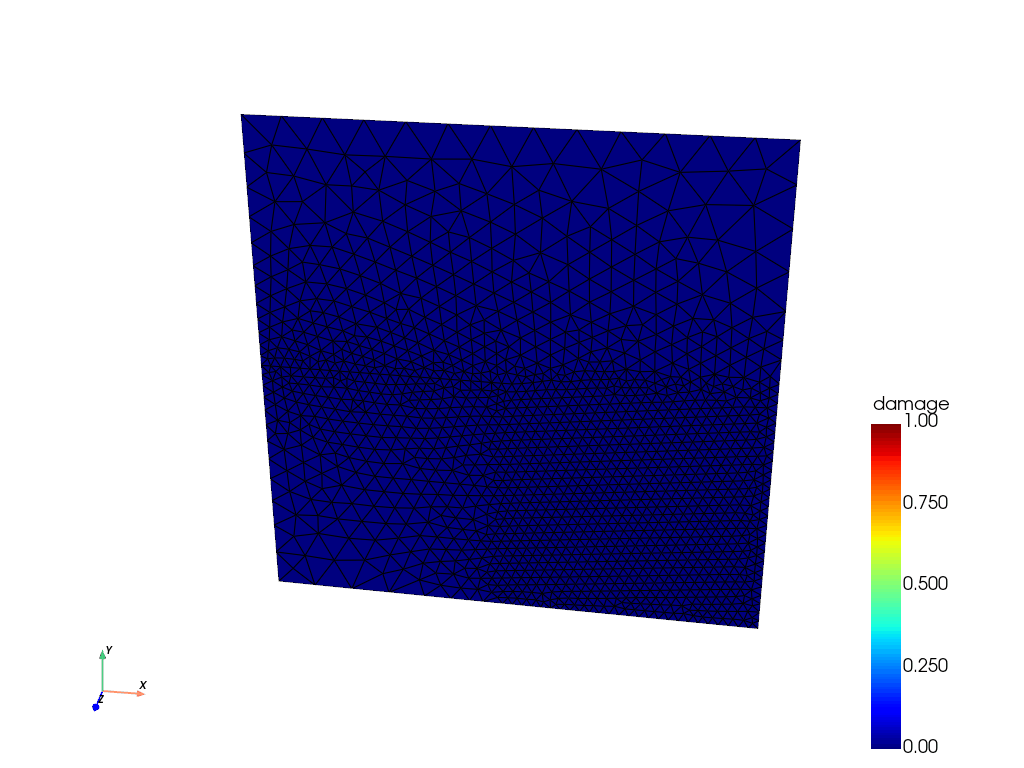

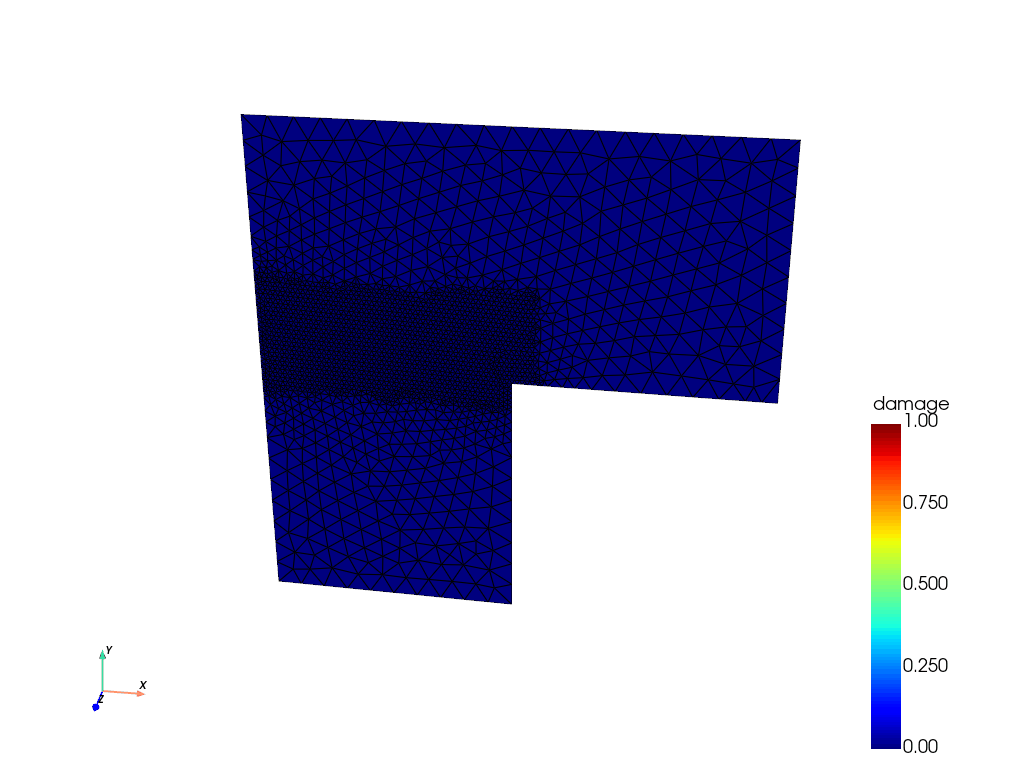

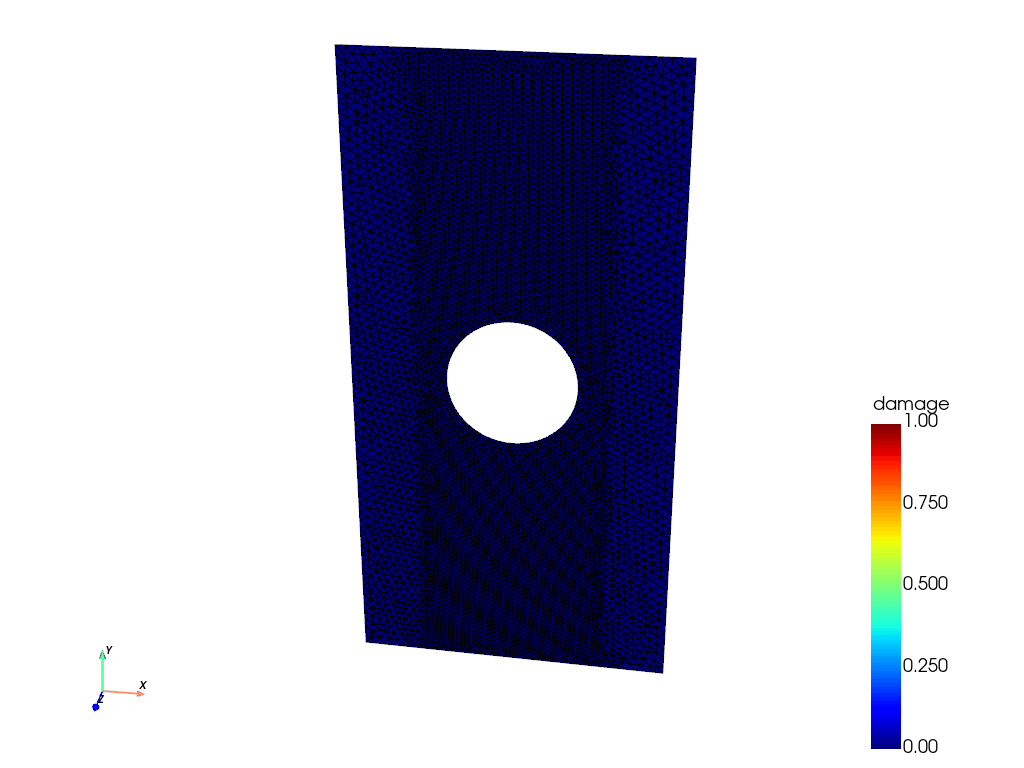

PhaseField damage simulations for quasi-static brittle fracture#

Scripts that demonstrate phase-field damage simulations.

To enable fast execution, these examples use coarse meshes and large loading steps. In practice, fine meshes and smaller increments are essential to obtain realistic and accurate results.

For more realistic simulations, make sure you use a finer mesh and smaller loading steps by setting meshTest=False.
