An educational implementation of topology optimization inspired by Week 10- Topology Optimisation — A Step-by-Step Tutorial created by (Dr Wei Tan, Queen Mary University of London), which in turn builds upon the seminal 88-line topology optimization MATLAB code by Ole Sigmund (2001), published in Structural and Multidisciplinary Optimization, 21(2), pp. 120–127.
Iteration 01, compliance = 6.865e-01, volume fraction = 0.400, err = 3.530e-01
Iteration 02, compliance = 4.338e-01, volume fraction = 0.400, err = 2.860e-01
Iteration 03, compliance = 3.075e-01, volume fraction = 0.400, err = 2.197e-01
Iteration 04, compliance = 2.481e-01, volume fraction = 0.400, err = 1.499e-01
Iteration 05, compliance = 2.252e-01, volume fraction = 0.400, err = 1.268e-01
Iteration 06, compliance = 2.048e-01, volume fraction = 0.400, err = 1.131e-01
Iteration 07, compliance = 1.911e-01, volume fraction = 0.400, err = 1.029e-01
Iteration 08, compliance = 1.762e-01, volume fraction = 0.400, err = 9.478e-02
Iteration 09, compliance = 1.655e-01, volume fraction = 0.400, err = 9.155e-02
Iteration 10, compliance = 1.530e-01, volume fraction = 0.400, err = 8.394e-02
Iteration 11, compliance = 1.424e-01, volume fraction = 0.400, err = 8.602e-02
Iteration 12, compliance = 1.299e-01, volume fraction = 0.400, err = 7.927e-02
Iteration 13, compliance = 1.190e-01, volume fraction = 0.400, err = 7.109e-02
Iteration 14, compliance = 1.102e-01, volume fraction = 0.400, err = 5.719e-02
Iteration 15, compliance = 1.050e-01, volume fraction = 0.400, err = 4.511e-02
Iteration 16, compliance = 1.020e-01, volume fraction = 0.400, err = 3.708e-02
Iteration 17, compliance = 1.001e-01, volume fraction = 0.400, err = 3.229e-02
Iteration 18, compliance = 9.868e-02, volume fraction = 0.400, err = 2.715e-02
Iteration 19, compliance = 9.765e-02, volume fraction = 0.400, err = 2.329e-02
Iteration 20, compliance = 9.682e-02, volume fraction = 0.400, err = 2.167e-02
Iteration 21, compliance = 9.612e-02, volume fraction = 0.400, err = 2.040e-02
Iteration 22, compliance = 9.551e-02, volume fraction = 0.400, err = 1.928e-02
Iteration 23, compliance = 9.497e-02, volume fraction = 0.400, err = 1.557e-02
Iteration 24, compliance = 9.447e-02, volume fraction = 0.400, err = 1.441e-02
Iteration 25, compliance = 9.403e-02, volume fraction = 0.400, err = 1.327e-02
Iteration 26, compliance = 9.364e-02, volume fraction = 0.400, err = 1.223e-02
Iteration 27, compliance = 9.330e-02, volume fraction = 0.400, err = 1.156e-02
Iteration 28, compliance = 9.300e-02, volume fraction = 0.400, err = 1.094e-02
Iteration 29, compliance = 9.272e-02, volume fraction = 0.400, err = 1.042e-02
Iteration 30, compliance = 9.247e-02, volume fraction = 0.400, err = 9.755e-03
Iteration 31, compliance = 9.224e-02, volume fraction = 0.400, err = 7.533e-03
Iteration 32, compliance = 9.202e-02, volume fraction = 0.400, err = 6.743e-03
Iteration 33, compliance = 9.180e-02, volume fraction = 0.400, err = 6.453e-03
Iteration 34, compliance = 9.161e-02, volume fraction = 0.400, err = 6.228e-03
Iteration 35, compliance = 9.143e-02, volume fraction = 0.400, err = 6.105e-03
Iteration 36, compliance = 9.126e-02, volume fraction = 0.400, err = 5.983e-03
Iteration 37, compliance = 9.110e-02, volume fraction = 0.400, err = 5.893e-03
Iteration 38, compliance = 9.095e-02, volume fraction = 0.400, err = 5.830e-03
Iteration 39, compliance = 9.081e-02, volume fraction = 0.400, err = 5.795e-03
Iteration 40, compliance = 9.067e-02, volume fraction = 0.400, err = 5.681e-03
Iteration 41, compliance = 9.055e-02, volume fraction = 0.400, err = 5.482e-03
Iteration 42, compliance = 9.042e-02, volume fraction = 0.400, err = 5.380e-03
Iteration 43, compliance = 9.031e-02, volume fraction = 0.400, err = 5.259e-03
Iteration 44, compliance = 9.020e-02, volume fraction = 0.400, err = 4.837e-03

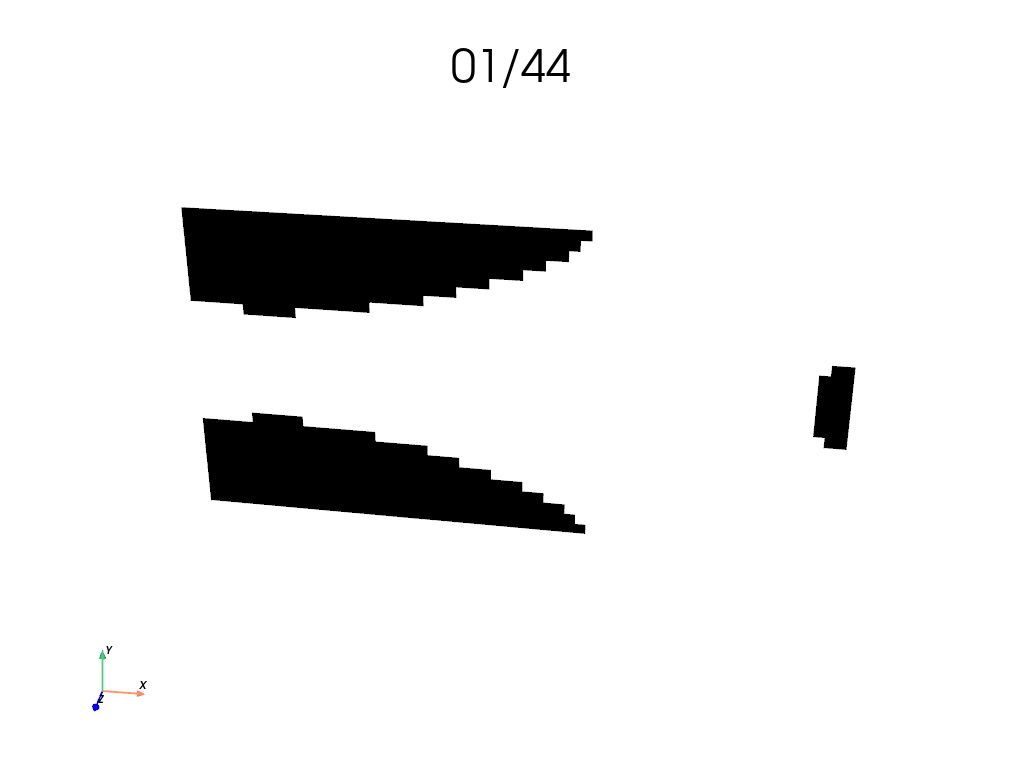

Generate movie 01/44 (2.27 %) 5.94 s
Generate movie 02/44 (4.55 %) 5.09 s
Generate movie 03/44 (6.82 %) 4.92 s
Generate movie 04/44 (9.09 %) 4.84 s
Generate movie 05/44 (11.36 %) 4.68 s
Generate movie 06/44 (13.64 %) 4.69 s
Generate movie 07/44 (15.91 %) 4.47 s
Generate movie 08/44 (18.18 %) 4.33 s
Generate movie 09/44 (20.45 %) 4.27 s
Generate movie 10/44 (22.73 %) 4.18 s
Generate movie 11/44 (25.00 %) 4.05 s
Generate movie 12/44 (27.27 %) 3.90 s
Generate movie 13/44 (29.55 %) 3.75 s
Generate movie 14/44 (31.82 %) 3.62 s
Generate movie 15/44 (34.09 %) 3.51 s
Generate movie 16/44 (36.36 %) 3.42 s
Generate movie 17/44 (38.64 %) 3.28 s
Generate movie 18/44 (40.91 %) 3.21 s
Generate movie 19/44 (43.18 %) 3.09 s
Generate movie 20/44 (45.45 %) 3.07 s
Generate movie 21/44 (47.73 %) 2.88 s
Generate movie 22/44 (50.00 %) 2.75 s
Generate movie 23/44 (52.27 %) 2.63 s
Generate movie 24/44 (54.55 %) 2.53 s
Generate movie 25/44 (56.82 %) 2.43 s
Generate movie 26/44 (59.09 %) 2.27 s
Generate movie 27/44 (61.36 %) 2.16 s
Generate movie 28/44 (63.64 %) 2.01 s
Generate movie 29/44 (65.91 %) 1.88 s
Generate movie 30/44 (68.18 %) 1.74 s
Generate movie 31/44 (70.45 %) 1.61 s
Generate movie 32/44 (72.73 %) 1.53 s
Generate movie 33/44 (75.00 %) 1.36 s
Generate movie 34/44 (77.27 %) 1.27 s
Generate movie 35/44 (79.55 %) 1.12 s
Generate movie 36/44 (81.82 %) 1.00 s
Generate movie 37/44 (84.09 %) 871.28 ms
Generate movie 38/44 (86.36 %) 748.89 ms
Generate movie 39/44 (88.64 %) 625.57 ms
Generate movie 40/44 (90.91 %) 501.28 ms
Generate movie 41/44 (93.18 %) 375.75 ms
Generate movie 42/44 (95.45 %) 250.60 ms
Generate movie 43/44 (97.73 %) 125.17 ms
Generate movie 44/44 (100.00 %) 0.00 µs
14 import matplotlib.pyplot as plt
15 import numpy as np
16
17 from EasyFEA import Display, Folder, PyVista, ElemType, Models, Simulations
18 from EasyFEA.FEM import FeArray, Field, BiLinearForm, Sym_Grad, Trace
19 from EasyFEA.Geoms import Domain
20
21 if __name__ == "__main__":
22
23 Display.Clear()
24
25 # ----------------------------------------------
26 # Configuration
27 # ----------------------------------------------
28
29 dim = 2
30
31 L, H = 60, 30
32 # L, H = 120, 60
33
34 # optim topo
35 iterMax = 60
36 volFrac = 0.4
37 penal = 3
38 rMin = 3
39
40 # outputs
41 generateMovie = True
42 folder = Folder.Results_Dir()
43
44 # ----------------------------------------------
45 # Mesh
46 # ----------------------------------------------
47
48 meshSize = 1 if dim == 2 else H / 10
49 contour = Domain((0, 0), (L, H), meshSize)
50 assert H / meshSize % 2 == 0
51
52 if dim == 2:
53 mesh = contour.Mesh_2D([], ElemType.QUAD4, isOrganised=True)
54 else:
55 mesh = contour.Mesh_Extrude(
56 [], [0, 0, H], [H / meshSize], ElemType.HEXA8, isOrganised=True
57 )
58
59 nodesX0 = mesh.Nodes_Conditions(lambda x, y, z: x == 0)
60
61 zMean = 0 if dim == 2 else H / 2
62 nodesLoad = mesh.Nodes_Point((L, H / 2, zMean))
63 # nodesLoad = mesh.Nodes_Conditions(lambda x, y, z: y == H)
64
65 # ----------------------------------------------
66 # Mesh-Independence Sensitivity Filter (Sigmund, 1998)
67 # ----------------------------------------------
68
69 # get the coordinates of each elements
70 coord_e = mesh.coord[mesh.connect].mean(1)
71
72 # compute Hij
73 elements = mesh.groupElem.elements
74 Hij = np.array(
75 [
76 np.maximum(0, rMin - np.linalg.norm(coord_e[i] - coord_e, axis=-1) + 1e-12)
77 for i in range(mesh.Ne)
78 ]
79 )
80
81 # # plot neighbor elements
82 # elem = 100
83 # ax = Display.Plot_Mesh(mesh, alpha=0)
84 # Display.Plot_Elements(
85 # mesh, mesh.connect[Hij[elem] != 0].ravel(), 2, color="blue", ax=ax
86 # )
87 # Display.Plot_Elements(mesh, mesh.connect[elem].ravel(), 2, ax=ax)
88
89 # ----------------------------------------------
90 # Formulations
91 # ----------------------------------------------
92
93 elastic = Models.Elastic.Isotropic(dim, E=1, v=0.3, planeStress=True)
94 mu = elastic.get_mu()
95 lmbda = elastic.get_lambda()
96
97 def S(u: Field) -> FeArray:
98 Eps = Sym_Grad(u)
99 return 2 * mu * Eps + lmbda * Trace(Eps) * np.eye(dim)
100
101 p_e = np.ones(mesh.Ne, dtype=float) * volFrac
102
103 @BiLinearForm
104 def ComputeK(u: Field, v: Field):
105 Sig = S(u)
106 Eps = Sym_Grad(v)
107 return Sig.ddot(Eps)
108
109 @BiLinearForm
110 def ComputePenalizedK(u: Field, v: Field):
111 simpScaling = FeArray.asfearray(np.reshape(p_e**penal, (-1, 1)))
112 return simpScaling * ComputeK(u, v)
113
114 field = Field(mesh.groupElem, dim)
115 model = Models.WeakForms(field, ComputePenalizedK, thickness=H)
116
117 # ----------------------------------------------
118 # Simulation
119 # ----------------------------------------------

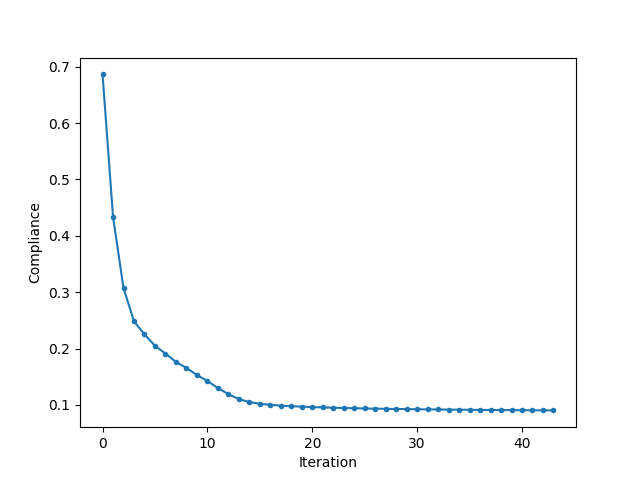

120
121 simu = Simulations.WeakForms(mesh, model)
122
123 simu.add_dirichlet(nodesX0, [0] * dim, simu.Get_unknowns())
124 simu.add_neumann(nodesLoad, [-1], ["y"])

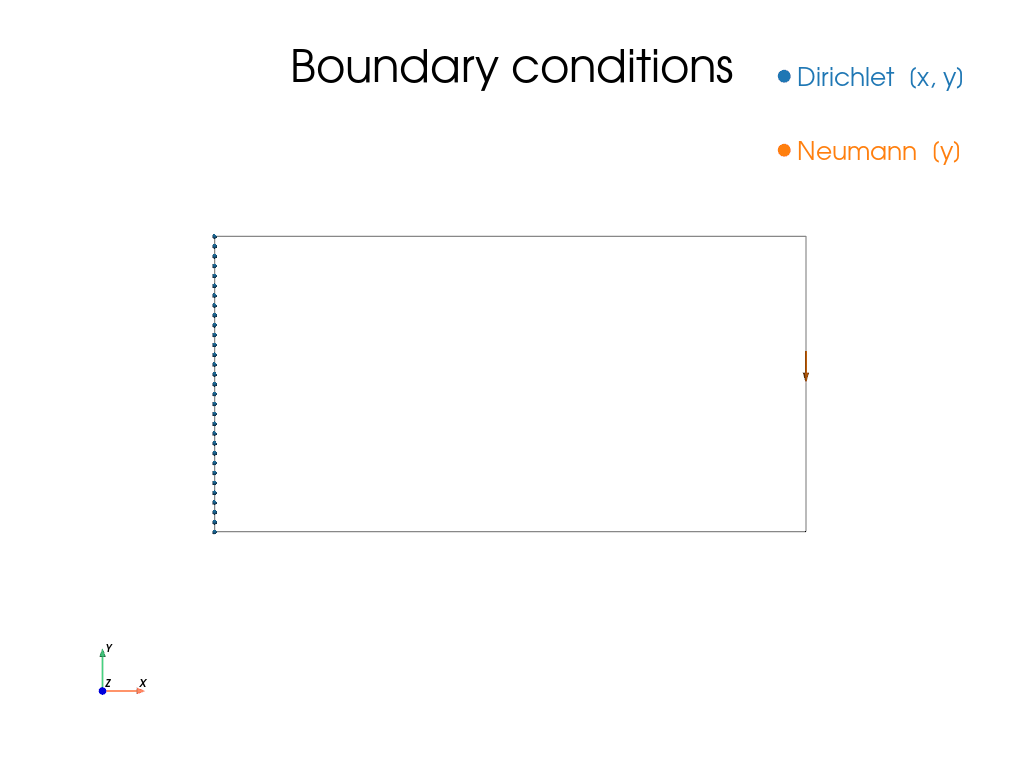

125
126 # ----------------------------------------------
127 # Optim topo
128 # ----------------------------------------------
129
130 err = 1.0
131 list_compliance: list[float] = []
132 list_p_e: list[np.ndarray] = []
133 iter = 0
134
135 while err > 0.005 and iter < iterMax:

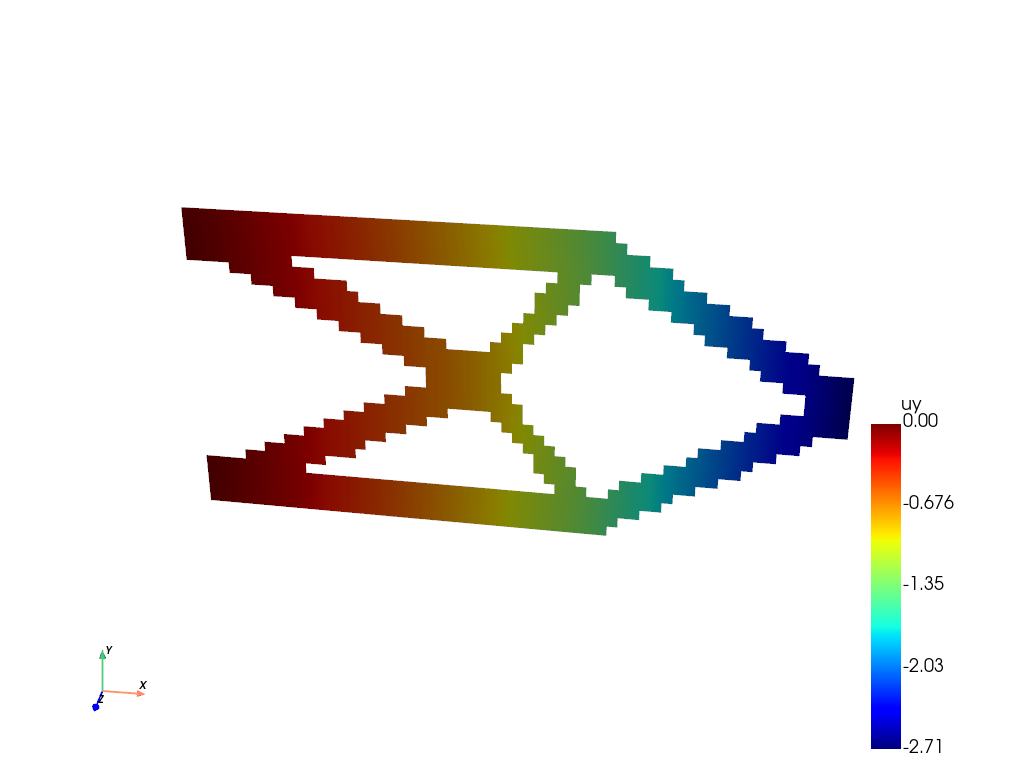

136 iter += 1
137 pOld_e = p_e.copy()
138
139 # solve u
140 simu.Need_Update()
141 u = simu.Solve()
142 simu.Save_Iter()
143
144 # compute compliance for elements
