Mesh3_2D

Meshing a 2D domain with hole.

Static Scene

Interactive Scene

Static Scene

Interactive Scene

from EasyFEA import Display, ElemType, PyVista
from EasyFEA.Geoms import Domain, Circle

if __name__ == "__main__":
    Display.Clear()

    contour = Domain((0, 0), (1, 1), 1 / 10)
    circle = Circle((1 / 2, 1 / 2), 1 / 3, 1 / 10, isFilled=False)

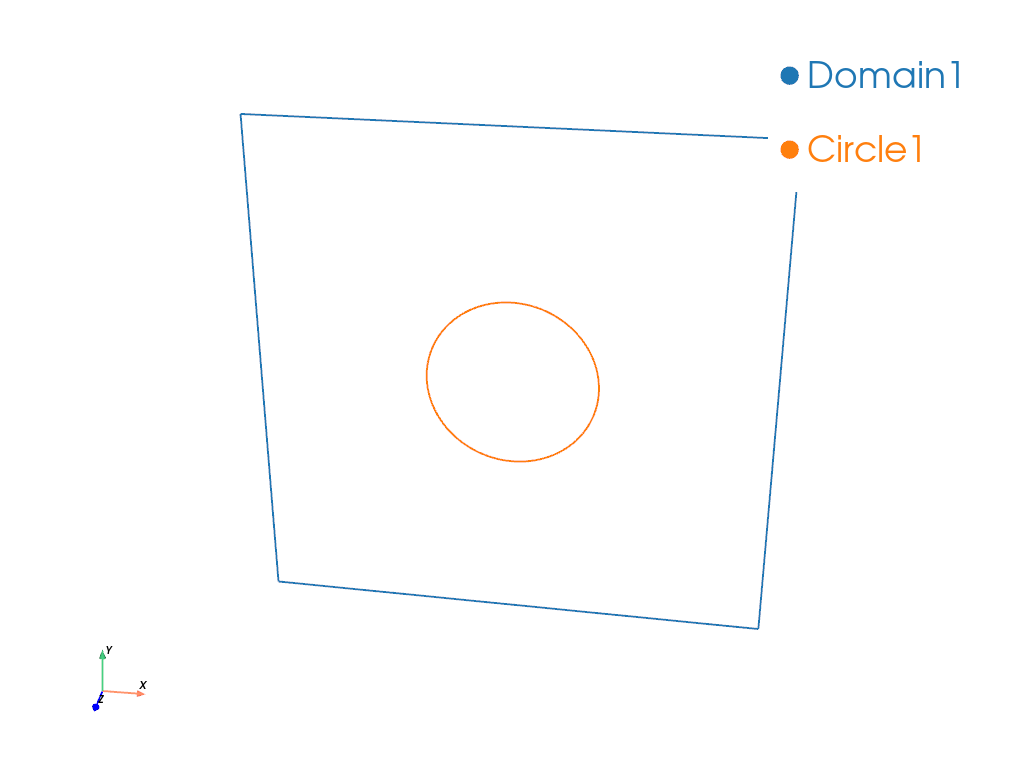

    PyVista.Plot_Geoms([contour, circle]).show()

    # "TRI3", "TRI6", "TRI10", "TRI15", "QUAD4", "QUAD8",  "QUAD9"
    elemType = ElemType.TRI6
    mesh = contour.Mesh_2D([circle], elemType)

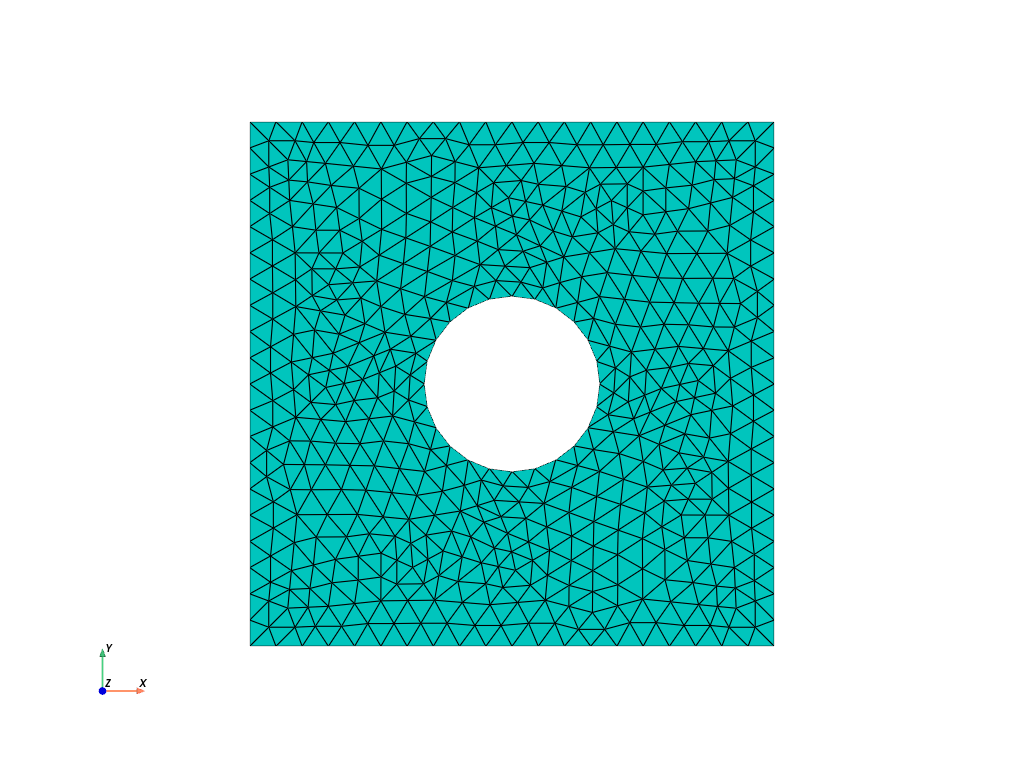

    PyVista.Plot_Mesh(mesh).show()
