Mesh9#

Meshing of a perforated plate with a structured mesh.

Mesh9
Mesh9
============= Init GMSH interface =============
gmsh.model.mesh.generate (1.429 ms)
Remove duplicate nodes and elements (1.280 ms)
Create SEG2 (8.979 ms)
Create QUAD4 (2.890 ms)
Create POINT (7.232 ms)
Construct mesh object (35.048 µs)

Element type: QUAD4
Ne = 200, Nn = 240


 13 import numpy as np
 14
 15 from EasyFEA import Display, Mesher, ElemType, PyVista
 16 from EasyFEA.Geoms import Point, Circle, Points, Line, CircleArc, Contour
 17
 18 if __name__ == "__main__":
 19     dim = 2
 20
 21     if dim == 2:
 22         elemType = ElemType.QUAD4
 23     else:
 24         elemType = ElemType.HEXA8
 25
 26     Display.Clear()
 27
 28     # ----------------------------------------------
 29     # Geom
 30     # ----------------------------------------------
 31     H = 90
 32     L = 45
 33     D = 10
 34     e = 20
 35
 36     N = 5
 37     mS = (np.pi / 4 * D / 2) / N
 38
 39     # PI for Points
 40     # pi for gmsh points
 41     PC = Point(L / 2, H / 2, 0)
 42     circle = Circle(PC, D, mS)
 43
 44     P1 = Point()
 45     P2 = Point(L, 0)
 46     P3 = Point(L, H)
 47     P4 = Point(0, H)
 48     contour1 = Points(
 49         [
 50             (P3 + P2) / 2,
 51             P3,
 52             (P3 + P4) / 2,
 53             P4,
 54             (P4 + P1) / 2,
 55             P1,
 56             (P1 + P2) / 2,
 57             P2,
 58             (P3 + P2) / 2,
 59         ],
 60         mS,
 61     )
 62
 63     # ----------------------------------------------
 64     # Mesh
 65     # ----------------------------------------------
 66     mesher = Mesher(False, True, True)
 67     factory = mesher._factory
 68
 69     contours1: list[Contour] = []
 70
 71     for c in range(4):
 72         pc = circle.center
 73         contour = circle.Get_Contour()
 74         pc1 = contour.geoms[c].pt1
 75         pc2 = contour.geoms[c].pt2
 76         pc3 = contour.geoms[c].pt3
 77
 78         p1, p2, p3 = contour1.points[c * 2 : c * 2 + 3]
 79
 80         cont1 = Contour(
 81             [Line(pc1, p1), Line(p1, p2), Line(p2, pc3), CircleArc(pc3, pc1, pc)]
 82         )
 83         loop1, lines1, points1 = mesher._Loop_From_Geom(cont1)
 84
 85         cont2 = Contour(
 86             [Line(pc3, p2), Line(p2, p3), Line(p3, pc2), CircleArc(pc2, pc3, pc)]
 87         )
 88         loop2, lines2, points2 = mesher._Loop_From_Geom(cont2)
 89
 90         surf1 = factory.addSurfaceFilling(loop1)
 91         surf2 = factory.addSurfaceFilling(loop2)
 92
 93         mesher._Surfaces_Organize([surf1, surf2], elemType, True, [N] * 4)
 94
 95         contours1.extend([cont1, cont2])
 96

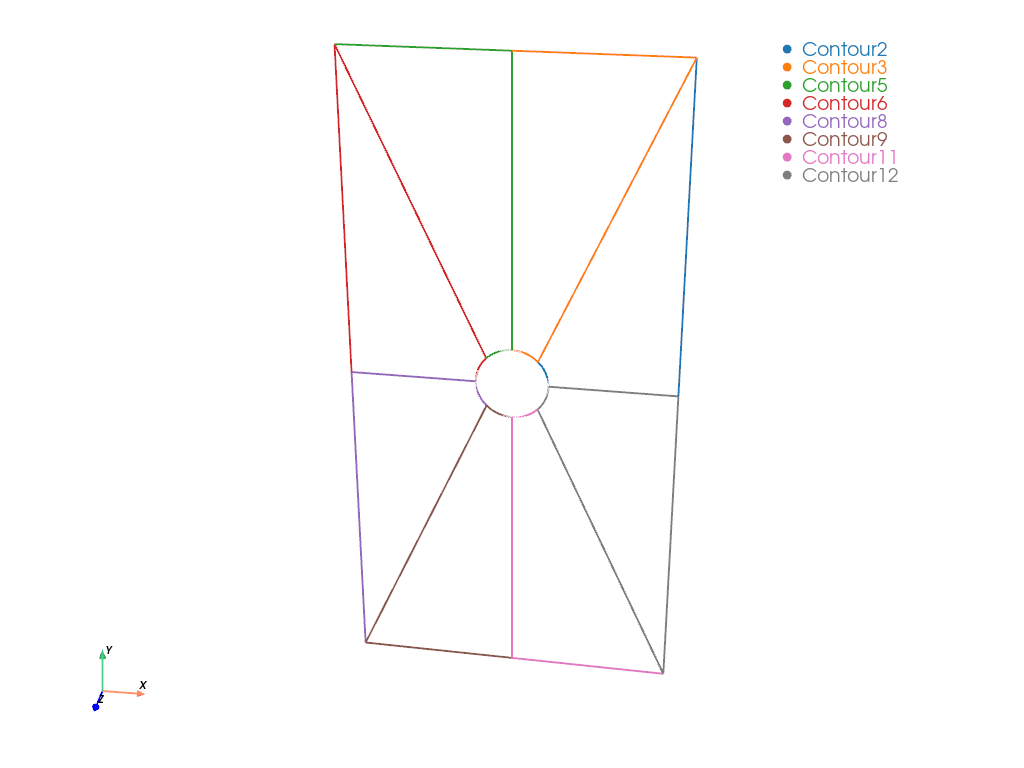

 97     PyVista.Plot_Geoms(contours1).show()
 98
 99     if dim == 3:
100         for cont1 in contours1:
101             cont2 = cont1.copy()
102             cont2.Translate(dz=e)
103             # cont2.rotate(np.pi/8, PC.coord)
104             mesher._Link_Contours(cont1, cont2, elemType, 3, [N] * 4)
105
106     mesher._Set_PhysicalGroups()
107
108     mesher._Mesh_Generate(dim, elemType)
109
110     mesh = mesher._Mesh_Get_Mesh()
111
112     if len(mesh.orphanNodes) > 0:
113         plotter = PyVista.Plot_Nodes(mesh, mesh.orphanNodes)
114         plotter.add_title("Orphan nodes detected")
115         plotter.show()
116

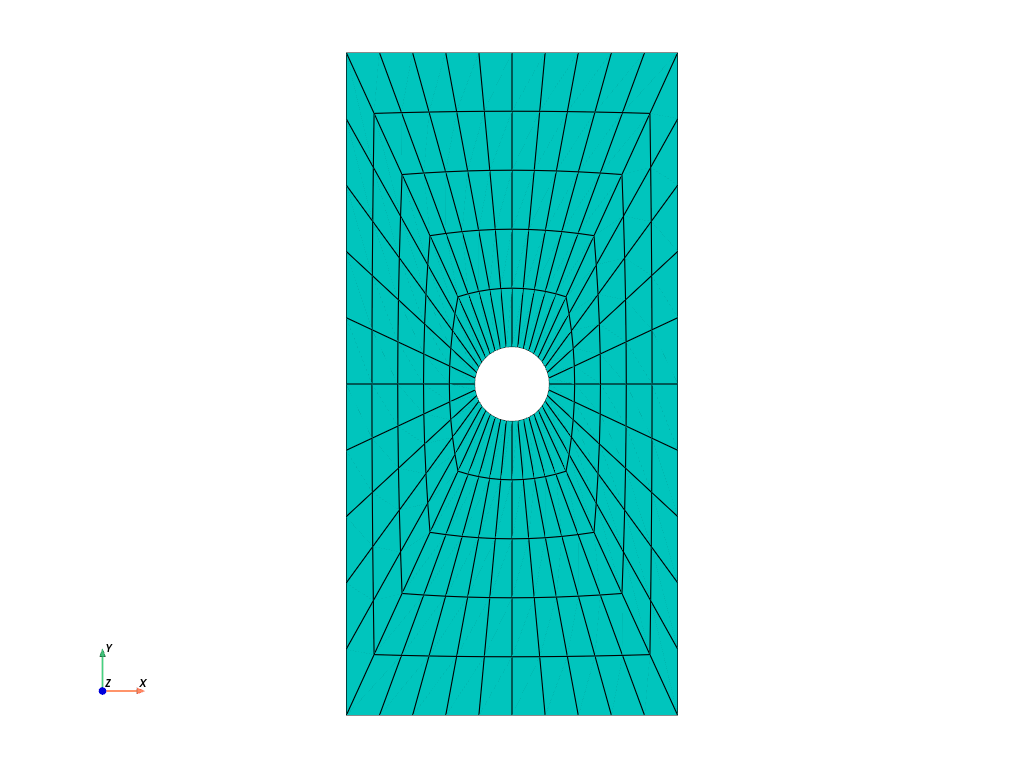

117     PyVista.Plot_Mesh(mesh).show()

Total running time of the script: (0 minutes 0.622 seconds)
