Elas8#

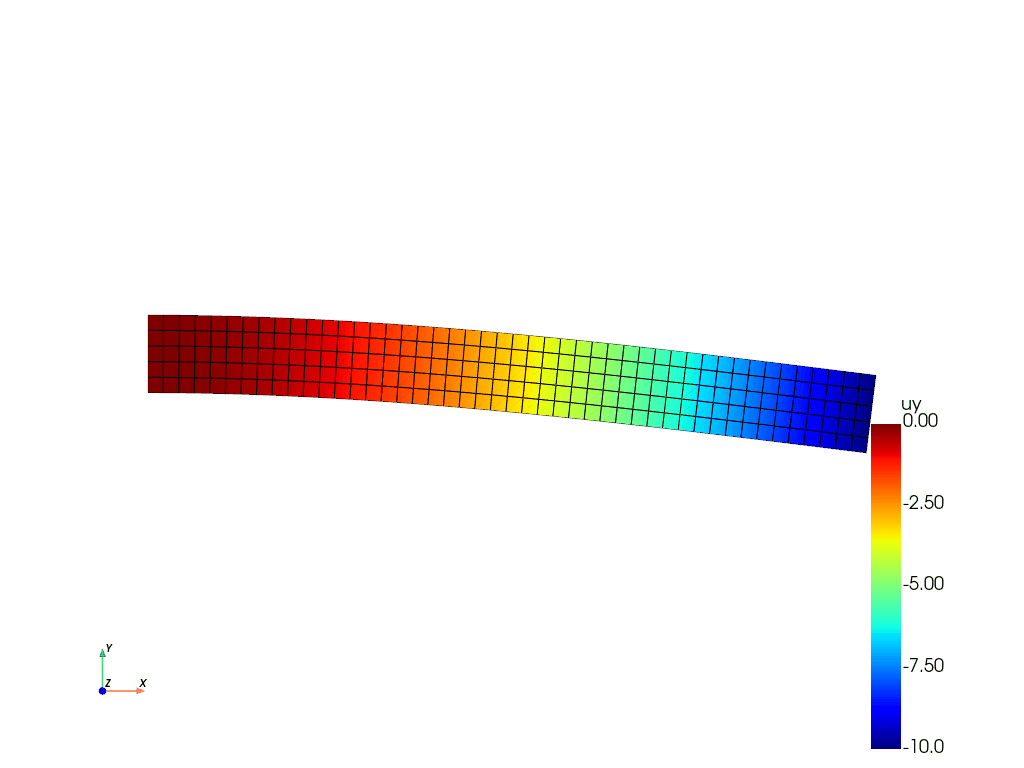

A cantilever beam undergoing dynamic bending deformation.
0.000 s
0.010 s
0.020 s
0.030 s
0.040 s
0.050 s
0.060 s
0.070 s
0.080 s
0.090 s
0.100 s
0.110 s
0.120 s
0.130 s
0.140 s
0.150 s
0.160 s
0.170 s
0.180 s
0.190 s
0.200 s
0.210 s
0.220 s
0.230 s
0.240 s
0.250 s
0.260 s
0.270 s
0.280 s
0.290 s
0.300 s
0.310 s
0.320 s
0.330 s
0.340 s
0.350 s
0.360 s
0.370 s
0.380 s
0.390 s
0.400 s
0.410 s
0.420 s
0.430 s
0.440 s
0.450 s
0.460 s
0.470 s
0.480 s
0.490 s
0.500 s
Generate movie 01/52 (1.92 %) 5.00 s
Generate movie 02/52 (3.85 %) 3.83 s
Generate movie 03/52 (5.77 %) 3.62 s
Generate movie 04/52 (7.69 %) 3.66 s
Generate movie 05/52 (9.62 %) 3.63 s
Generate movie 06/52 (11.54 %) 3.48 s
Generate movie 07/52 (13.46 %) 3.40 s
Generate movie 08/52 (15.38 %) 3.26 s
Generate movie 09/52 (17.31 %) 3.20 s
Generate movie 10/52 (19.23 %) 3.05 s
Generate movie 11/52 (21.15 %) 2.96 s
Generate movie 12/52 (23.08 %) 2.99 s
Generate movie 13/52 (25.00 %) 2.88 s
Generate movie 14/52 (26.92 %) 2.79 s
Generate movie 15/52 (28.85 %) 2.70 s
Generate movie 16/52 (30.77 %) 2.64 s
Generate movie 17/52 (32.69 %) 2.59 s
Generate movie 18/52 (34.62 %) 2.65 s
Generate movie 19/52 (36.54 %) 2.48 s
Generate movie 20/52 (38.46 %) 2.31 s
Generate movie 21/52 (40.38 %) 2.36 s
Generate movie 22/52 (42.31 %) 2.20 s
Generate movie 23/52 (44.23 %) 2.21 s
Generate movie 24/52 (46.15 %) 2.20 s
Generate movie 25/52 (48.08 %) 2.00 s
Generate movie 26/52 (50.00 %) 1.88 s
Generate movie 27/52 (51.92 %) 1.88 s
Generate movie 28/52 (53.85 %) 1.78 s
Generate movie 29/52 (55.77 %) 1.74 s
Generate movie 30/52 (57.69 %) 1.59 s
Generate movie 31/52 (59.62 %) 1.56 s
Generate movie 32/52 (61.54 %) 1.57 s
Generate movie 33/52 (63.46 %) 1.37 s
Generate movie 34/52 (65.38 %) 1.31 s
Generate movie 35/52 (67.31 %) 1.36 s
Generate movie 36/52 (69.23 %) 1.22 s
Generate movie 37/52 (71.15 %) 1.08 s
Generate movie 38/52 (73.08 %) 1.01 s
Generate movie 39/52 (75.00 %) 1.00 s
Generate movie 40/52 (76.92 %) 887.88 ms
Generate movie 41/52 (78.85 %) 844.12 ms
Generate movie 42/52 (80.77 %) 744.42 ms
Generate movie 43/52 (82.69 %) 656.94 ms
Generate movie 44/52 (84.62 %) 604.36 ms
Generate movie 45/52 (86.54 %) 510.70 ms
Generate movie 46/52 (88.46 %) 448.71 ms
Generate movie 47/52 (90.38 %) 373.78 ms
Generate movie 48/52 (92.31 %) 323.48 ms
Generate movie 49/52 (94.23 %) 219.72 ms
Generate movie 50/52 (96.15 %) 152.65 ms
Generate movie 51/52 (98.08 %) 78.33 ms
Generate movie 52/52 (100.00 %) 0.00 µs
==================== Mesh ====================
Element type: QUAD4
Ne = 230, Nn = 282
==================== Model ====================
Isotropic:
E = 2.10e+05, v = 0.3
planeStress = True
thickness = 1.30e+01
solver : scipy
============= Boundary Conditions =============
Unspecified.
=================== Results ===================
W def = 1.15
Svm max = 12.78
Evm max = 0.01 %
Ux max = 3.73e-03
Ux min = -3.73e-03
Uy max = 0.00e+00
Uy min = -5.04e-02
=================== TicTac ===================
Mesh : 6.160 ms
Boundary Conditions : 13.590 µs
Matrix : 4.816 ms
Solver : 121.066 ms
Display : 19.852 ms
PyVista_Interface : 6.253 s
PostProcessing : 535.965 µs
13 import matplotlib.pyplot as plt
14
15 from EasyFEA import Display, Folder, Models, ElemType, Simulations, PyVista, Paraview
16 from EasyFEA.Geoms import Domain
17
18 if __name__ == "__main__":
19 Display.Clear()
20
21 # ----------------------------------------------
22 # Configuration
23 # ----------------------------------------------
24 dim = 2
25
26 # outputs
27 folder = Folder.Results_Dir()
28 makeParaview = False
29 makeMovie = True
30 result = "uy"
31
32 # geom
33 L = 120 # mm
34 h = 13
35 b = 13
36
37 # time
38 Tmax = 0.5
39 N = 50
40 dt = Tmax / N
41 time = -dt
42
43 # Dumping
44 coefM = 1e-3
45 coefK = 1e-3
46
47 # ----------------------------------------------
48 # Mesh
49 # ----------------------------------------------
50 meshSize = h / 5
51
52 if dim == 2:
53 domain = Domain((0, -h / 2), (L, h / 2), meshSize)
54 mesh = domain.Mesh_2D([], ElemType.QUAD4, isOrganised=True)
55
56 area = mesh.area - L * h
57
58 elif dim == 3:
59 domain = Domain((0, -h / 2, -b / 2), (L, h / 2, -b / 2), meshSize=meshSize)
60 mesh = domain.Mesh_Extrude([], [0, 0, b], [3], ElemType.HEXA8, isOrganised=True)
61
62 volume = mesh.volume - L * b * h
63 area = mesh.area - (L * h * 4 + 2 * b * h)
64
65 nodes_0 = mesh.Nodes_Conditions(lambda x, y, z: x == 0)
66 nodes_L = mesh.Nodes_Conditions(lambda x, y, z: x == L)
67 nodes_h = mesh.Nodes_Conditions(lambda x, y, z: y == h / 2)
68
69 # ----------------------------------------------
70 # Simulation
71 # ----------------------------------------------
72
73 material = Models.Elastic.Isotropic(dim, thickness=b)
74 simu = Simulations.Elastic(mesh, material)
75 simu.rho = 8100 * 1e-9
76
77 # static simulation
78 simu.Bc_Init()
79 simu.add_dirichlet(nodes_0, [0] * dim, simu.Get_unknowns(), description="Fixed")
80 simu.add_dirichlet(nodes_L, [-10], ["y"], description="dep")
81 simu.Solve()
82 simu.Save_Iter()

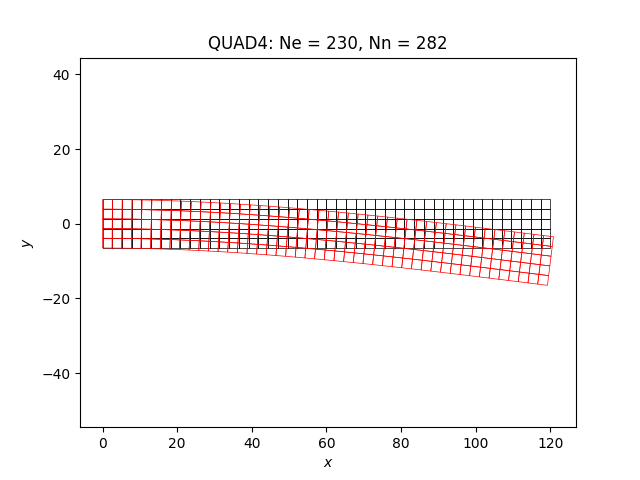

83 Display.Plot_Mesh(simu, deformFactor=1)
84
85 # dynamic simulation
86 simu.Solver_Set_Hyperbolic_Algorithm(dt)
87 simu.Set_Rayleigh_Damping_Coefs(coefM=coefM, coefK=coefK)
88
89 simu.Bc_Init()
90 simu.add_dirichlet(nodes_0, [0] * dim, simu.Get_unknowns(), description="Fixed")
91
92 while time <= Tmax:
93 time += dt
94
95 simu.Solve()
96 simu.Save_Iter()
97
98 print(f"{time:.3f} s", end="\r")
99
100 # ----------------------------------------------
101 # Results
102 # ----------------------------------------------
103

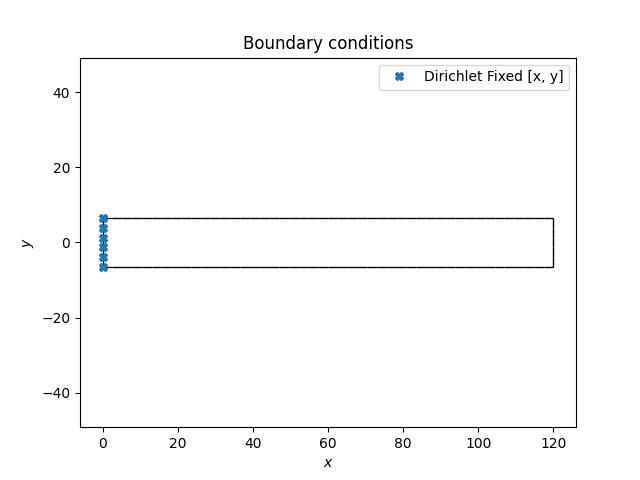

104 Display.Plot_BoundaryConditions(simu)
105
106 if makeParaview:
107 Paraview.Save_simu(simu, folder)
108
109 if makeMovie:
110 PyVista.Movie_simu(
111 simu,
112 f"{result}",
113 folder,
114 f"{result}.gif",
115 deformFactor=1,
116 plotMesh=True,
117 )
118
119 print(simu)

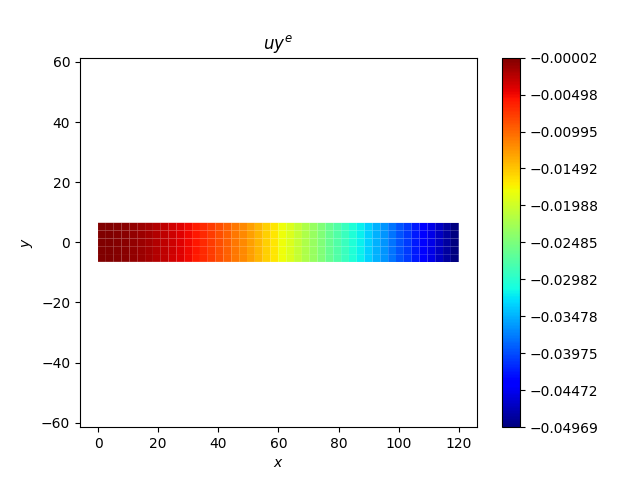

120 Display.Plot_Result(simu, f"{result}", deformFactor=1, nodeValues=False)

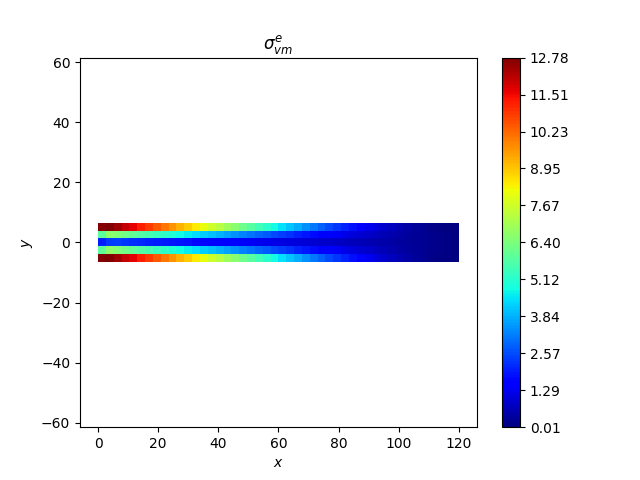

121 Display.Plot_Result(simu, "Svm", plotMesh=False, nodeValues=False)
122
123 plt.show()
Total running time of the script: (0 minutes 7.612 seconds)
