Hyperelas3#

A L shape part undergoing bending deformation.

Hyperelas3
Hyperelas3
Hyperelas3
Hyperelas3
===== hyperelastic problem at iteration 0 =====
At Newton iteration 1 norm is 6.497862896539e+06
At Newton iteration 2 norm is 2.358952920613e+08
At Newton iteration 3 norm is 2.055017619686e+07
At Newton iteration 4 norm is 1.847687094048e+06
At Newton iteration 5 norm is 7.842704053203e+05
At Newton iteration 6 norm is 4.044220405259e+03
At Newton iteration 7 norm is 2.745963073942e+00
At Newton iteration 8 norm is 1.247175864676e-06


==================== Mesh ====================

Element type: PRISM6
Ne = 2370, Nn = 1744

==================== Model ====================

<EasyFEA.Models.HyperElastic._laws.SaintVenantKirchhoff object at 0x7f4414d9e150>

solver : scipy

============= Boundary Conditions =============

Unspecified.

=================== Results ===================

Unspecified.

=================== TicTac ===================

Mesh : 57.802 ms
Boundary Conditions : 16.212 µs
Matrix : 777.121 ms
Solver : 1.091 s
Resolution hyperelastic : 1.901 s
PyVista_Interface : 165.206 ms


13 from EasyFEA import Display, Models, ElemType, Simulations, PyVista
14 from EasyFEA.Geoms import Point, Points
15
16 if __name__ == "__main__":
17     Display.Clear()
18
19     # ----------------------------------------------
20     # Configuration
21     # ----------------------------------------------
22     dim = 3
23
24     # geom
25     L = 250
26     thickness = 50
27     w = 50
28
29     # load
30     sigMax = 8 * 1e6 / (w * thickness)
31
32     # ----------------------------------------------
33     # Mesh
34     # ----------------------------------------------
35     meshSize = L / 10
36
37     p1 = Point(0, 0)
38     p2 = Point(L, 0)
39     p3 = Point(L, L, r=50)
40     p4 = Point(2 * L - w, L)
41     p5 = Point(2 * L, L)
42     p6 = Point(2 * L, 2 * L)
43     p7 = Point(2 * L - w, 2 * L)
44     p8 = Point(0, 2 * L)
45
46     contour = Points([p1, p2, p3, p4, p5, p6, p7, p8], meshSize)
47
48     if dim == 2:
49         mesh = contour.Mesh_2D([], ElemType.TRI3)
50     else:
51         mesh = contour.Mesh_Extrude([], [0, 0, -thickness], [3], ElemType.PRISM6)
52
53     nodes_y0 = mesh.Nodes_Conditions(lambda x, y, z: y == 0)
54     nodes_Load = mesh.Nodes_Conditions(lambda x, y, z: x == 2 * L)
55
56     # ----------------------------------------------
57     # Simulation
58     # ----------------------------------------------
59     elas = Models.Elastic.Isotropic(dim, E=210000, v=0.25, planeStress=True)
60     material = Models.HyperElastic.SaintVenantKirchhoff(
61         dim, elas.get_lambda(), elas.get_mu(), thickness=thickness
62     )
63
64     simu = Simulations.HyperElastic(mesh, material)
65
66     simu.add_dirichlet(nodes_y0, [0] * dim, simu.Get_unknowns())
67     simu.add_surfLoad(nodes_Load, [sigMax], ["y"])
68
69     simu.Solve()
70
71     # ----------------------------------------------
72     # Results
73     # ----------------------------------------------
74

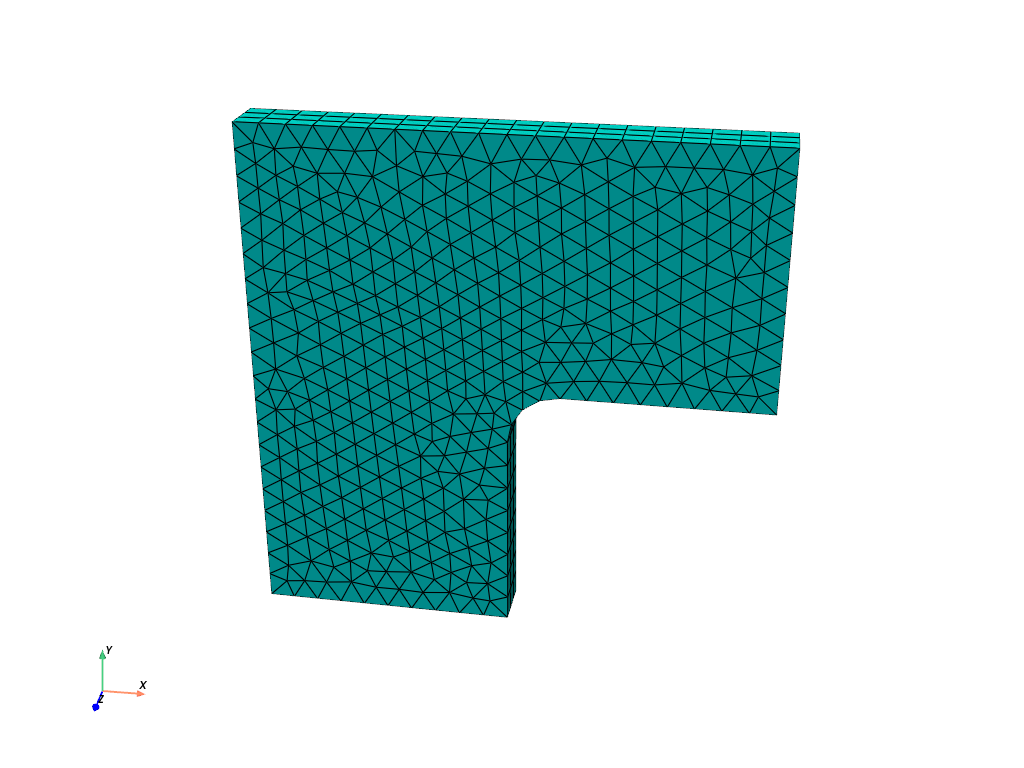

75     PyVista.Plot_Mesh(simu).show()

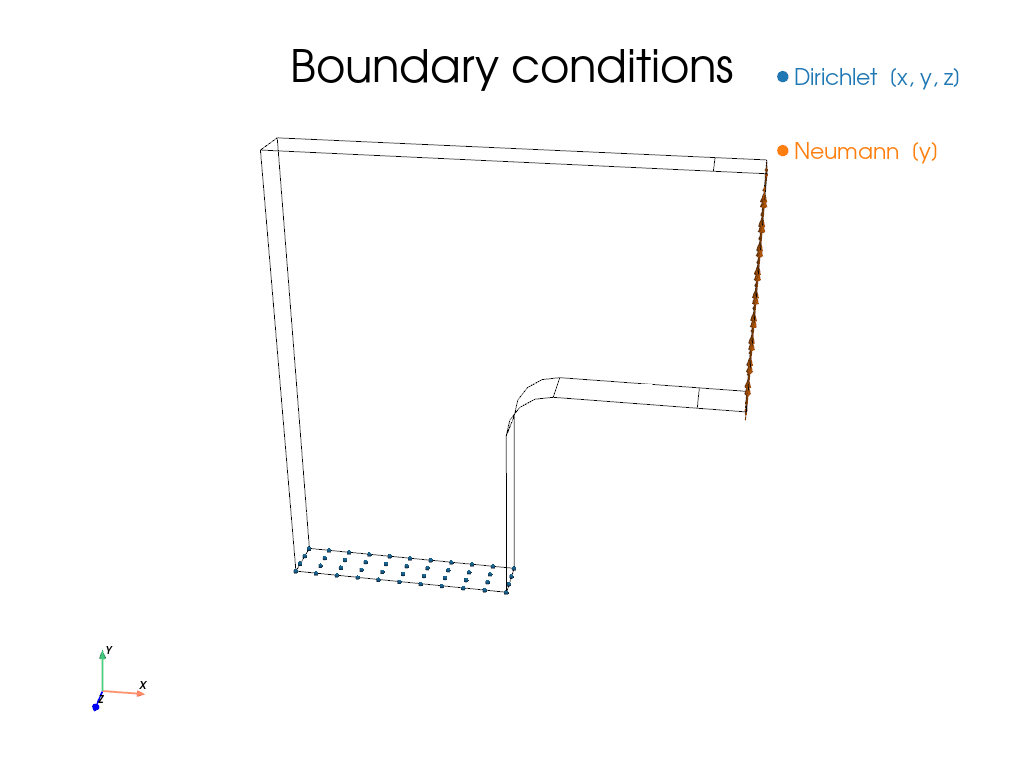

76     PyVista.Plot_BoundaryConditions(simu).show()

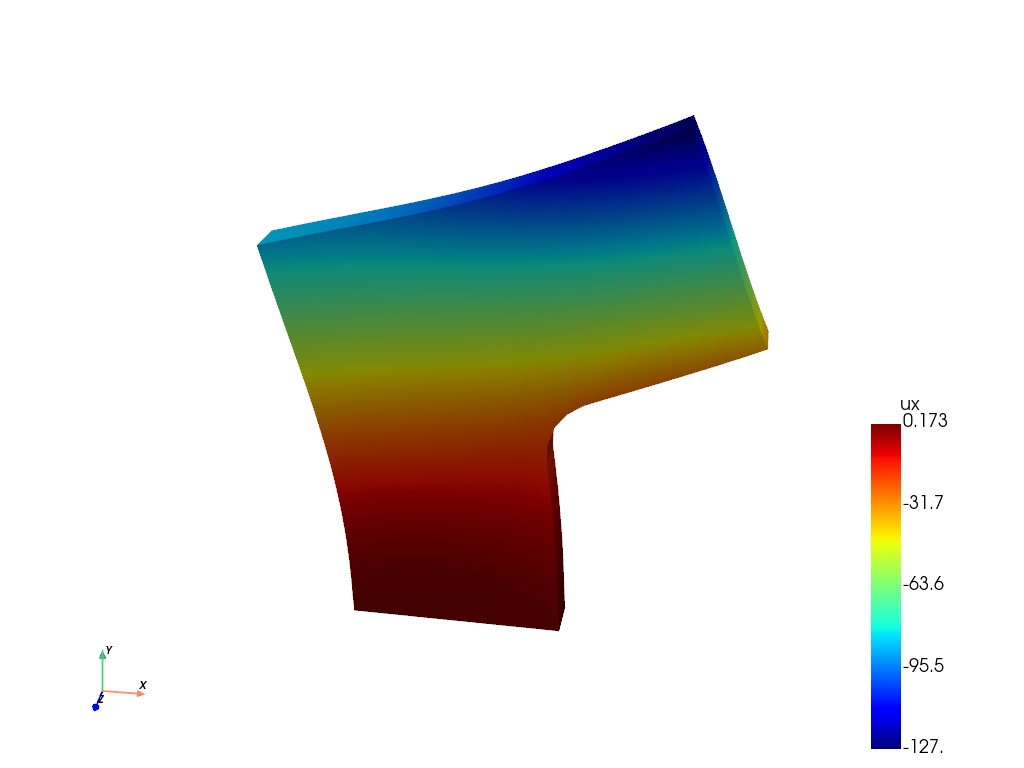

77     PyVista.Plot(simu, "ux", deformFactor=1).show()

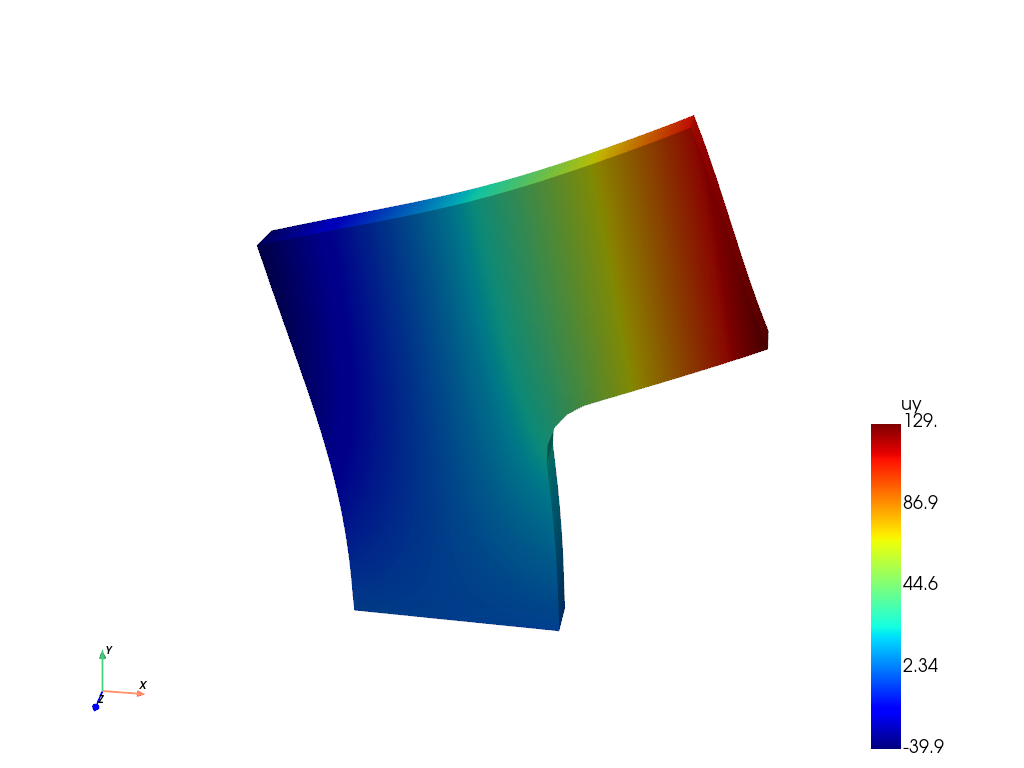

78     PyVista.Plot(simu, "uy", deformFactor=1).show()
79
80     print(simu)

Total running time of the script: (0 minutes 2.683 seconds)
