Beginner’s Guide

Like any Python script, you should start by importing the core modules from the EasyFEA package:

from EasyFEA import Display, ElemType, Models, Simulations
from EasyFEA.Geoms import Domain

---

The most commonly used modules in EasyFEA are:

Display	Module containing functions used to display simulations and meshes with matplotlib (https://matplotlib.org/).
ElemType(value)	Implemented Lagrange isoparametric element types.
Models	Module implementing constitutive laws used in simulations.
Simulations	This module contains all available simulation classes.
Geoms	Module containing the geometric functions used to build meshes.

Let’s now create a 2D Mesh using a simple rectangular domain:

# ----------------------------------------------
# Mesh
# ----------------------------------------------
L = 120  # mm
h = 13

domain = Domain((0, 0), (L, h), h / 3)
mesh = domain.Mesh_2D([], ElemType.QUAD9, isOrganised=True)

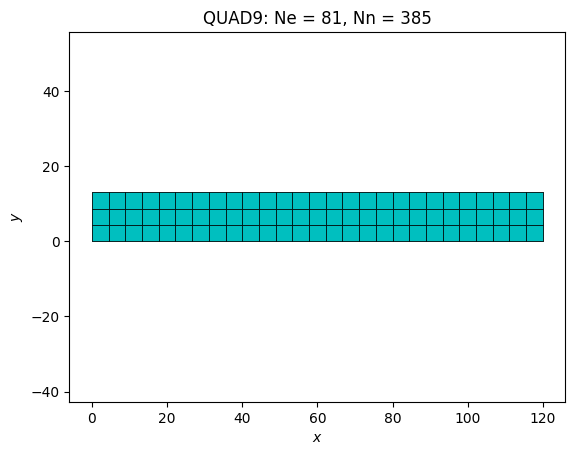

Display.Plot_Mesh(mesh)

<Axes: title={'center': 'QUAD9: Ne = 81, Nn = 385'}, xlabel='$x$', ylabel='$y$'>

---

Next, define a linear Isotropic material and set up the Elastic simulation:

# ----------------------------------------------
# Simulation
# ----------------------------------------------
E = 210000  # MPa
v = 0.3
F = -800  # N

mat = Models.Elastic.Isotropic(2, E, v, planeStress=True, thickness=h)

simu = Simulations.Elastic(mesh, mat)

---

Once the simulation has been set up, defining the boundary conditions, solving the problem and visualizing the results is straightforward.

nodesX0 = mesh.Nodes_Conditions(lambda x, y, z: x == 0)
nodesXL = mesh.Nodes_Conditions(lambda x, y, z: x == L)

simu.add_dirichlet(nodesX0, [0, 0], ["x", "y"])
simu.add_surfLoad(nodesXL, [F / h / h], ["y"])

simu.Solve()

# ----------------------------------------------
# Results
# ----------------------------------------------

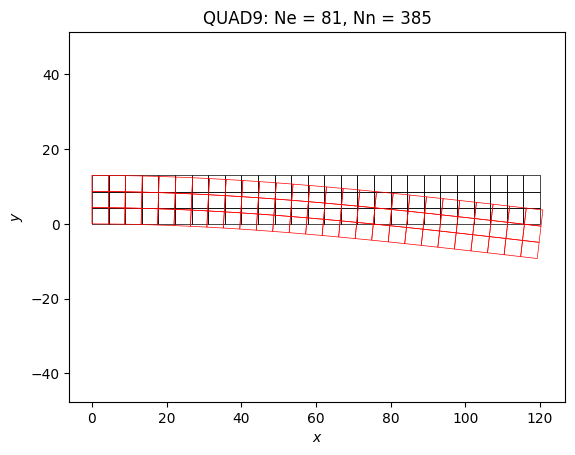

Display.Plot_Mesh(simu, deformFactor=10)

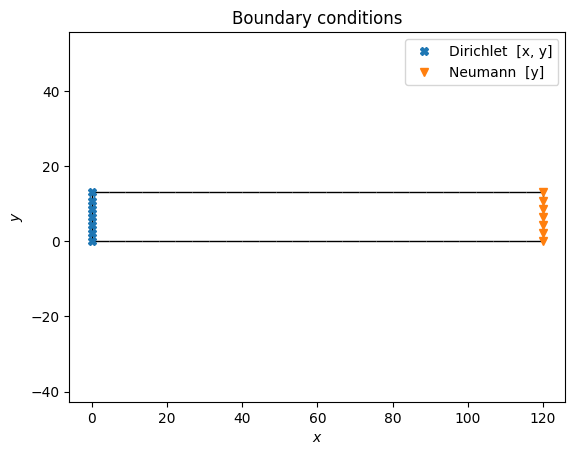

Display.Plot_BoundaryConditions(simu)

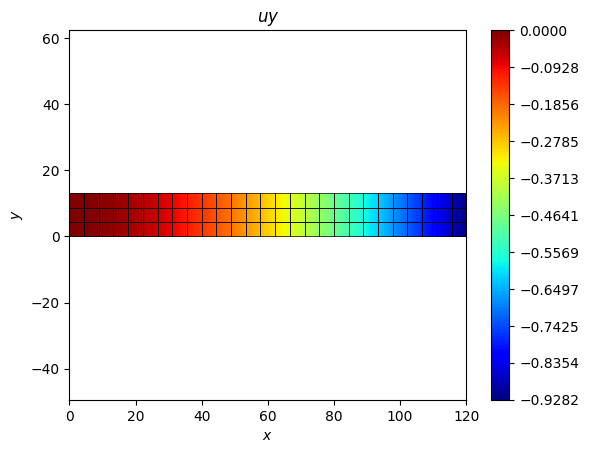

Display.Plot_Result(simu, "uy", plotMesh=True)

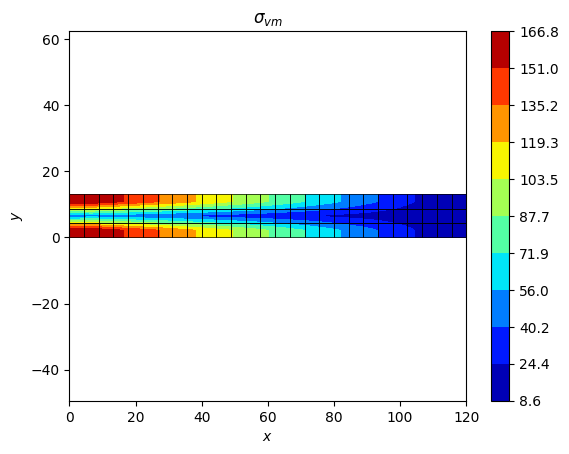

Display.Plot_Result(simu, "Svm", plotMesh=True, ncolors=11)

<Axes: title={'center': '$\\sigma_{vm}$'}, xlabel='$x$', ylabel='$y$'>

---

This script is available in the HelloWorld example.

For additional details, please refer to either the EasyFEA API documentation or the comprehensive collection of examples.
