HyperElastic0

Attempt to implement hyperelasticity within an Eulerian framework.

Mesh node coordinates are updated at each loading iteration. WARNING: Implementation not validated.

•
•
•
•
•
•

5.00 %
10.00 %
15.00 %
20.00 %
25.00 %
30.00 %
35.00 %
40.00 %
45.00 %
50.00 %
55.00 %
60.00 %
65.00 %
70.00 %
75.00 %
80.00 %
85.00 %
90.00 %
95.00 %
100.00 %

==================== Mesh ====================

Element type: TRI6
Ne = 790, Nn = 1661, dof = 3322

==================== Model ====================

ElasIsot:
E = 2.10e+05, v = 0.25
planeStress = True
thickness = 5.00e+01

solver : pypardiso

============= Boundary Conditions =============

Unspecified.

=================== Results ===================


W def = 22730944.66

Svm max = 3415.39

Evm max = 1.83 %

Ux max = 1.44e-02
Ux min = -1.58e+01

Uy max = 1.35e+01
Uy min = -5.23e+00

=================== TicTac ===================

Mesh : 2.274 s
Boundary Conditions : 1.410 ms
Matrix : 6.971 s
Solver : 8.101 s
Display : 1.502 s
PostProcessing : 474.282 ms
PyVista_Interface : 31.472 s
Paraview : 818.816 ms

from EasyFEA import Display, Folder, Models, ElemType, Simulations, Paraview
from EasyFEA.Geoms import Point, Points

if __name__ == "__main__":
    Display.Clear()

    # ----------------------------------------------
    # Configuration
    # ----------------------------------------------
    dim = 2

    # outputs
    folder = Folder.Join(Folder.RESULTS_DIR, "HyperElastic", "HyperElastic0")
    makeParaview = False
    useHyperElastic = True  # eulerian approch

    # geom
    L = 250
    thickness = 50
    w = 50

    # load
    sigMax = 8 * 1e5 / (w * thickness)
    uMax = 50

    # ----------------------------------------------
    # Mesh
    # ----------------------------------------------
    meshSize = L / 10

    p1 = Point(0, 0)
    p2 = Point(L, 0)
    p3 = Point(L, L, r=50)
    p4 = Point(2 * L - w, L)
    p5 = Point(2 * L, L)
    p6 = Point(2 * L, 2 * L)
    p7 = Point(2 * L - w, 2 * L)
    p8 = Point(0, 2 * L)

    contour = Points([p1, p2, p3, p4, p5, p6, p7, p8], meshSize)

    if dim == 2:
        mesh = contour.Mesh_2D([], ElemType.TRI6)
    else:
        mesh = contour.Mesh_Extrude([], [0, 0, -thickness], [3], ElemType.PRISM6)

    nodes_y0 = mesh.Nodes_Conditions(lambda x, y, z: y == 0)
    nodes_Load = mesh.Nodes_Conditions(lambda x, y, z: x == 2 * L)

    # ----------------------------------------------
    # Simulation
    # ----------------------------------------------
    material = Models.ElasIsot(
        dim, E=210000, v=0.25, planeStress=True, thickness=thickness
    )

    simu = Simulations.ElasticSimu(mesh, material)

    N = 20
    iter = 0

    while iter < N:
        iter += 1

        print(f"{iter / N * 100:2.2f} %", end="\r")

        simu.Bc_Init()
        simu.add_dirichlet(nodes_y0, [0] * dim, simu.Get_unknowns())
        # simu.add_dirichlet(nodes_Load, [uMax*iter/N], ['y'])
        simu.add_surfLoad(nodes_Load, [sigMax * iter / N], ["y"])

        simu.Solve()

        simu.Save_Iter()

        if useHyperElastic and iter != N:
            # update the nodes coordinates

            newMesh = simu.mesh.copy()
            newMesh.coordGlob += simu.Results_displacement_matrix()

            simu.mesh = newMesh

            pass

    # ----------------------------------------------
    # Results
    # ----------------------------------------------

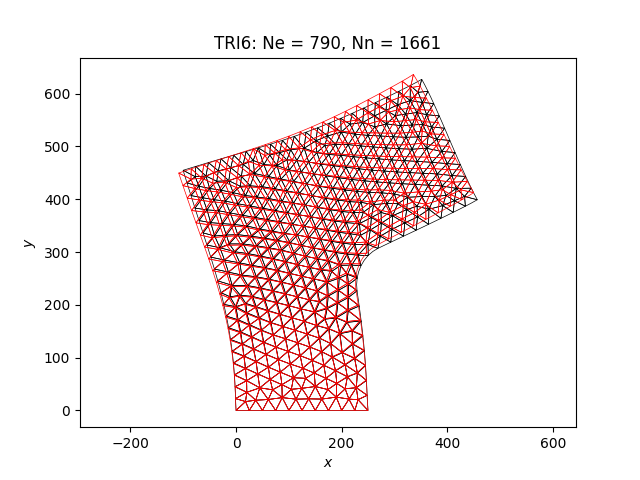

    Display.Plot_Mesh(simu, deformFactor=1)

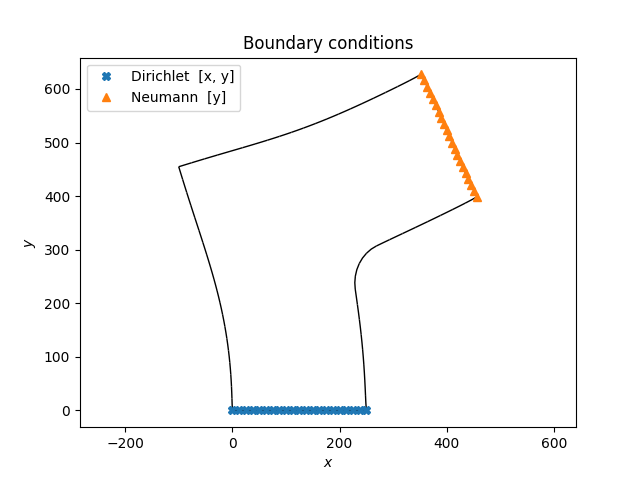

    Display.Plot_BoundaryConditions(simu)

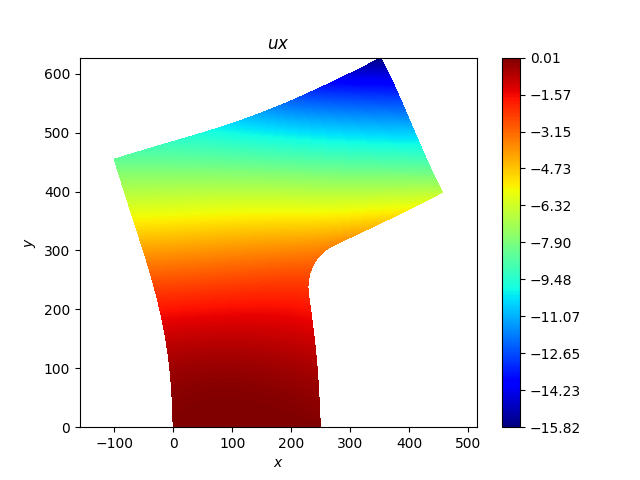

    Display.Plot_Result(simu, "ux")

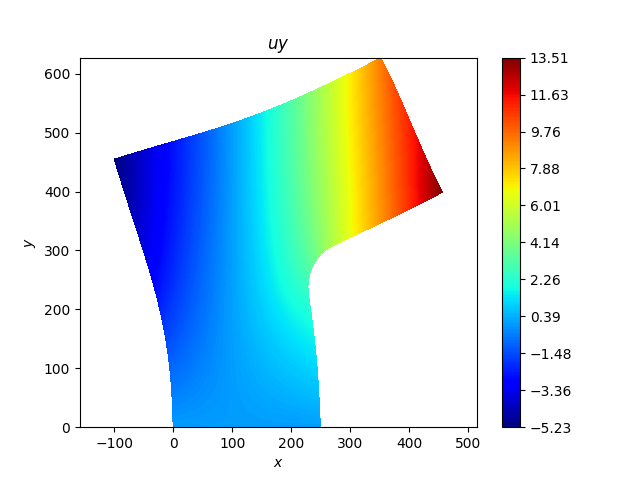

    Display.Plot_Result(simu, "uy")
    Display.Plot_Result(simu, "Svm", nodeValues=False)

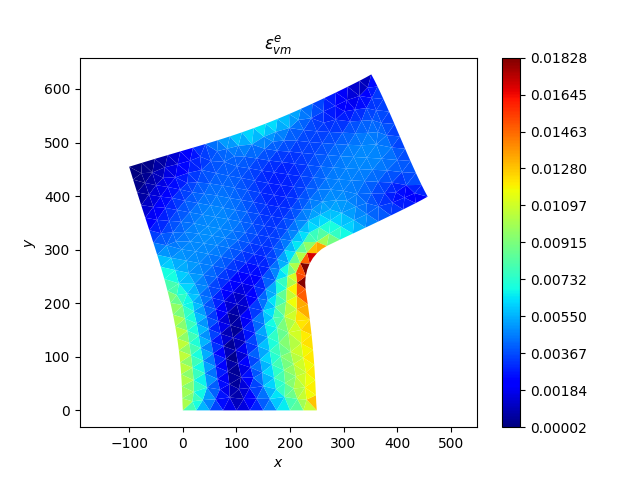

    Display.Plot_Result(simu, "Evm", nodeValues=False)

    print(simu)

    if makeParaview:
        Paraview.Save_simu(simu, folder, elementFields=["Strain"])

    Display.plt.show()
